| Brand Name: | ACEY |
| Model Number: | ACEY-AC300 |
| MOQ: | 1 Set |
| Price: | USD 9480~9878/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

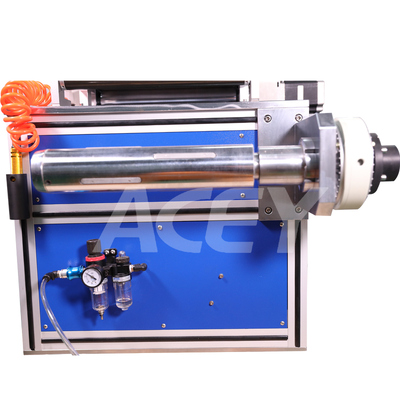

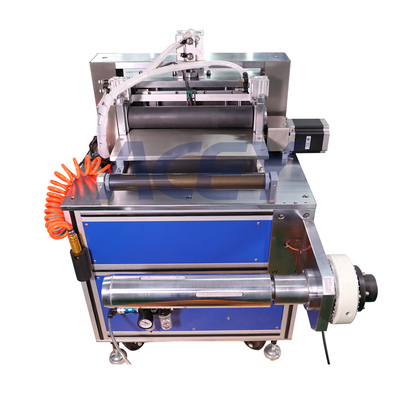

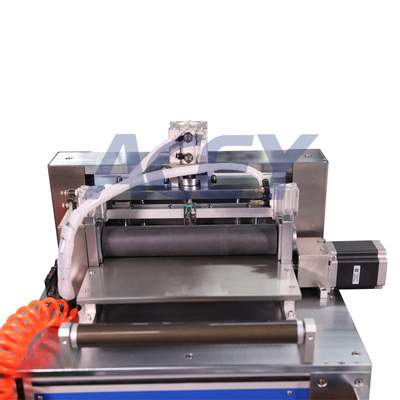

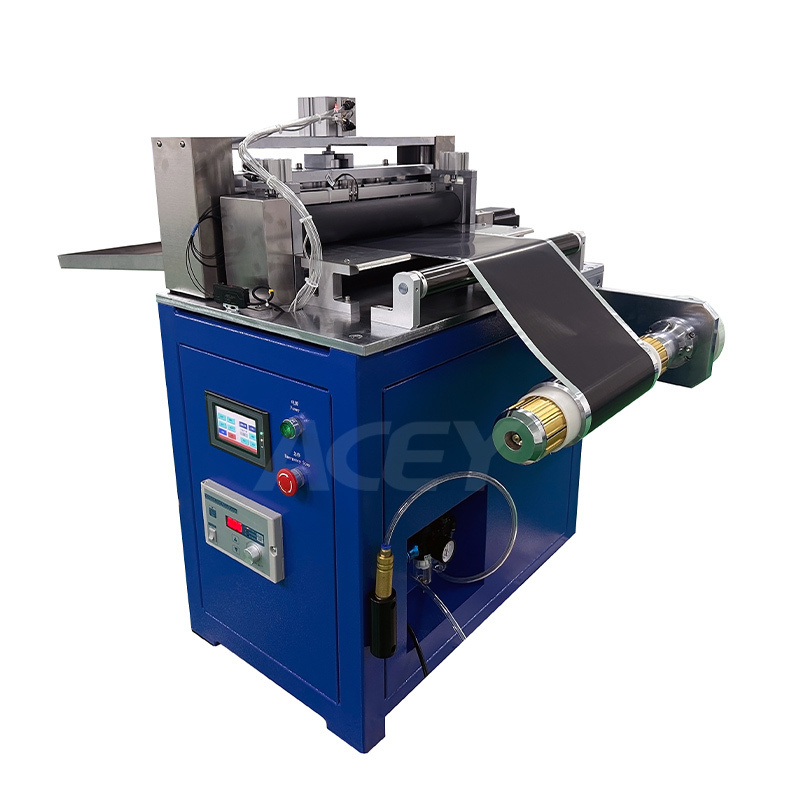

The ACEY-AC300 Automatic Cross Cutting Machine is designed for precise cutting of lithium battery electrode sheets. It ensures high cutting accuracy, stable operation, and efficient production performance. Equipped with an advanced control system and durable mechanical structure, the machine delivers clean edges and consistent dimensions, improving overall battery quality.
| Unwinding System | The unwinding air shaft is fixed, and the unwinding tension uses automatic unwinding and constant tension |
|---|---|
| Fixed Length Cutting Speed | 5~250mm/s |
| Chasing Color Cutting Speed | 5~150mm/s |
| Unwinding Diameter (Max) | 250mm |
| Burr Condition | ≤25um |
| Power Supply | 220V/50Hz |
| Power | 1.2KW |
| Compressed Air | 0.5Mpa~0.8 Mpa |
| Scope of Application | Width 300mm, length 1~9999 mm cutting |
| Cutting Accuracy | The fixed length uses the servo system and the color mark sensor to track the fixed length, high accuracy, and the cutting accuracy within the adjustable range is ± 0.3mm |
| Equipment Dimensions | L710mm*W710mm*H1000mm (the length of the guide plate is 800 and the total length is 1500mm) |
| Weight | Approximately 240kg |
