Fast Speed High Efficiency Vertical Planetary Grinding Machine

Name: Fast Speed High Efficiency Vertical Planetary Grinding Machine
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-VPM-2L
Price: 2,399.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-VPM-2L
MOQ:	1 Set
Price:	USD 2350~2449/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Compatible Grinding Jars:

2L: (250ml~500ml) * 4 / 4L:(500ml~1000ml) * 4

Max Feeding Capacity:

2/3 Capacity Of The Grinding Jar

Roll Placement:

Vertical Placement

Sample Type:

Hard, Medium-hard, Soft, Fibrous, Brittle, Moist

Dimensions:

720mm*468mm*535mm

Equipment Weight:

75kg-120KG

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Highlight:

vertical planetary grinding machine

high efficiency grinding machine

cylindrical cell assembly machine

Product Description

Fast Speed High Efficiency Vertical Planetary Grinding Machine

The ACEY-VPM-2L Planetary Ball Mill performs dry grinding, suspension grinding, or grinding in inert gas. Beyond comminution, this versatile machine handles mixing and homogenizing of emulsions and pastes, as well as mechanical alloying and activation in material research. With compact design, comprehensive functionality, high efficiency, and low noise operation, it's the ideal equipment for research sampling in institutes, universities, and enterprise laboratories—processing four samples simultaneously. When paired with vacuum ball milling tanks, it enables grinding under vacuum conditions. Applications span Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry Medicine, and Environmental Protection.

Key Features

Elegant design with easy operation
Ideal for both wet and dry grinding applications
Automatic programmable control with LED display
Multiple grinding mode selections
High uniformity and excellent repeatability
Fast rotational speed for high efficiency and fine granularity
Process four different samples simultaneously
Programmable interval and pause timing
Stepless speed regulation with reversing function
Wide range of compatible grinding tool materials
Gear-drive system eliminates belt-drive issues
Low center of gravity, robust construction, compact design, quiet operation
Built-in fan cooling for extended grinding sessions

Technical Specifications

Working Principle	Impact and friction force
Compatible Grinding Jars	2L: (250ml~500ml) * 4 / 4L: (500ml~1000ml) * 4
Max Feeding Capacity	2/3 capacity of grinding jar
Operation Mode	2 or 4 grinding jars working simultaneously
Max Feeding Granularity	15mm
Mini Discharging Granularity	Down to 0.1μm
Sample Type	Hard, medium-hard, soft, fibrous, brittle, moist
Rotational Speed of Grinding Jar	800rpm
Rotational Speed Ratio	1:2
Drive Mode	Gear drive and belt drive
Speed Control	Stepless speed regulation
Electrical Details	110V/220VAC, 50/60 Hz, 0.75KW
Max Continuous Grinding Time	72 hours (full-load)
Weight (Net/Gross)	2L: 75kg/110kg, 4L: 80kg/120kg
Dimension (LWH)	720mm * 468mm * 535mm
Size of Planetary Disk	Dia340mm * T6mm
Noise Level	<70dB

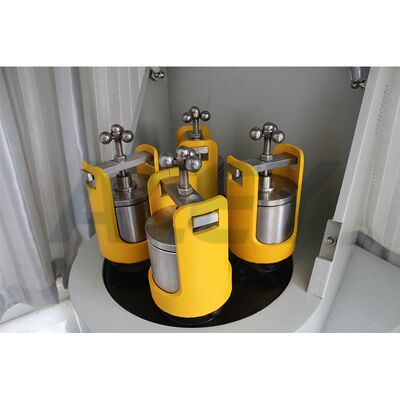

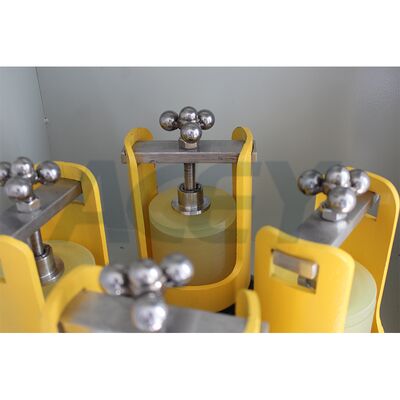

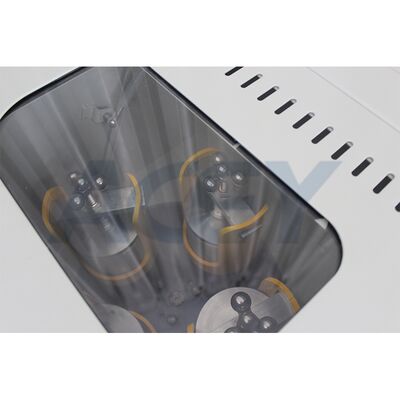

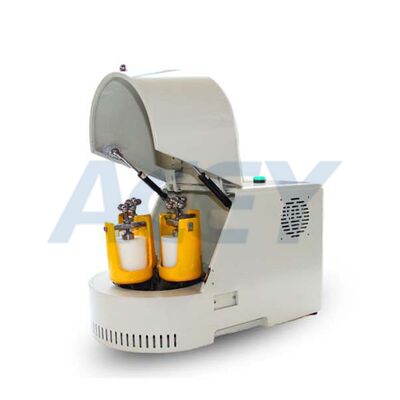

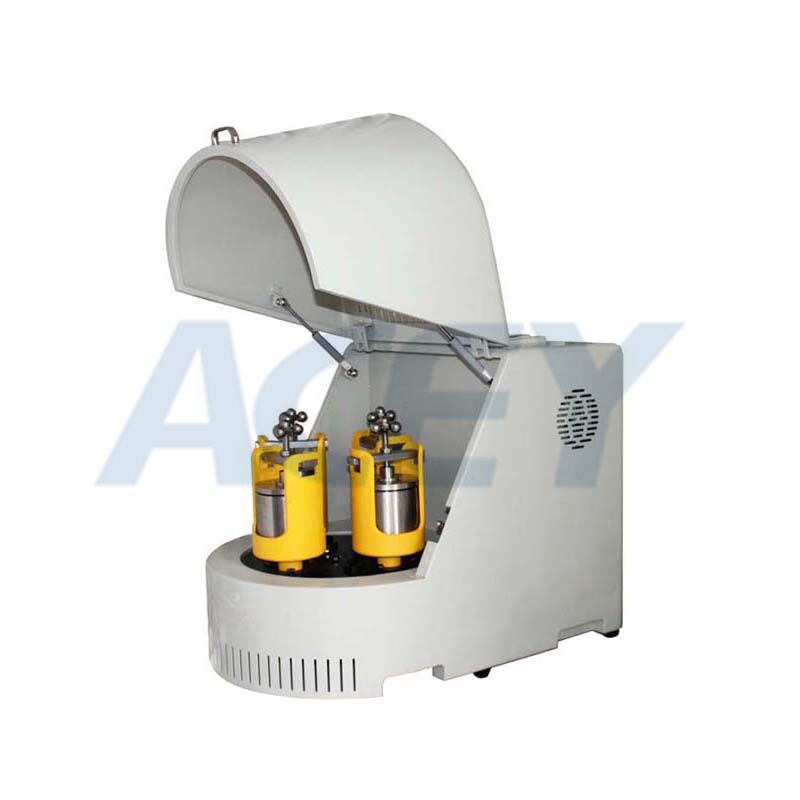

Product Visualization
