| Brand Name: | ACEY |
| Model Number: | ACEY-HFC260 |
| MOQ: | 1 Set |
| Price: | USD 3200~3334/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 500 Sets/Month |

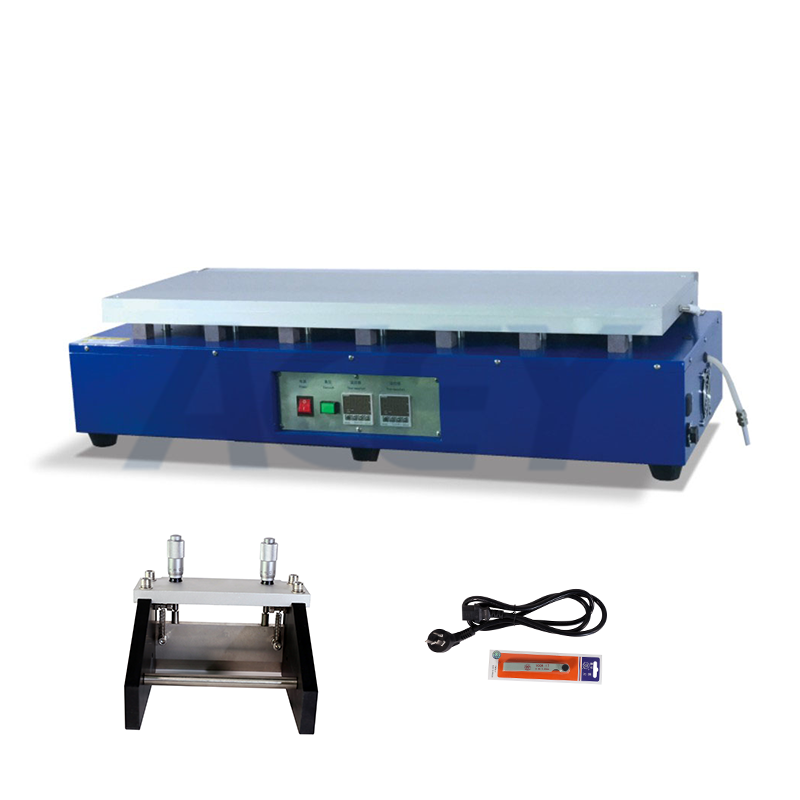

Small Vacuum Heating Cylindrical Battery Film Coating Machine
Product Description
ACEY-HFC260 film coating machine is dedicated to the continuous coating process of cathode and anode electrode of lithium ion batteries, suitable for small-scale experiments in colleges and enterprises.
Features
*Drying heating, digital display temperature control, working temperature 130℃;
*Digital display timer, drying time can be set freely;
*The coating speed is adjustable within the range of 0～120mm/sec (lithium iron phosphate slurry);
*Vacuum aluminum plate, can quickly place or remove the substrate;
*The stroke can be adjusted by the stroke switch between 0～250mm;
*With a scraper for adjusting the thickness of the coating film (precision 0.01mm);
*Small size, can save space;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*The stroke can be adjusted by the stroke switch between 0～250mm;
*Includes 1 oil-free vacuum pump;
Specification
| Film coating speed: | 0～120mm/sec (lithium iron phosphate paste); | ||||||
| Vacuum plate: | aluminum plate with vacuum; | ||||||
| Vacuum plate size: | L365mm×W200mm×H32mm; | ||||||
| Scraper adjustable range: | 0～3.5mm; | ||||||
| Heating drying system: | room temperature～130℃, digital display temperature controller, accuracy ± 1℃ | ||||||
| Power supply: | 220V/50Hz; | ||||||
| Weight: | 49KG; | ||||||
| Dimensions: | L505mm×W355mm×H325mm | ||||||
