Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells

Name: Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-GM-1
Price: 3,022.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-GM-1
MOQ:	1 Set
Price:	USD 2960~3084/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Power Supply:

220V/50Hz

Power:

140W

Roll Groove Depth:

1.2～2.0mm (adjustable)

Rolling Groove Width:

1.1～1.5mm

Dimensions:

820mm X 255mm X 510mm

Weight:

About 25KG

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Highlight:

semi automatic battery grooving machine

18650 21700 cell grooving machine

cylindrical battery case grooving equipment

Product Description

Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells

The ACEY-GM-1 battery grooving machine is designed for uniform and automated grooving of cylindrical steel cases (or aluminum capacitor cases) that contain batteries. By changing the grooving dies, the machine can be adapted to produce cylindrical cells in various specifications.

Key Features

Adjustable rolling groove size with high precision and stable dimensional consistency
Capable of processing various types of rolling grooves for cylindrical batteries
Compact size with exquisite appearance and easy operation
Suitable for rolling grooves of various steel-shell cylindrical batteries (18650, 26650, 21700)
Also suitable for rolling grooves of aluminum-shell capacitors with diameter within Φ30

Technical Specifications

Roll groove depth	1.2～2.0mm (adjustable)
Rolling groove width	1.1～1.5mm (according to the thickness of the hob)
Processing accuracy	±0.1mm
Hob life	> 1 million times
Capacity	Semi-automatic 400 EA/H
Configuration power supply	220v/50Hz
Power	140W
Compressed air	0.5MPa～0.7MPa
Dimensions	820mm X 255mm X 510mm
Weight	80kg

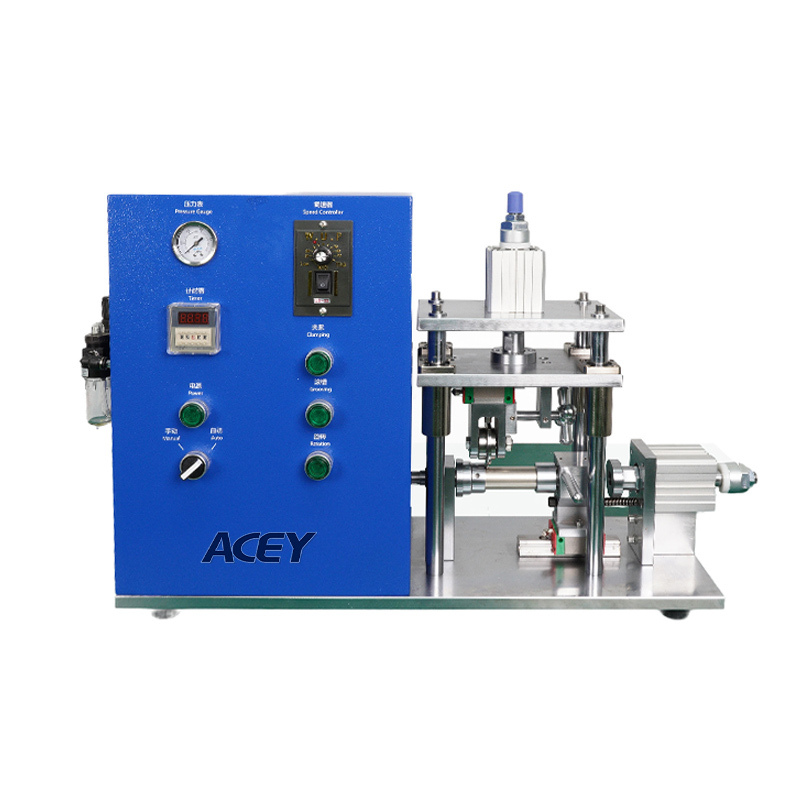

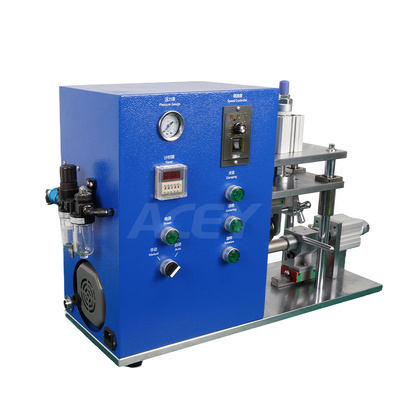

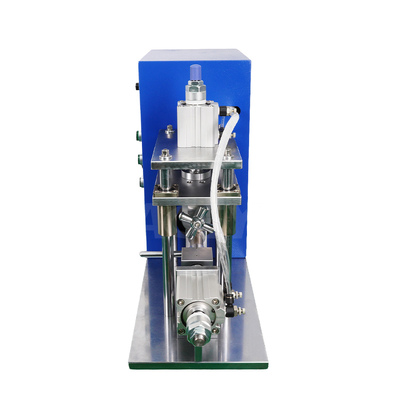

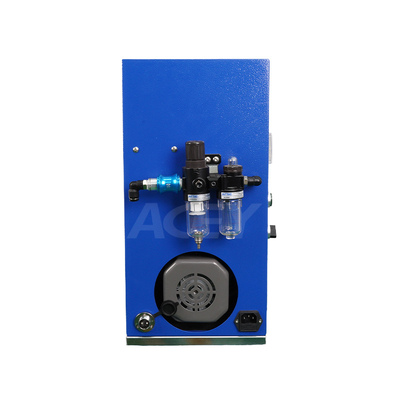

Product Display
