500ML Laboratory Lithium Battery Filtration Device Slurry Filter For Pouch Cell Assembly

Name: 500ML Laboratory Lithium Battery Filtration Device Slurry Filter For Pouch Cell Assembly
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-SF-1-500ML
Price: 694.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-SF-1-500ML
MOQ:	1 Set
Price:	USD 680~709/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Capacity:

500ml

With Filter:

80, 100, 150 Mesh Filter

Power Adapter:

AC 220V±10% 50HZ

Absolute Vacuum:

65KPa

Air Pump Flow:

3L/Min

Filter Dimensions:

145mm×150mm×200mm

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Highlight:

500ml lithium battery slurry filter

pouch cell assembly filtration device

laboratory battery slurry filter device

Product Description

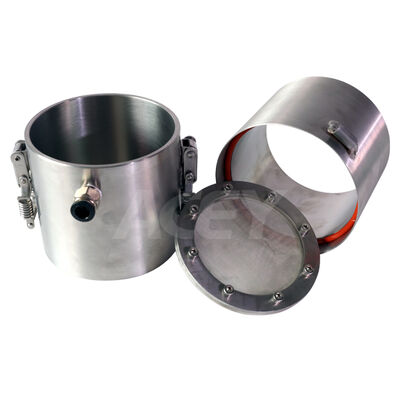

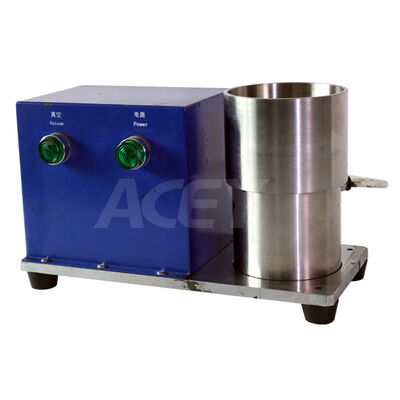

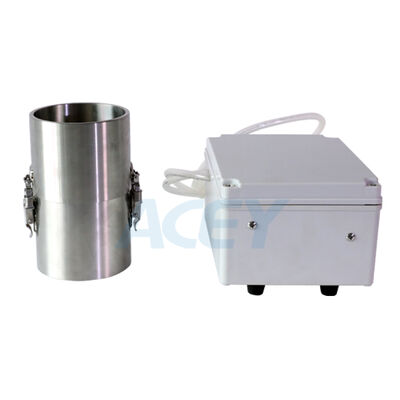

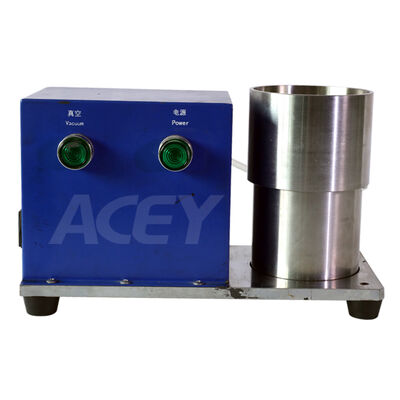

500ML Laboratory Lithium Battery Filtration Device

Specialized slurry filter for pouch cell assembly applications in laboratory battery research and development.

Product Overview

ACEY-SF-1-500ML filtration device is engineered for laboratory battery slurry applications, effectively removing hard particles of 124 microns or larger from slurry samples. Features an aesthetically pleasing design with flexible and user-friendly operation.

Key Features

High filtration accuracy up to 124 microns, equipped with two types of particle filters for positive and negative electrode materials
All SUS304 stainless steel construction for excellent corrosion resistance and easy cleaning
Large filter screen area minimizes pressure loss and ensures equipment durability
Compact size with convenient operation
Beautiful appearance with easy maintenance and molding advantages

Technical Specifications

Filter dimensions	145mm * 150mm * 200mm
Overall dimensions of air generator	140mm * 70mm * 150mm
Weight	4Kg
Power adapter	AC 220V ±10% 50HZ
Absolute vacuum	65KPa
Air pump flow	3L/Min
Standard filters	80, 100, 150 mesh filter
Optional filters	Below 1000 mesh
Capacity	500ml

Product Visualization
