| Brand Name: | ACEY |
| Model Number: | ACEY-BCT506-512H |
| MOQ: | 1 Set |
| Price: | USD 3980~7900/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |
5V 6A 512 Channels 18650 21700 26650 32700 Lithium Ion Cell Grading Machine
Product Description
ACEY-BCT506-512H lithium-ion cell capacity grading machine is widely used in lithium battery manufacturers, battery pack assembly plants, and research laboratories for key processes such as cell formation, capacity testing, and performance parameter testing. The equipment is easy to operate, runs stably, and can operate continuously for extended periods, making it an important piece of equipment for cell quality control.
System Features
Main Technical Parameter
| Structure Of Equipment (Device) | |
| Number of device channels | 512 Channels |
| Size (width * depth * height) cm | 160*55*184 |
| Clamp form | Cylindrical four-wire fixture |
| Color of device | Dark grey |
| Clamp center distance | 40mm/35mm |
| Support battery height | Adjustable within 10-100mm range |
| Working power | Three-phase five-wire system ac380v±10%, 50hz |
| Working power dissipation | ≤27kw |
| Work environment | Temperature 0-40 ℃, relative humidity ≤80% |
| Heat-dissipating method | Natural wind intake and upward exhaust |
| Channel Parameter | |
| Voltage testing range | 0-5V, 1MV resolution |
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V |
| Constant voltage range | 2.5V-4.5V |
| Voltage accuracy | ±(1‰ reading +1‰ full) |
| Current range | 60mA-6A, Reslution: 1mA |
| Current accuracy | ±(1‰ reading +1‰ full) |
| Control mode | Computer connection equipment work, Whole |
| Machine Control | |
| Software Function | |
| Communication mode | Rs485, baud rate 57,600 |
| Process set | Maximum 32 work steps and 256 cycles |
| Charging mode | Constant current, constant voltage |
| Charging cutoff condition | Voltage, current, time, capacity |
| Discharge | Constant current |
| Discharge cut-off condition | Voltage, time, capacity |
| Protection function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc |
| Time range | 0 - 30,000 minutes |
| Time accuracy | ≤±1‰ |
| Sampling inspection period | ≤8s |
| Minimum data recording frequency | ≤8s |
| Battery grading | By capacity, time, discharge platform, etc |
| Data processing | Data, graphs, and loop diagrams |

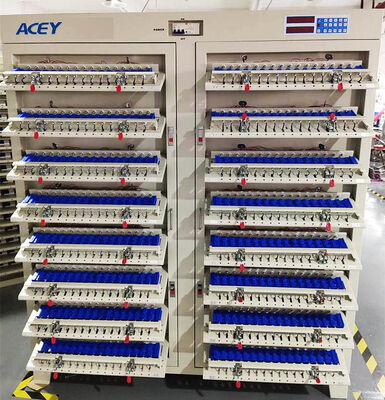

Product Display
