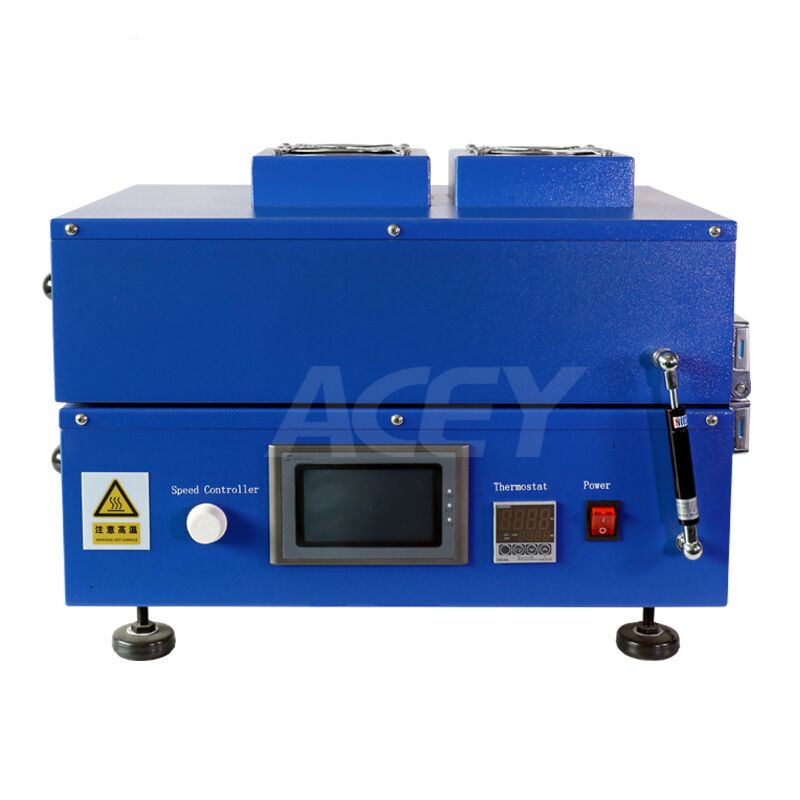

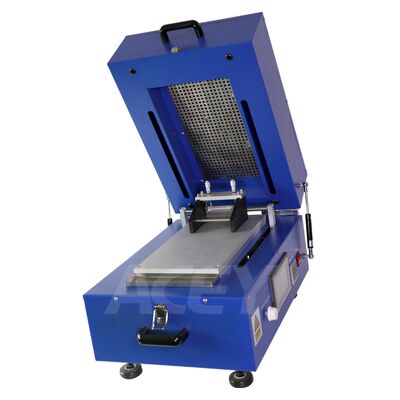

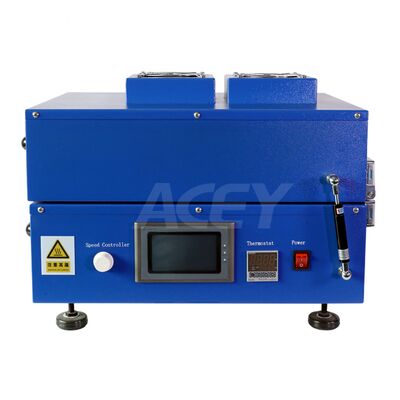

250MM Heating Speed Adjustment Battery Electrode Coating Machine With Doctor Blade

Brand Name:	ACEY
Model Number:	ACEY-HFC250
MOQ:	1 Set
Price:	USD 2380 /Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

The Coating Width:

Adjustable From 6.4-100mm

Coating Speed:

0～120mm/sec

Scraper Adjustable Range:

0～6mm Adjustable

Heating Drying System:

Room Temperature～150℃

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Product Description

250MM Heating Speed Adjustment Battery Electrode Coating Machine With Doctor Blade

Our products are extensively applied in the research and development of a wide range of high-temperature coating films, including ceramic films, crystalline films, battery material films, and specialized nano-films. They are designed to support evolving technological demands for film formation under high-temperature conditions in future scientific advancements.

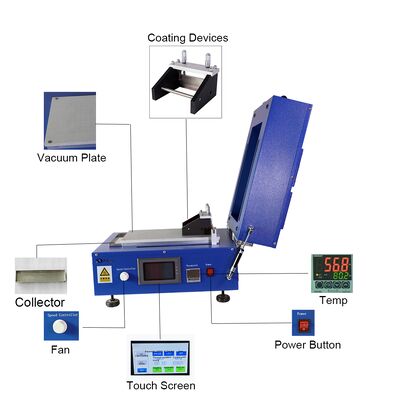

Product Features

Utilizes large-area uniform heating to achieve high precision and consistent temperature distribution within the chamber.
Supports flat coating and motor-driven scraper coating, with stable and adjustable coating speeds.
Features adjustable coating speed; the vacuum aluminum pan enables rapid placement or removal of substrates such as copper foil and aluminum foil. The built-in vacuum pump (or connection to an external vacuum source) ensures deformation-free substrate adsorption.
Equipped with a standard film dispenser for high coating precision and adjustable coating thickness.
Compact design for easy operation inside a glove box, helping to save valuable space.
PLC and touch-screen interface allow convenient parameter setting.

Technical Specifications

Heating drying system	Room temperature～150℃, digital display temperature controller, accuracy ± 1℃
Coating method	Flat coating, standard film maker (can be enlarged), optional scraper, wire rod and other gauges
The coating width	Adjustable from 6.4-100mm, the coating stroke is about 250mm, and the stroke is steplessly set and adjusted in the touch screen
Coating drive	Motor drive, the coating speed is steplessly set and adjusted in the touch screen
Coating speed	0～120mm/sec (such as lithium iron phosphate slurry)
Scraper adjustable range	0～6mm adjustable
Vacuum plate size	L365mm×W200mm×H32mm
Vacuum plate	Aluminum plate with vacuum
Accuracy	±3μm, optional display 1μm dial indicator
Power supply	220V/50Hz
Weight	50KG
Dimensions	L505mm×W355mm×H325mm
Packing details	Include 1 built-in oil-free vacuum pump
