Dual Shaft Planetary Stirring Vacuum Mixing Machine For Battery Slurry And Powders

Brand Name:	ACEY
Model Number:	ACEY-PVM-250ML
MOQ:	1 Set
Price:	USD 1950 /Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power Supply Voltage:

AC220V

Rated Power:

200W

Stirring Speed:

MAX600 Rpm

Vacuum Degree:

-0.08Mpa

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Highlight:

dual shaft planetary mixing machine

vacuum mixing machine for battery slurry

powder mixing machine with vacuum

Product Description

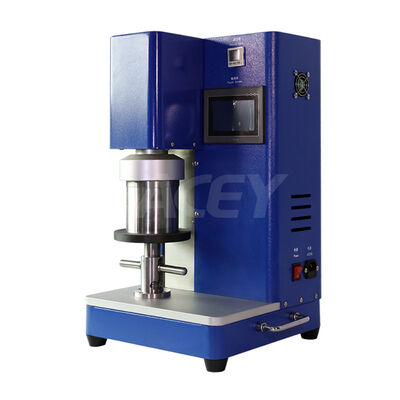

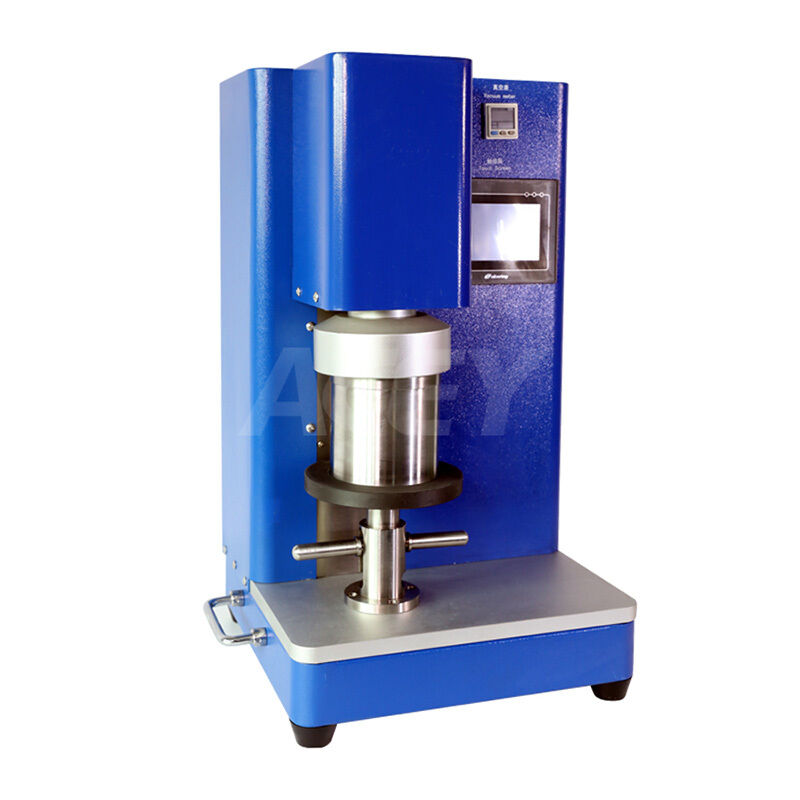

Dual Shaft Planetary Stirring Vacuum Mixing Machine

Advanced vacuum mixing and dispersion equipment specifically designed for battery slurry and powder materials. Ideal for positive and negative electrode slurry mixing processes, as well as various ceramic and powder material mixing in battery experimentation.

Key Advantages

Vacuum-state mixing completely eliminates bubbles, enhancing material filling density and model compactness for superior results.

Product Features

Integrated vacuum system effectively eliminates mixing process bubbles

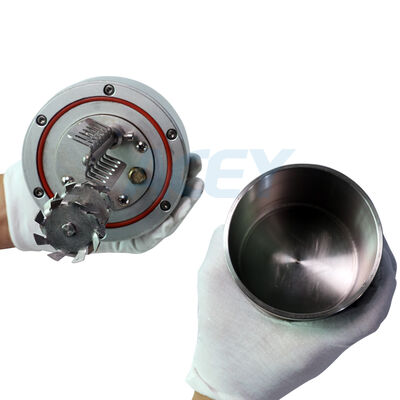

Dual-shaft planetary stirring paddles with optional single-shaft blade configurations
Forward and reverse stirring function for high-viscosity slurry processing
Stepping motor with PLC frequency speed control for precise operation
Multi-stage speed programming with customizable timing for each stage
Safety-engineered bracket design for secure vacuum mixing operations
Modern geometric design with sleek, professional appearance

Technical Specifications

Power Supply Voltage	AC220V
Rated Power	200W
Stirring Speed	MAX 600 rpm
Speed Regulation Function	Three-stage speed, configurable
Vacuum System	Built-in vacuum pump, vacuum degree -0.08Mpa, pressure maintained for 2H without obvious drop
Stirrer Configuration	Standard twin-shaft screw agitator; other types designed according to the tank body
Stirring Tank Volume	150ml～500ml vacuum stirring tank
Mixing Time	0～600min, configurable
Overall Dimensions	335mm * 325mm * 575mm (LWH)
Overall Weight	35kg
