Semi-Automatic Pouch Cell Electrode Die Cutting Machine

Name: Semi-Automatic Pouch Cell Electrode Die Cutting Machine
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-SDC-1
Price: 4,798.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-SDC-1
MOQ:	1 Set
Price:	USD 4700~4897/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Punching Size:

280x180mm（customized）

Punching Accuracy:

±0.1 Mm

Booster Cylinder:

Die Cutting Stroke:

150mm

Dimensions:

L590xW415xH900mm

Equipment Weight:

About 70KG

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Highlight:

semi-automatic pouch cell cutter

electrode die cutting machine

pouch cell assembly equipment

Product Description

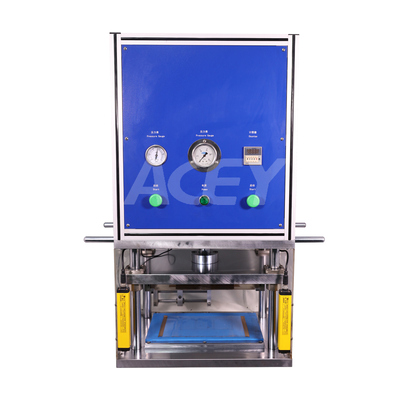

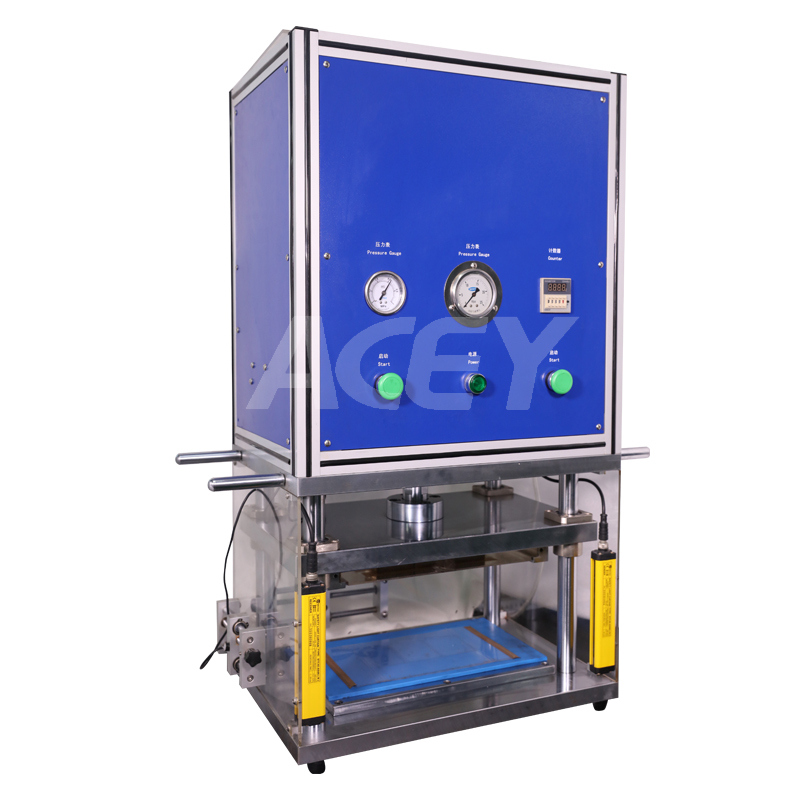

Semi-Automatic Pouch Cell Electrode Die Cutting Machine

Product Overview

ACEY-SDC-1 This semi-automatic die-cutting machine is designed to cut positive and negative electrode sheets from laminated lithium-ion battery materials. It uses a pressure cylinder to stamp single sheets or coiled electrode blanks. Custom-shaped die-cut tools can be supplied according to customer specifications, allowing electrodes in various dimensions to be formed and cut.

Key Features

High precision die cutting with clean and burr-free edges
Semi-automatic operation, easy to use and maintain
Suitable for lithium polymer pouch cell electrode processing
Stable performance with consistent cutting quality
Compact design, ideal for laboratory and pilot production
Adjustable cutting parameters for different electrode sizes
Low material waste, improving production efficiency

Technical Specifications

Punching size	280x180mm (can be customized according to customer requirements)
Punching accuracy	±0.1 mm
Booster cylinder	3T
Die cutting stroke	150mm
Capacity	800～2000EA/H (sheet die cutting efficiency is slightly lower)
Power supply	220V/50Hz
Power	100W
Compressed air	0.5Mpa～0.8 Mpa
Dimensions	L590xW415xH900mm
Equipment weight	70KG
