Small Mute Battery Materials Planetary Ball Mill Machine for Lab Material Grinding

Name: Small Mute Battery Materials Planetary Ball Mill Machine for Lab Material Grinding
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-VPM-400ML
Price: 1,480.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-VPM-400ML
MOQ:	1 Set
Price:	USD1450~1511/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Compatible Grinding Jars:

100ml * 4

Max Feeding Capacity:

1/3 Capacity Of The Grinding Jar

Roll Placement:

Vertical Placement

Rotational Speed Of Grinding Jar:

1100rpm

Dimensions:

502mm*300mm*298mm

Equipment Weight:

30KG /40KG

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Highlight:

small mute planetary ball mill

battery materials lab grinder

planetary ball mill for lab

Product Description

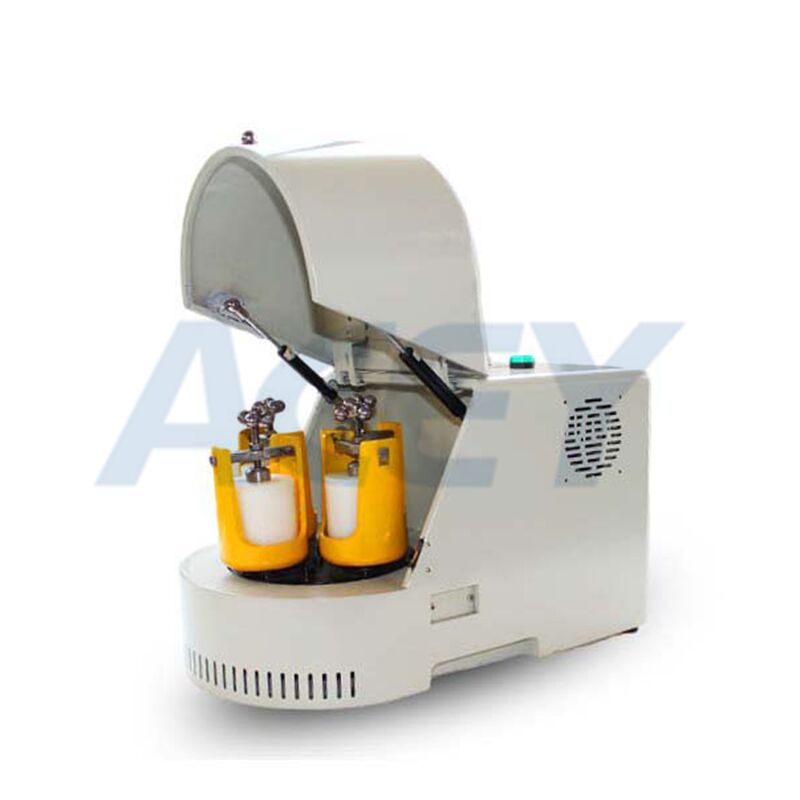

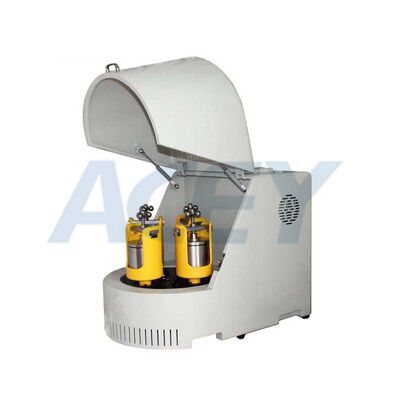

Small Mute Battery Materials Planetary Ball Mill Machine for Lab Material Grinding

The ACEY-VPM-400ML Planetary Ball Mill Machine performs dry grinding, wet grinding in suspension, and operation under inert gas atmospheres. Beyond size reduction, this versatile instrument handles mixing and homogenizing emulsions and pastes, mechanical alloying, and material activation in research settings. With its compact design, comprehensive functionality, high efficiency, and low noise operation, it is ideal for obtaining research samples in institutes, universities, and industrial laboratories. The system processes up to four samples simultaneously and, when equipped with vacuum-compatible milling jars, supports grinding under vacuum conditions. Applications span geology, mining, metallurgy, electronics, construction materials, ceramics, chemical engineering, light industry, pharmaceuticals, and environmental protection.

Key Features

Elegant design for user-friendly operation
Suitable for both wet and dry grinding applications
Automatic and programmable control with intuitive LED display
Multiple selectable grinding modes for various process needs
High uniformity and excellent repeatability of results
High rotational speed, efficient performance, and fine particle size
Capable of processing four samples of varying sizes and materials simultaneously
Programmable interval and pause times for flexible operation
Stepless speed adjustment with reversing function
Wide selection of materials available for grinding tools
Gear-drive mechanism eliminates belt drive issues
Low center of gravity, high rigidity, compact structure, low noise, and reliable, safe operation with minimal pollution and wear
Built-in fan cooling system enables extended grinding durations

Technical Specifications

Working Principle	Impact and friction force
Compatible Grinding Jars	100ml * 4
Max Feeding Capacity	1/3 capacity of the grinding jar
Operation Mode	2 or 4 grinding jars working simultaneously
Feeding Granularity	Soil materials < 10mm, other materials < 3mm
Discharging Granularity	Down to 0.1μm
Sample Type	Hard, medium-hard, soft, fibrous, brittle, moist
Rotational Speed of Grinding Jar	1100rpm
Rotational Speed Ratio	1 : -2
Drive Mode	Gear drive and belt drive
Speed Control	Stepless speed regulation
Electrical Details	AC110/220V, 50/60Hz, 0.25KW
Max Continuous Grinding Time	72 hours (full-load)
Weight (Net / Gross)	30KG / 40KG
Dimension (LWH)	502mm * 300mm * 298mm
Size of Planetary Disk	Dia190mm * T6mm
