| Brand Name: | ACEY |
| Model Number: | ACEY-ERP100W |
| MOQ: | 1 Set |
| Price: | USD 1900~1980/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

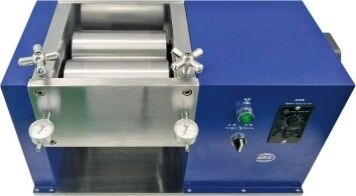

The electric roller mill is primarily designed for laboratory-scale rolling of battery materials, as well as small quantities of precious metals such as gold and silver, and non-ferrous metals including copper and aluminum. It is particularly suitable for thinning electrode sheets and enhancing the density of lithium battery electrode materials. The machine adopts a gear-driven transmission system to ensure stable and efficient rolling performance. The rolling thickness is adjustable, allowing for precise control during operation.
| Roller Size | Diameter Φ96mm × 100mm |
|---|---|
| Roller Cylindricity | ≤ ±2μm |
| Roller Hardness | HRC 62 |
| Press Strength | Maximum: 4T |
| Roller Finish | Above 0.4 |
| Rolling Thickness | 0–2mm (adjustable gap) |
| Roll Placement | Horizontal placement |
| Tablet Thickness | Speed adjustable |
| Power Source | AC220V/50Hz, 120W |
| Feeding Speed | 0–40mm/s |
| Dimensions | L505mm × W365mm × H625mm |
| Equipment Weight | 65KG |
