| Brand Name: | ACEY |
| Model Number: | ACEY-BS02 |
| MOQ: | 1 Set |
| Price: | USD 6298~7128/Set (negotiable) |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

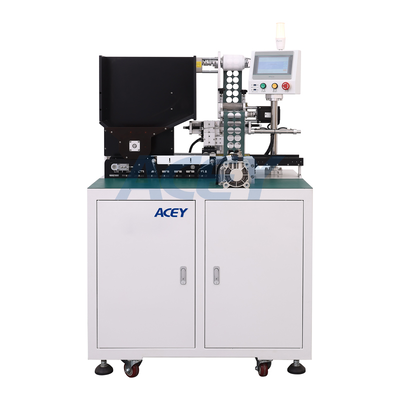

Automatic Cylindrical Lithium Battery Insulation Paper Pasting Machine for 32140 33140
Product Description
ACEY-BS01 Insulation paper sticking machine is specifically designed for the automatic pasting of barley paper insulation pads or PVC materials on the positive or negative electrodes of cylindrical lithium-ion batteries. It is suitable for 32140 and 33140 battery models and is widely used in battery manufacturing and pack assembly lines. Automatic labeling improves production efficiency while reducing manual handling and variability.
Equipment Features
Main Technical Parameter
| Voltage Supply | Single-phase ~ 220V, 50Hz |
| Rated power | 2KW |
| Surface pad material | Highland barley paper or PVC material |
| Material specification requirements | the max diameter of barley paper roll material is 350MM, the inner diameter of paper roll core is 72-75MM |
| batrery type | Battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material |
| Feeding method | Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting |
| Pneumatic pressure | 0.4-0.6Mpa barley paper machine |
| Cushioning power | Electric or pneumatic |
| Control device | 7.5 inch touch screen, PLC programmer and servo motor |
| Barley paper roll width | 100mm |
| Speed | 2000PCS/hour, 2PCS per punch |
| Dimensions | L1110mm*W710mm*H1580mm |
| Machine weight | 200Kg |
| Knife mold | Slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water |
Product Display
