| Brand Name: | ACEY |
| Model Number: | ACEY-HRP100 |
| MOQ: | 1 Set |
| Price: | USD 1980~2060/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

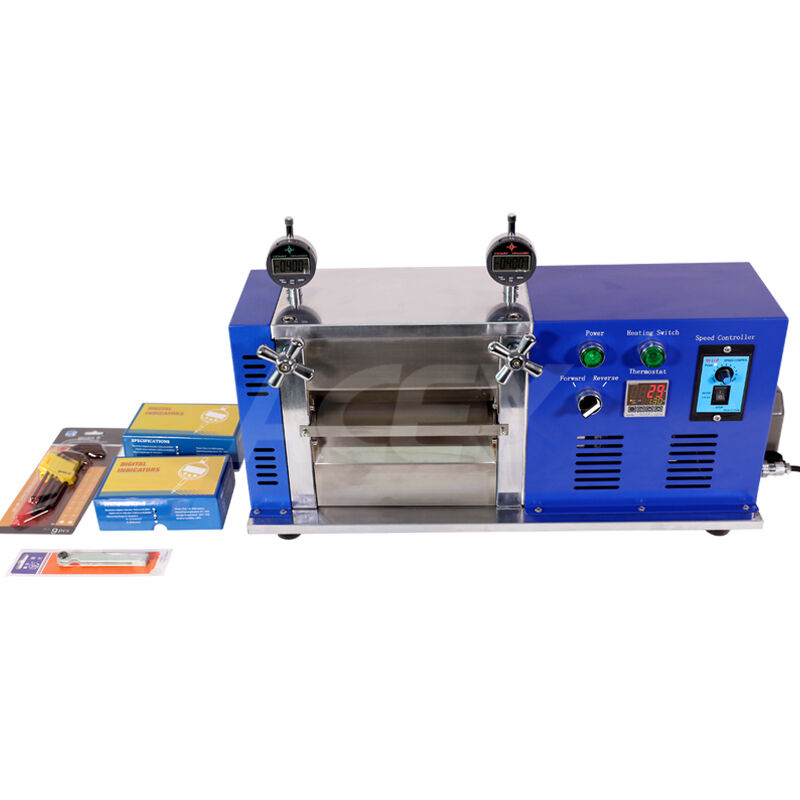

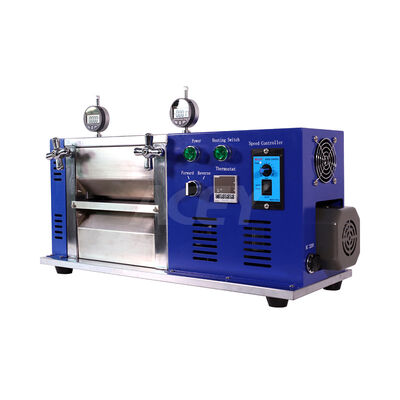

The ACEY-HRP100 electrically heated vertical rolling press is specifically designed for laboratory use, enabling controlled-temperature rolling of battery materials, small quantities of precious metals (e.g., gold and silver), and non-ferrous metals such as copper and aluminum. It features adjustable rolling thickness and straightforward operation. This makes it particularly well-suited for thinning and increasing the density of lithium-ion battery electrodes used in clean-energy applications.
| Roller size | Diameter Φ96mm × 100mm |
| Roller cylindricity | ≤±2μm |
| Roller hardness | HRC62 |
| Roller finish | Ra0.4 or better |
| Rolling thickness | 0-2mm (adjustable gap) |
| Roll placement | Vertical placement |
| Tablet thickness | Adjustable speed |
| Rolling temperature | Room temperature to 130°C (digital display) |
| Temperature control accuracy | ±0.5°C |
| Temperature resolution | 0.1°C |
| Power source | AC220V/50Hz, 800W |
| Feeding speed | 0-40mm/s (adjustable) |
| Dimensions | 505mm × 225mm × 325mm |
| Equipment weight | 60kg |
