| Brand Name: | ACEY |
| Model Number: | ACEY-AC300J |
| MOQ: | 1 Set |
| Price: | USD 29800~31052/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

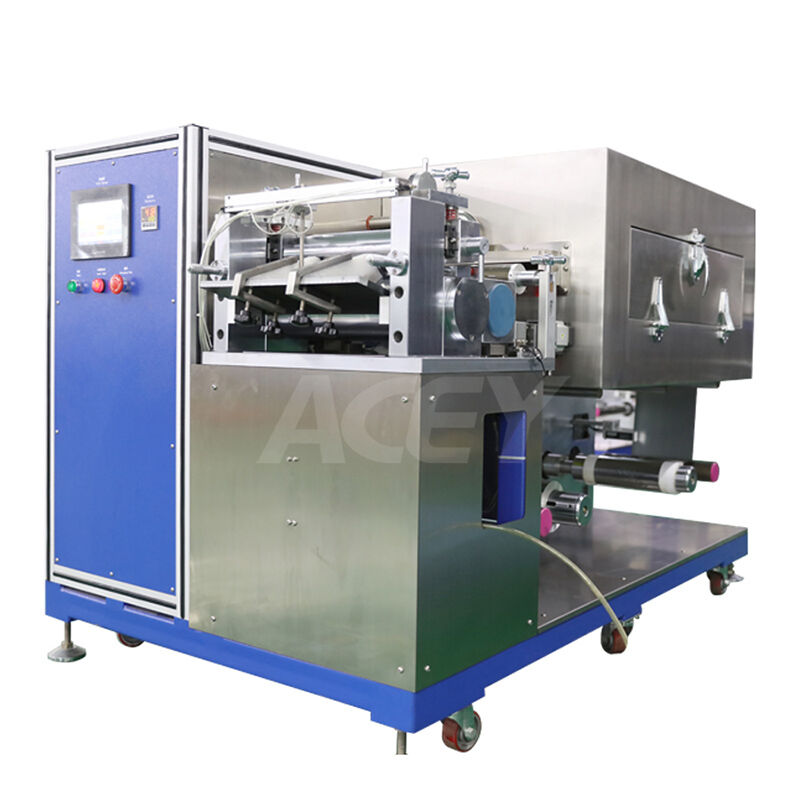

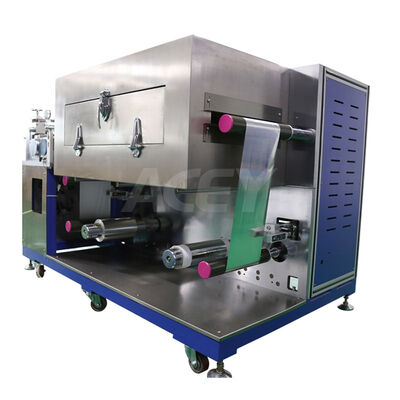

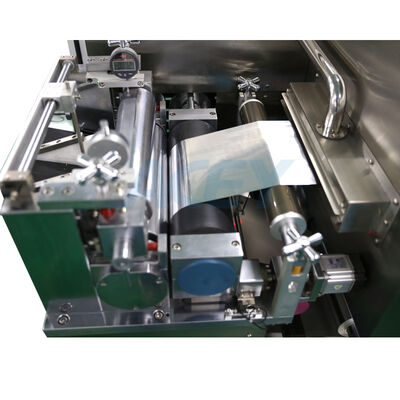

This intermittent experimental coater is a three-roll transfer coating system suitable for both continuous and intermittent coating processes, offering convenient application to various substrate surface coating procedures. Designed specifically for the lithium-ion battery industry, the equipment prioritizes ease of use for researchers while meeting the same requirements for coating accuracy and consistency as production-scale systems. It features excellent drying performance and is ideal for the development and small-scale trials of secondary batteries, including lithium-ion batteries, supercapacitors, and nickel-based batteries.
| Power Supply | Single-phase voltage AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 5KW |
|---|---|
| Gas Source | 0.5-0.8MPa compressed air |
| Use Environment | Recommended ambient temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference |
| Coating Type | Continuous coating, intermittent coating |
| Guide Roller Width | 300mm |
| Coating Width | Max. 250mm |
| Mechanical Speed | Max. 800mm/min |
| Coating Accuracy | Better than ±3μm (Edge error ±5μm) |
| Coating Thickness | Depending on the size of the paste, 30~200μm |
| Thickness Adjustment | Manual free adjustment, dial indicator display accuracy 1μm |
| Coating Length | Single piece Max. 5000mm, blank 10~100mm, accuracy ±0.5mm |
| Drying Unit | Standard hot air drying (infrared drying and UV curing can be customized), single section 800mm long |
| Drying Temperature | Max. 150±5℃, can be set |
| Tension Control | Max. 60N |
| Reel Diameter | 250mm |
| Winding Accuracy | ±0.5mm |
| Outer Size | L1750*W1000*H1200mm |
| Weight | Approximately 900KG with caster base |
