Small Volume Liquid Viscometer Digital Rotational Viscosity Meter For Sale

Small Volume Liquid Viscometer Digital Rotational Viscosity Meter For Sale

Small Volume Liquid Viscometer Digital Rotational Viscosity Meter For Sale

Brand Name:	ACEY
Model Number:	NDJ-D-1S/5S/8S
MOQ:	1 Set
Price:	USD 460~479/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Input Power:

AC110-240V 50/60HZ DC12V

Measuring Range:

5S: 1-1×105mpa.s; 8S:1-2×106mpa.s

Rotor Speed:

8S: 0.3,0.6,1.5,3,6,12 Transfer/score

Measurement Accuracy:

±2%（Newtonian Liquid）

Weight:

4.6Kg

Dimensions:

380mm*320mm*390mm

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

CE

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Highlight:

digital rotational viscometer

,

small volume liquid viscometer

,

rotational viscosity meter

Product Description

Small Volume Liquid Viscometer Digital Rotational Viscosity Meter

The NDJ-D-1S/5S/8S digital display viscometer features innovative mechanical design and precision manufacturing. With microcomputer control technology and RS-232C printer interface, it ensures accurate data acquisition. Equipped with blue backlight and high-brightness LED displays for optimal readability.

Key Features

Digital rotational viscometer with motor-driven rotor system for precise viscosity measurement
High sensitivity with excellent anti-interference performance and wide working voltage (110V-240V 50HZ-60HZ-12V)
Clear display showing rotor number, rotational speed, viscosity value, and percentage measurement

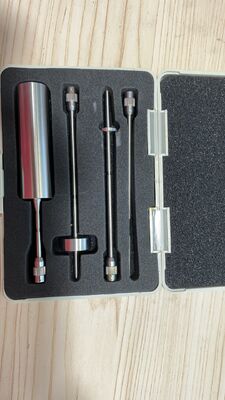

Includes four rotors (No. 1, 2, 3, 4) for versatile measurement capabilities
NDJ-5S model offers 16 combinations of four rotational speeds (6, 12, 30, 60 rpm)
Measures absolute viscosity of Newtonian liquids and apparent viscosity of non-Newtonian liquids
Wide application range including oils, paints, plastics, pharmaceuticals, and detergents

Technical Specifications

Parameter	Specification
Measuring Range	5S: 1-1×10⁵ mPa·s \| 8S: 1-2×10⁶ mPa·s
Rotor Specifications	1, 2, 3, 4 rotors (0 rotor measures viscosity below 10 mPa·s)
Rotor Speed	5S: 6, 12, 30, 60 rpm/min \| 8S: 0.3, 0.6, 1.5, 3, 6, 12 rpm
Measurement Automation	Automatic rotor stop when results stabilize
Measurement Accuracy	±2% (Newtonian liquid)
Interfaces	Temperature sensor, PC, and printer interfaces
Power Supply	AC 110-240V 50/60Hz \| DC 12V
Operating Environment	Temperature: 5-35°C \| Relative humidity: ≤80%
Dimensions	380mm × 320mm × 390mm
Net Weight	4.6 kg

Product Images

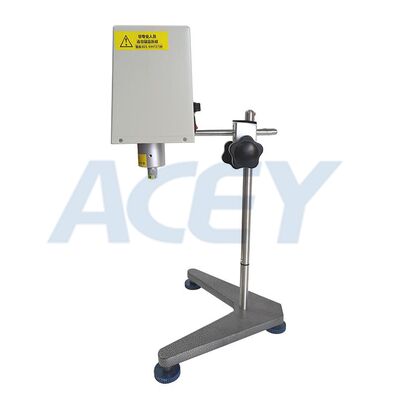

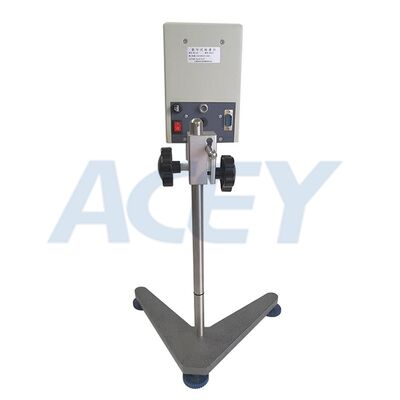

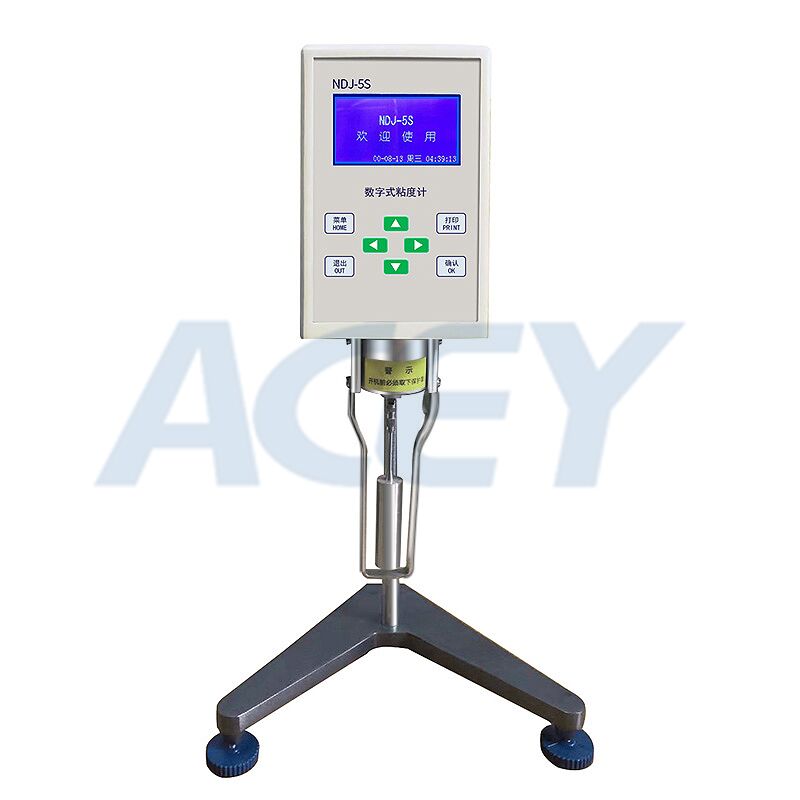

Small Volume Liquid Viscometer Digital Rotational Viscosity Meter For Sale 0

Small Volume Liquid Viscometer Digital Rotational Viscosity Meter For Sale 1
