Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers

Name: Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-EVM-1L
Price: 2,532.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-EVM-1L
MOQ:	1 Set
Price:	USD 2480~2584/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Power:

0.75KW, 220V;

Stirring Speed:

0-1400 Rpm

Effective Volume:

Equipped With A 1L Tank

Overall Size:

705mm×605mm×305mm (height×length×width)

Weight:

90KG

Vacuum:

-98KPa (without Vacuum Pump)

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

Certification:

Packaging Details:

Plywood Case

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Highlight:

laboratory pouch cell assembly machine

vacuum mixing machine with 1L containers

stainless steel coin cell assembly machine

Product Description

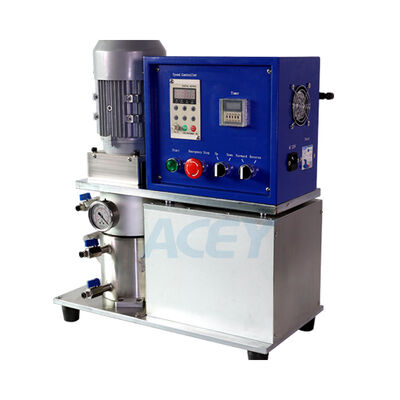

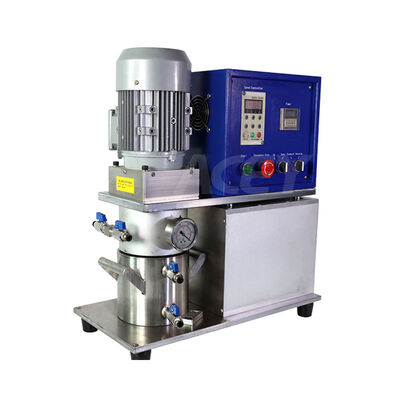

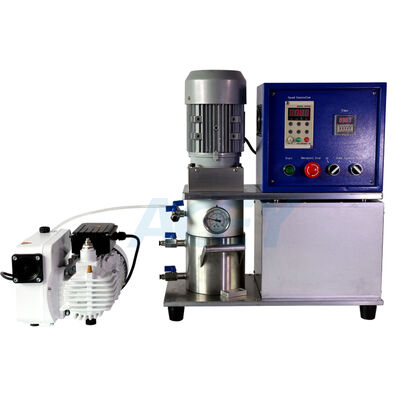

Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers

The ACEY-EVM-1L vacuum mixer is a compact laboratory unit designed for efficient vacuum mixing and dispersion. It features programmable control over speed, time, and rotational direction, allowing for customized process parameters. Equipped with a stainless steel mixing tank and an integrated water cooling system, it ensures optimal performance and temperature stability during operation.

Key Features

1L double-layer stainless steel container made of high-quality 304 stainless steel, precision polished for high accuracy
Gearbox frequency conversion adjustment for selecting different speeds and torque based on process requirements and material viscosity

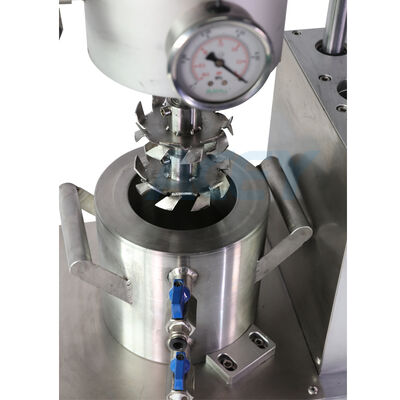

Double-dispersion blade design for thorough material mixing with up/down and circular motion
Automatic stop function while maintaining vacuum state
Industry-leading soft sealing technology maintains -0.098Mpa vacuum for over 24 hours
Precision guide post support with cylinder-driven automatic barrel opening and closing

Technical Specifications

Rated Power	0.75KW, 220V
Stirring Speed	0-1400 rpm, speed regulation by frequency converter
Vacuum Level	-98KPa (without vacuum pump)
Effective Volume	Equipped with 1L tank
Barrel Opening/Closing	Cylinder-driven upper cover mechanism
Overall Dimensions	705mm * 605mm * 305mm (height * length * width)
Timing Function	Programmable timing 0-99 hours
Lid Features	Vacuum gauge, vacuum port, and other accessories
Overall Weight	Approximately 90kg

Product Display
