5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700

Name: 5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-AS5SP
Price: 5,535.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-AS5SP
MOQ:	1 Set
Price:	USD 3180~7890/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

1 Year Warranty With Lifetime Support

After-sales Service:

24/7 Technical Support

Number Of Channels:

5 Channels

Sorting Speed:

56ppm

Compatible Battery:

14650/18650/21700/26650/32650/32700 Cylindrical Cells

Weight:

<200kg

Dimensions:

L1010mm*W700mm*H1350mm

Power Supply:

220V, 50Hz/60Hz

Packaging Details:

Plywood Case

Highlight:

5-channel cylindrical battery sorter

automatic 18650 battery sorting machine

21700 26650 battery sorter with warranty

Product Description

5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700

The ACEY-AS5SP battery sorting machine is a professional-grade sorting solution designed for high-consistency battery pack assembly. Powered by an advanced Industrial PC and Motion Controller, it offers higher precision, faster data processing, and better stability than traditional PLC-based machines.

Key Features

Elite Efficiency: Processes up to 3,200 cells per hour, maximizing your production output

PC-Driven Intelligence: Features a computer-based control system for advanced data analysis, easy reporting, and seamless MES system integration

Universal Compatibility: A flexible platform for 18650, 21700, 26650, and 32700 cylindrical cells

Rapid Changeover: Switch between different battery models in just 15 minutes with a simple, modular mechanical design

Precision Testing: Integrated with high-accuracy internal resistance and voltage testers to ensure every cell in your pack is perfectly matched

Technical Specifications

Model	ACEY-AS5SP
Compatible Cells	14650, 18650, 21700, 26650, 32700 (Optional)
Sorting Channels	4 OK Grades + 1 NG (Reject)
Throughput	~3,200 pcs/hour
Control System	Industrial PC + Motion Controller + Servo Motors
Dimensions	1010mm (L) * 700mm (W) * 1350mm (H)
Weight	198 KG
Power Supply	220V, 50Hz/60Hz
Air Pressure	0.5 - 0.6 Mpa

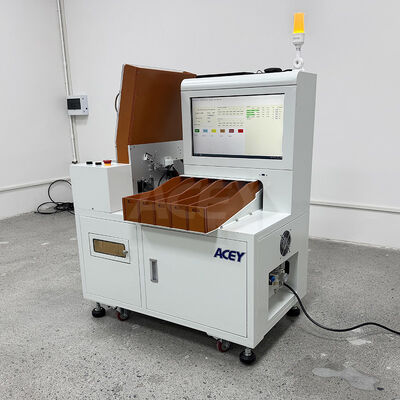

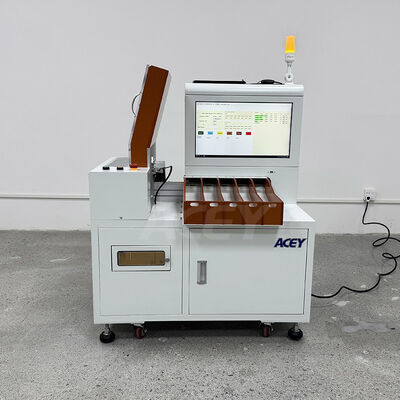

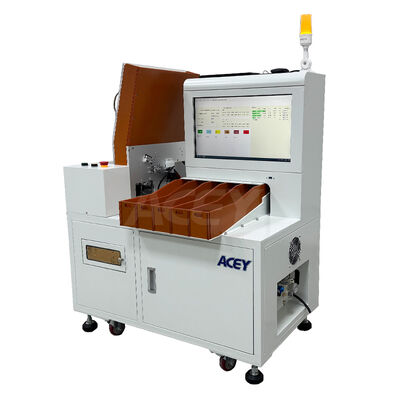

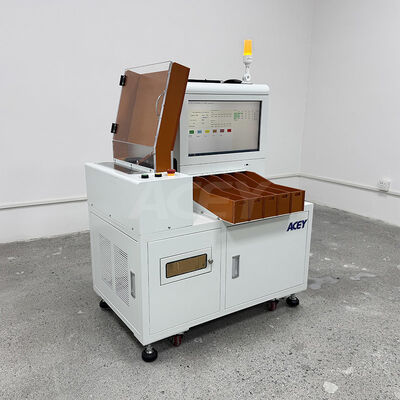

Product Images
