| Brand Name: | ACEY |
| Model Number: | ACEY-PS8 |
| MOQ: | 1 Set |
| Price: | USD 3630~13335/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

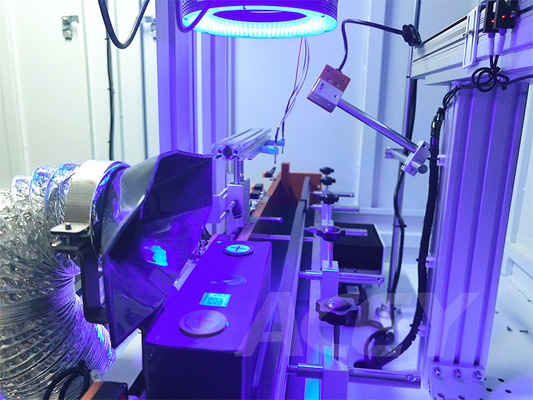

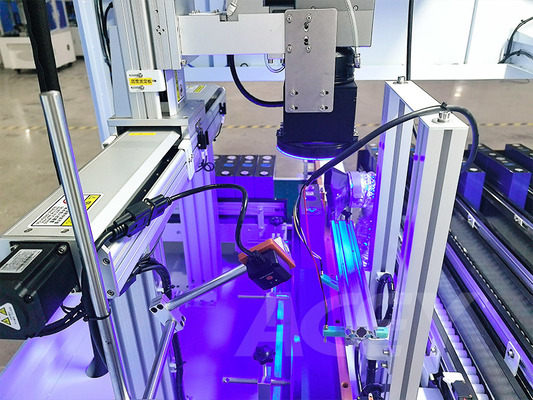

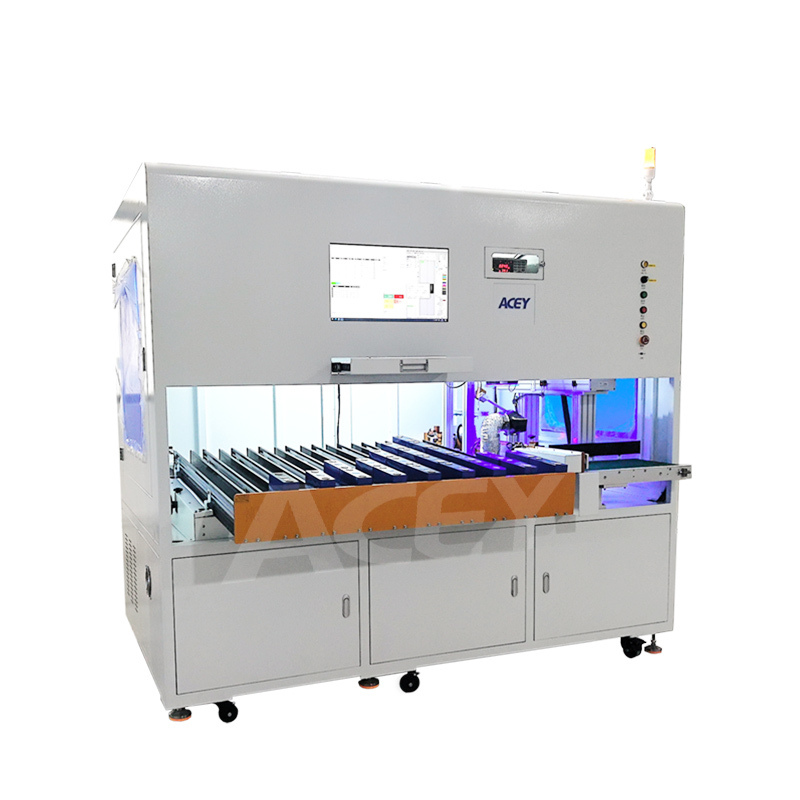

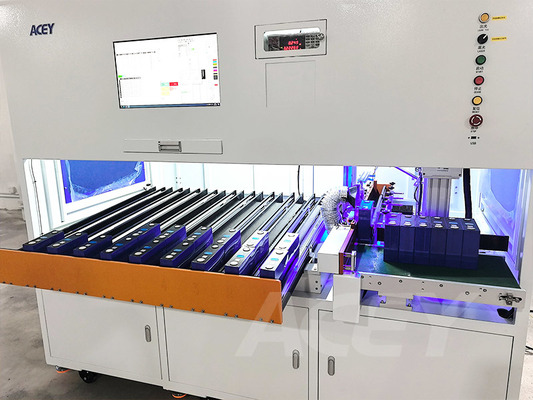

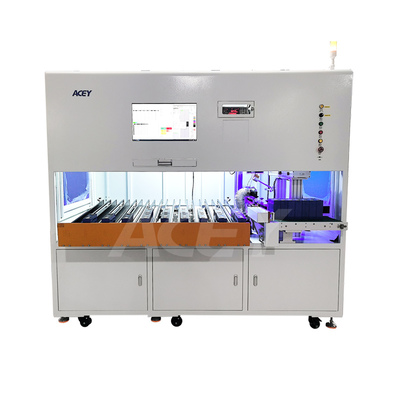

The ACEY-PSLC10 is an advanced automatic prismatic battery sorting machine engineered for comprehensive sorting, assembly testing of prismatic cells, and integrated laser cleaning prior to laser welding operations. Featuring belt-driven feeding for simplified battery changeover, this system analyzes and stores test data, accurately rejects defective cells, and efficiently collects qualified batteries into designated receiving slots through precise sorting and matching. The intuitive design ensures easy operator management and streamlined workflow.
| Parameter | Specification |
|---|---|
| Compatible Dimensions (L × W × H) | 90-300 mm × 12-85 mm × 90-300 mm |
| Sorting Channels | 9 OK channels + 1 NG channel |
| Control System | PLC control system + linear module |
| Laser Cleaning Function | 200W MAX pulsed laser source |
| Loading & Testing | Integrated manual loading and automatic testing (optional internal resistance tester: Hope & Hioki) |
| Code Scanning Function | Integrated QR code / barcode scanning (optional: Hikvision & Keyence) |
| Sorting Process | Fully automated - reduces manual intervention |
| MES System Interface | Optional; real-time recording of battery QR code info and test data, generates SPC analysis reports |
| Max Sorting Speed | Approx. 10-12 PPM (more than 3× manual sorting efficiency) |
