Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment

Name: Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-AS11S
Price: 7,525.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-AS11S
MOQ:	1 Set
Price:	USD 6450~8600/Set
Payment Terms:	T/T,PayPal,L/C,Western Union
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

External Dimension:

Length1430* Width660* Height1350mm

Battery Type:

18650（other Sizes Available）

Receiving Channel:

10 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value.

Working Power:

Single-phase ~220V±10%/50Hz±10%, Power <800W

Test Parameters:

AC Internal Resistance, DC Voltage

Sorting Speed:

80ppm

Warranty:

1 Year Warranty With Lifetime Support

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Product Description

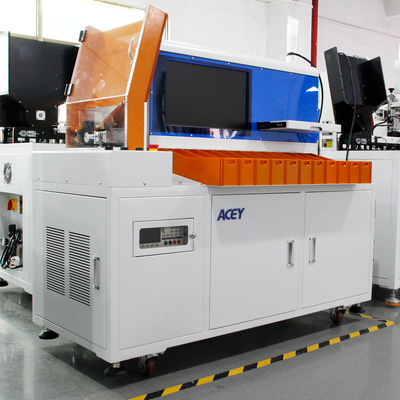

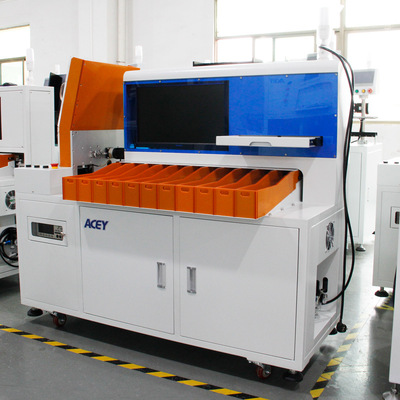

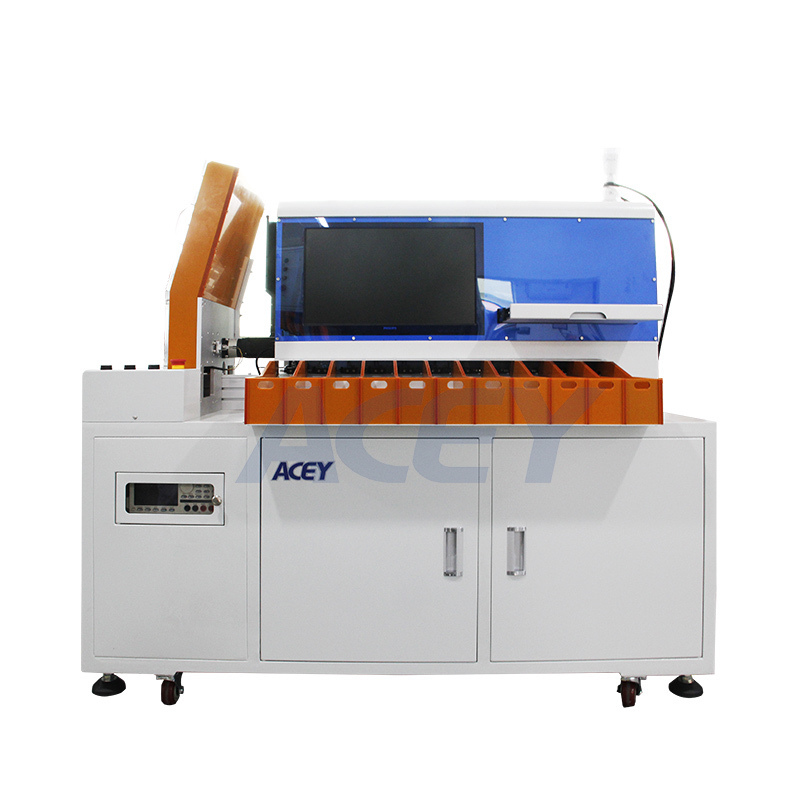

Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment

11-Channel Cylindrical Lithium Cell Voltage Sorting and Grading Machine

The ACEY-AS11S is an automatic battery sorting machine capable of classifying batteries according to preset criteria. It features rapid and accurate sorting, along with an integrated barcode scanner that correctly reads and logs data for every cell. By replacing manual operations, the system fundamentally avoids human errors such as misoperation and misclassification, while improving both the quality and efficiency of the sorting process. This machine is particularly suitable for the automated sorting of large and medium-sized cylindrical batteries.

Product Features

Automatically sorts cylindrical batteries (such as 18650 and 26650) based on voltage and internal resistance
Offers high precision, fast processing speeds, a high degree of automation, and strong productivity
Touchscreen interface enables easy operation with quick response times
Comprehensive and diverse process detection signals ensure proven maturity and reliable performance
Humanized design in every detail significantly enhances safety for both operators and products
Accommodates different battery cell sizes by changing the sorting mold (molds must be purchased separately)
A computer is included as part of the system

Main Technical Parameters

Parameter	Specification
Voltage Supply	Single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types	18650 (other sizes available)
Receiving Channel	10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value
Test Parameters	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 80mΩ, Accuracy: ±0.5%rdg, Display resolution: 0.01mΩ
Voltage Test	Test range: 8V, Accuracy: ±0.015%rdg, Display resolution: 0.01mV
Sorting Speed	80ppm
AI.Set Function	Intelligent one-button setting, specially designed for new functions of battery pack
Size	L1430mmW660mmH1350mm
Weight	<200Kg

Product Display
