| Brand Name: | ACEY |
| Model Number: | ACEY-PS10 |
| MOQ: | 1 Set |
| Price: | USD 14300~19400/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |
Prisamtic Battery Sorting Machine Lithium Ion Battery OCV IR Tester 10 Channels
Product Description
ACEY-PS10 Prismatic battery 10 channels automatic sorting machine is suitable for sorting and assembling test of universal prismatic batteries. The machine adopts the belt line to drive the feeding, and the type change is simple. It can analyze and save the test data of the prismatic battery, eliminate the defective battery exclusively, and collect the battery with the sorting and matching by the receiving tank. It is easy for the operator to manage.
Product Features
1)With the integration of industrial control, all parameters of the cell can be traced, convenient data management, simple operation. Cell voltage, cell internal resistance, group information and other management functions.
2)Suitable for various types of prismtic cells, easy to change.
3)Built-in high precision Japanese HiokiBT3562 internal resistance tester, high test accuracy, fast speed.
4) Built-in barcode scanner.
Main Technical Parameter
| Equipment efficiency | 10~12PPM |
| Equipment utilization | ≥95% |
| Number of sorting channels | 10(9 OK channels, 1 NG channel) |
| Applicable cell dimensions | Length: 100-300mm |
| width 20-85mm | |
| height: 80-300mm | |
| Control system | PC Industrial Computer (Embedded system) |
| Input power consumption | 1KW |
| Equipment power | 2KW |
| Input voltage | AC220V/50HZ |
| Compressed air source | ≥0.6Mpa |
| Displayer | 21.5-inch Philips displayer |
| Equipment Appearance Reference dimensions | L*W*H=1920*1600*1600mm |
| Weight | 350KG |

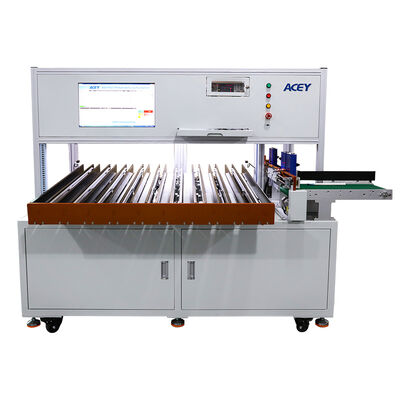

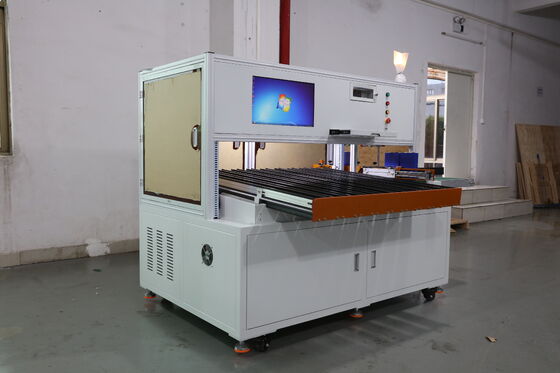

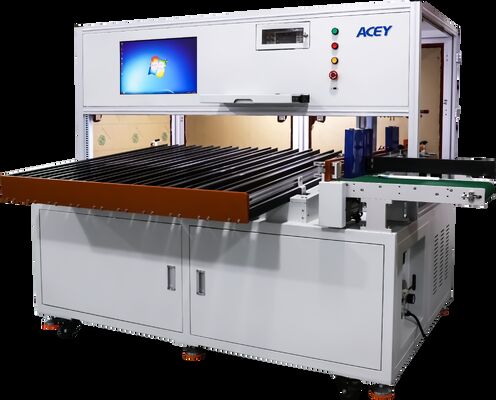

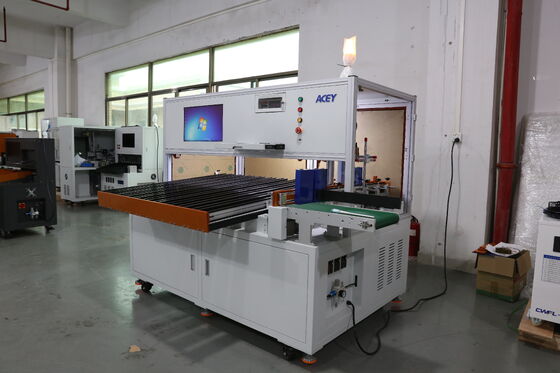

Product Display
