Automatic Lithium Battery Cell Sorting Machine For 32135 32140 33140 38121 40135 46140

10 Channels Automatic Lithium Battery Cell Sorting Machine For 32135 32140 33140 38121 40135 46140

Product Description

ACEY-AS10SP-33140 is a 10-channel battery sorting machine developed for large cylindrical cells such as 32, 33, 40, and 46 series. It uses a computer-based control system combined with precision servo motors and internal resistance testing instruments to achieve stable and accurate sorting performance. Compared with conventional PLC control systems, it allows easier parameter adjustment, faster product changeover, and more convenient production data management, helping improve efficiency and consistency in battery pack production.

Product Features

• High Efficiency: Capable of processing approximately 3,200 cylindrical cells per hour.
• Robust Design: Minimalist and elegant mechanical structure with stable system performance.
• Versatile Application: Specifically designed for power batteries, 3C digital batteries, and energy storage, meeting the precise matching requirements for new energy battery packs while complying with international safety standards.
• Smart Connectivity: Supports MES system integration for seamless data collection and uploading.
• Customizable Options: Supports QR code, barcode, and side-scanning functions (optional), with compatibility for various brands and models of internal resistance testers.

Technical Specifications

Environmental & Installation Requirements

• Ambient Temperature: -30°C to 50°C
• Humidity: Below 90%
• Air Supply Pressure: 0.5 – 0.6 MPa
• Power Supply: 220V, 50Hz/60Hz
• Floor Loading Capacity: ≤ 200 kg/m²
• Grounding: Direct grounding
• Site Requirements: Free from pollution and strong electromagnetic interference.
• Installation Surface: Level ground, free from vibration and impact.
• Noise Level: ≤ 80 dB

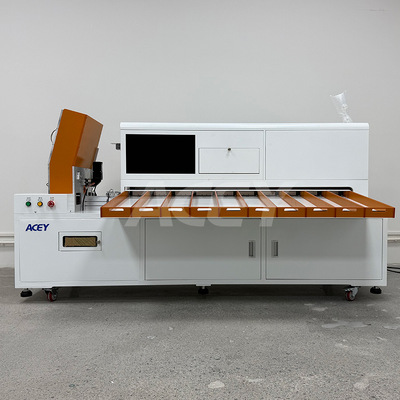

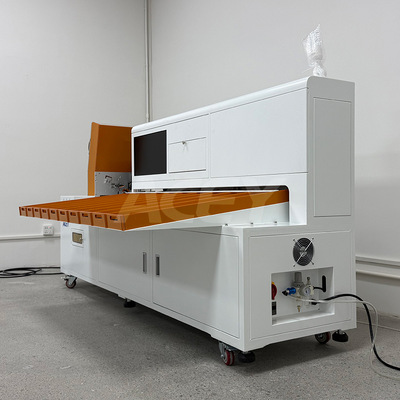

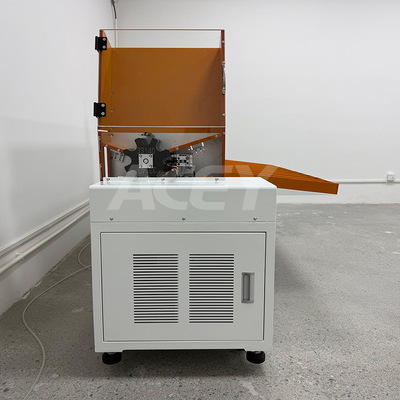

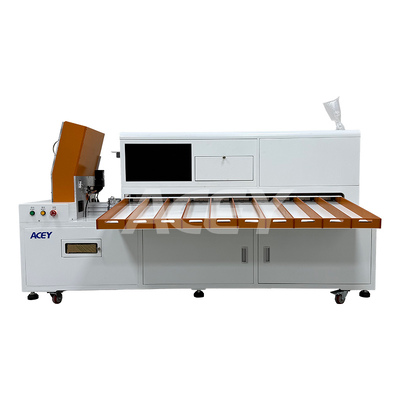

Product Display
