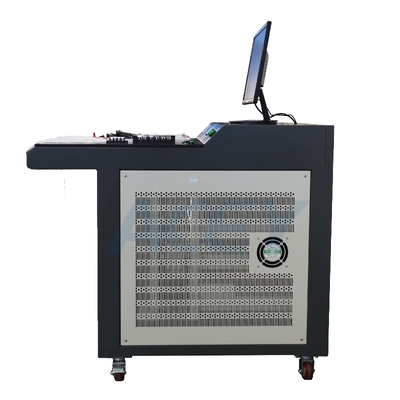

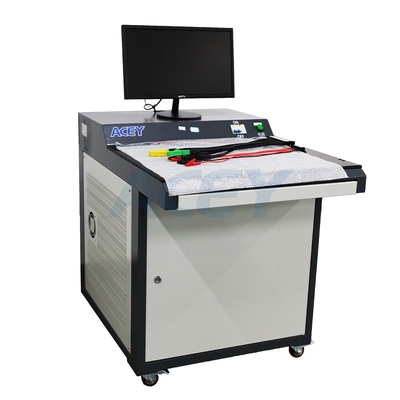

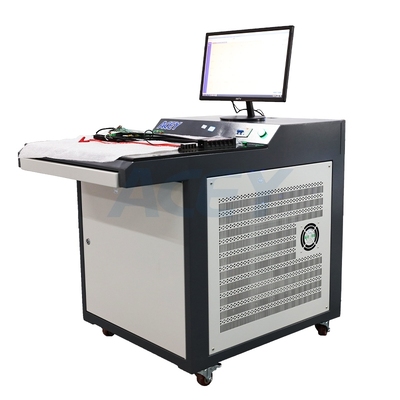

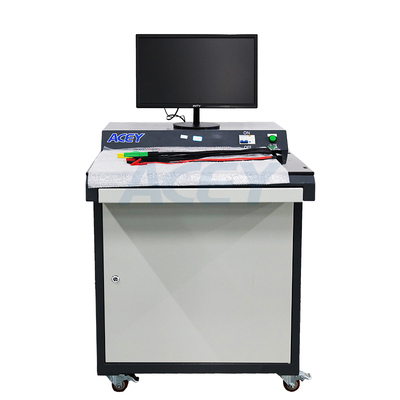

High Current 1–20S 200A Charge 300A Discharge BMS Tester Machine For Lithium Battery
ACEY-BP20-200A300A BMS Tester is designed for testing 1-20S battery management systems used in lithium battery pack manufacturing and assembly. It supports charge overcurrent protection testing up to 200A and discharge overcurrent protection testing up to 300A. The tester evaluates overcharge, overdischarge, overcurrent, short circuit protection and recovery functions, while measuring cell voltage, internal resistance, self-consumption, balancing current and balancing voltage. It features adjustable cell voltage simulation, programmable cycle testing from 1 to 9999 cycles, Excel data export and test log tracking. With RS232 computer communication and an MES system interface, it supports test data management and quality control for BMS boards used with lithium-ion, LiFePO4 and lithium cobalt oxide batteries.
BMS Testing: Supports battery management systems with 1-20 series cells.
Protection Testing: Tests overcharge, overdischarge, overcurrent, short circuit and protection recovery functions.
Current Testing: Supports charge overcurrent protection testing up to 200A and discharge overcurrent protection testing up to 300A.
Cell Simulation: Provides adjustable cell voltage simulation from 500mV to 5000mV.
Electrical Measurement: Measures cell voltage, internal resistance, self-consumption and balancing parameters.
Programmable Testing: Supports 1 to 9999 test cycles and configurable test sequences.
Data Management: Exports test data to Excel and records operation logs and abnormal events.
System Communication: Supports RS232 communication and an MES system interface.
Custom Functions: Active balancing, balancing current and communication protocol testing can be customized or selected as optional functions.
Parameter of the main loop test:
| Project | Parameter |
| Voltage | 100000mV |
| Voltage resolution | 1mV |
| Voltage accuracy | ±0.1% |
| Discharging current | 0.1A ~300A |
| Current resolution | 1mA |
| Current accuracy | ±(0.1%) |
| Other | The charging and discharging circuits are completely separated |
Parameter of every series cell:
| Project | Parameter |
| Output voltage of every cell | 500mV ~ 5000mV |
| Input voltage of every cell | 500mV ~ 5000mV |
| Voltage resolution | 1mV |
| Voltage accuracy | ±0.05% |
| Equalization current | 500mA |
Parameter of power Box(Overcurrent):
| Project | Parameter |
| Controllable analog current range | 0.1A -300A |
| Controllable analog current accuracy | ±0.1% |
| Maximum output voltage | 5000mV |
Other parameter:
| Project | Parameter |
| Consumption current measuring range | 1 ~ 5000uA |
| Consumption current measuring resolution | 0.1uA |
| Resistance | ACIR: 0-999mr |
| Protection time | Overcurrent protection time:0-999ms; Short circuit protection time:0-999us |
| 1 channel signal voltage output: | 500~5000mV |
| AD/DA | AD:16bit DA:16bit |
| Discharging model | CC |
| 24 analog cells | Input/output:500~5000mV, voltage accuracy:±0.1% |
| Communication rate | 2 channels SBS communication rate:10~100Kbps |
| Others | Voltage sample:0~5000mV accuracy:±0.1% |
| Protect function | Overall protection (including reverse connection protection, voltage lower protection, voltage upper protection, and current upper protection), CC charging protection (abnormal voltage trend protection, abnormal charging current fluctuation protection, abnormal voltage fluctuation protection), CC discharge protection (including Voltage trend abnormal protection, discharge current fluctuation abnormal protection, voltage fluctuation abnormal protection) |
| Communication | Interface RS232/DB9 Communication rate interface:38400 All communication ports of the equipment are isolated, with lightning protection design |
| circuit structure | Modular structure, can be replaced and repaired in time with spare parts and spare parts. |
| Machine architecture | Split cabinet |
| Safety level | EN60950,GB4943 |
| noise | As per IEC62040-3, ≤70dBA |
| Degree of protection | IP20 |
| Color | Subject to actual conditions |
| lightning protection | GB17626 level:II |
| Cooling | Forced air cooling, at least 20cm space between exit and entry |
| Start pulse voltage | Equipment testing, the maximum allowable pulse voltage at the time of starting the execution process ≤ (set the number of test strings * set the single voltage)*110%, T≤500uS； |
| Start pulse current | For equipment testing, the maximum allowable pulse current at the time of starting the overcurrent test process is less than or equal to the upper limit of the set overcurrent protection value*120%, T≤1mS |
| Wiring method | Spring crimping |
Q1. What types of batteries can this tester support?
ACEY-BP20-200A300A BMS Tester supports BMS boards used with lithium-ion, LiFePO4 and lithium cobalt oxide batteries. It is designed for battery management systems with 1 to 20 series cells.
Q2. What protection functions can this tester evaluate?
ACEY-BP20-200A300A BMS Tester evaluates overcharge, overdischarge, charge and discharge overcurrent, short circuit protection, protection recovery voltage and protection delay time. It also measures cell voltage, internal resistance, self-consumption, balancing current and balancing voltage.
Q3. Can this tester save test data and connect to an MES system?
ACEY-BP20-200A300A BMS Tester supports Excel test data export, operation log tracking and RS232 communication with a computer. An MES system interface is also supported for production data integration.
