High Current 1-24S 200A Charge 300A Discharge BMS Tester for Lithium Battery Pack Testing

High Current 1-24S 200A Charge 300A Discharge BMS Tester for Lithium Battery Pack Testing

Product Description

• 1-24 series battery management system tester, high degree of automation, fast testing speed and high testing accuracy. With test function of overcharge protection, overcharge recovery, overdischarge protection, overdischarge recovery, overcurrent protection (overcharge current and overdischarge current), internal resistance, self-consumption, short circuit protection, overcharge protection time, overcurrent protection time, overdischarge protection Time, balance current, balance voltage etc.
• It can test the BMS of MCN battery, LiFeO4 battery and cobalt acid battery.
• This machine is required to be connected to a computer, the system generally requires an XP system, the interface of tester and computer is RS232.

Product Features

1. Cycle: cycle times: 1 to 9999 times
2. Laboratory mode, can arbitrarily adjust the voltage value of a section
3. Can continuously provide charging and discharging current.
4. Using programming, the device carries out the number of cycles of each indicator of the protection board without interruption.
5. Log tracking, With log function, including the test of the entire process of operation records, abnormal records, can be used for the traceability of the test process.
6. Data processing, human-machine interface
7. Test data is saved in EXCEL file.
8. RS232 interface is used for the interface between the device and the host computer, which can ensure the stability and real-time data acquisition.
9. Accuracy calibration/software calibration
10. With sweeping code start function
11. MES system interface
12. Active equalization (can be customized)
13. Equalization current (customizable)
14. Communication protocol test (optional)

Parameter of the main loop test:

Parameter of every series cell:

Parameter of power Box(Overcurrent):

Other parameter:

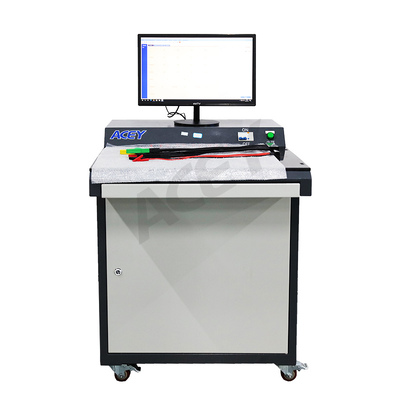

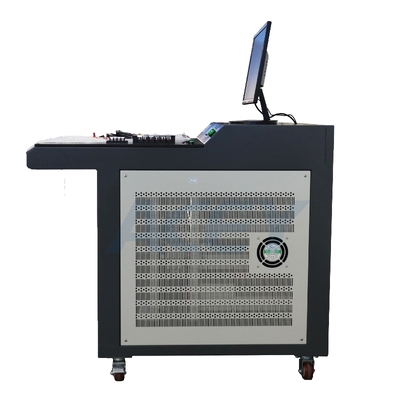

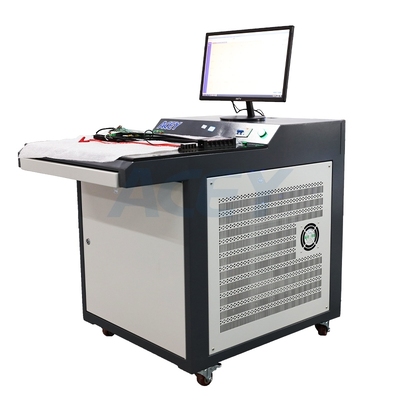

Product Display

FAQ

Q1: What types of batteries is this BMS tester compatible with?

A:The ACEY-BP24-200A300A BMS Tester is designed for testing battery management systems used with lithium-ion, LiFePO4, and lithium cobalt oxide batteries. It supports 1–24 series battery configurations and helps verify BMS protection, voltage monitoring, self-consumption, and balancing functions.

Q2: What are the charging and discharging current ratings of this BMS tester?

A:The ACEY-BP24-200A300A BMS Tester supports overcurrent protection testing up to 200A for charging and 300A for discharging. It is suitable for evaluating BMS protection thresholds and response times in battery pack assembly and quality control applications. The actual operating current range depends on the specific test function and configuration.

Q3:What protection functions can this BMS tester test?

A:The ACEY-BP24-200A300A BMS Tester can test overcharge protection, overcharge recovery, overdischarge protection, overdischarge recovery, charging and discharging overcurrent protection, short-circuit protection, and protection delay time. It also measures cell voltage, self-consumption current, internal resistance, balancing current, and balancing voltage to support BMS performance verification.
