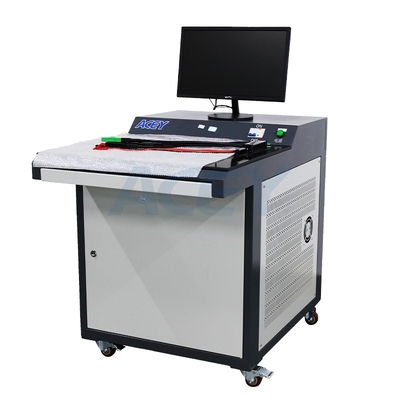

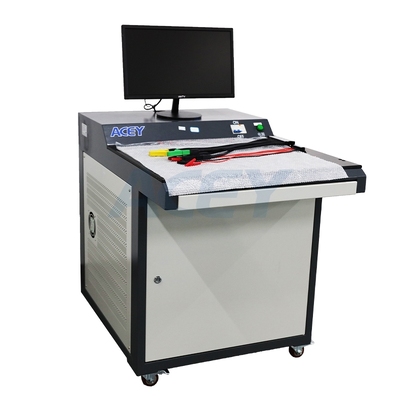

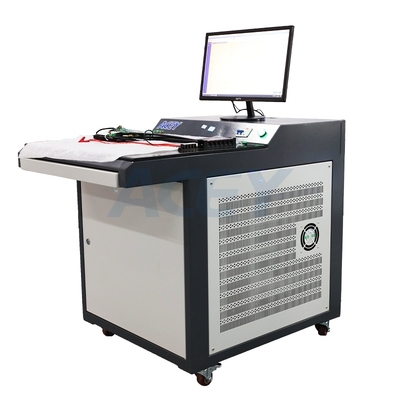

1-24S 100A Charge 150A Discharge BMS Tester for Battery Protection Board Cycle Testing
ACEY-BP24-100A150A BMS Tester is designed for testing battery management systems for lithium-ion, LiFePO4, and lithium cobalt oxide batteries. It supports 1-24S BMS testing, with charging overcurrent protection testing up to 100A and discharging overcurrent protection testing up to 150A. It tests overcharge, overdischarge, overcurrent, short circuit protection, recovery voltage, protection delay, cell self-consumption, internal resistance, balancing current, and balancing voltage. With 24 simulated cell voltage channels, adjustable test parameters, test log recording, Excel data export, barcode scan start, and MES connectivity, it supports BMS testing and quality inspection in battery pack production.
BMS Protection Testing: Tests overcharge, overdischarge, overcurrent, short circuit protection, and recovery functions.
Current Testing: Supports charging overcurrent protection testing up to 100A and discharging overcurrent protection testing up to 150A.
Cell Simulation: Provides 24 simulated cell channels with a voltage range of 500mV to 5000mV per channel.
Balancing Analysis: Measures balancing current, balancing voltage, and individual cell self-consumption.
Electrical Parameter Measurement: Supports AC internal resistance and cell voltage measurement.
Adjustable Test Settings: Configures protection thresholds, recovery voltage, and protection delay parameters.
Data Management: Records operation logs and exception records, with test data export to Excel.
Production Integration: Supports barcode scan start and MES system connection.
Computer Communication: Connects to a computer through an RS232 interface.
Equipment Protection: Includes reverse connection, overvoltage, undervoltage, and overcurrent protection functions.
Parameter of the main loop test:
| Project | Parameter |
|---|---|
| Voltage | 160000mV |
| Voltage resolution | 1mV |
| Voltage accuracy | ±0.1% |
| Discharging current | 0.1A ~150A |
| Current resolution | 1mA |
| Current accuracy | ±(0.1%) |
| Other | The charging and discharging circuits are completely separated |
Parameter of every series cell:
| Project | Parameter |
|---|---|
| Output voltage of every cell | 500mV ~ 5000mV |
| Input voltage of every cell | 500mV ~ 5000mV |
| Voltage resolution | 1mV |
| Voltage accuracy | ±0.05% |
| Equalization current | 500mA |
Parameter of power Box(Overcurrent):
| Project | Parameter | |
|---|---|---|
| Controllable analog current range | 0.1A -150A | |
| Controllable analog current accuracy | ±0.1% | |
| Maximum output voltage | 5000mV | |
Other parameter:
| Project | Parameter |
|---|---|
| Consumption current measuring range | 1 ~ 5000uA |
| Consumption current measuring resolution | 0.1uA |
| Resistance | ACIR:0-999mr |
| Protection time | Overcurrent protection time:0-999ms; Short circuit protection time:0-999us |
| 1 channel signal voltage output: | 500~5000mV |
| AD/DA | AD:16bit DA:16bit |
| Discharging model | CC |
| 24 analog cells | Input/output:500~5000mV, voltage accuracy:±0.1% |
| Communication rate | 2channels SBS communication rate:10~100Kbps |
| Others | Voltage sample:0~5000mV accuracy:±0.1% |
| Protect function | Overall protection (including reverse connection protection, voltage lower protection, voltage upper protection, and current upper protection), CC charging protection (abnormal voltage trend protection, abnormal charging current fluctuation protection, abnormal voltage fluctuation protection), CC discharge protection (including Voltage trend abnormal protection, discharge current fluctuation abnormal protection, voltage fluctuation abnormal protection) |
| Communication | Interface RS232/DB9 Communication rate interface:38400 All communication ports of the equipment are isolated, with lightning protection design |
| circuit structure | Modular structure, can be replaced and repaired in time with spare parts and spare parts. |
| Machine architecture | Split cabinet |
| Safety level | EN60950,GB4943 |
| noise | As per IEC62040-3, ≤70dBA |
| Degree of protection | IP20 |
| Color | Subject to actual conditions |
| lightning protection | GB17626 level:II |
| Cooling | Forced air cooling, at least 20cm space between exit and entry |
| Start pulse voltage | Equipment testing, the maximum allowable pulse voltage at the time of starting the execution process ≤ (set the number of test strings * set the single voltage)*110%, T≤500uS； |
| Start pulse current | For equipment testing, the maximum allowable pulse current at the time of starting the overcurrent test process is less than or equal to the upper limit of the set overcurrent protection value*120%, T≤1mS |
| Wiring method | Spring crimping |
Q1: What types of batteries can this BMS tester support?
A: The ACEY-BP24-100A150A BMS Tester supports BMS testing for lithium-ion, LiFePO4, and lithium cobalt oxide battery applications, with configurations from 1S to 24S.
Q2: What are the charging and discharging current ranges of this BMS tester?
A: The ACEY-BP24-100A150A BMS Tester supports charging overcurrent protection testing up to 100A and discharging overcurrent protection testing up to 150A. Its detailed test functions include adjustable charging and discharging current settings, subject to the specified test channel and operating conditions.
Q3: What protection functions can this BMS tester evaluate?
A: The ACEY-BP24-100A150A BMS Tester evaluates overcharge, overdischarge, overcurrent, short circuit protection, recovery voltage, protection delay, cell self-consumption, balancing current, and balancing voltage. It also supports test log recording, Excel data export, barcode scan start, and MES system connection.
