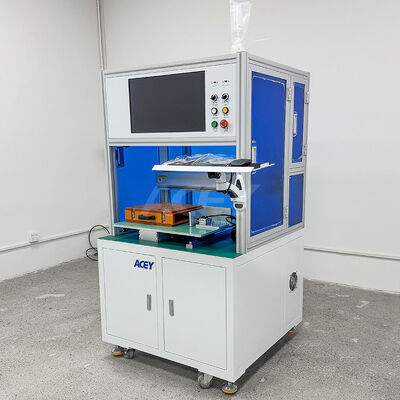

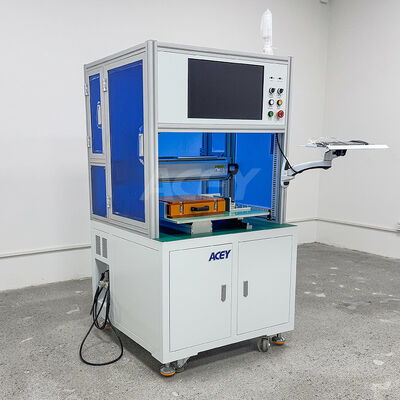

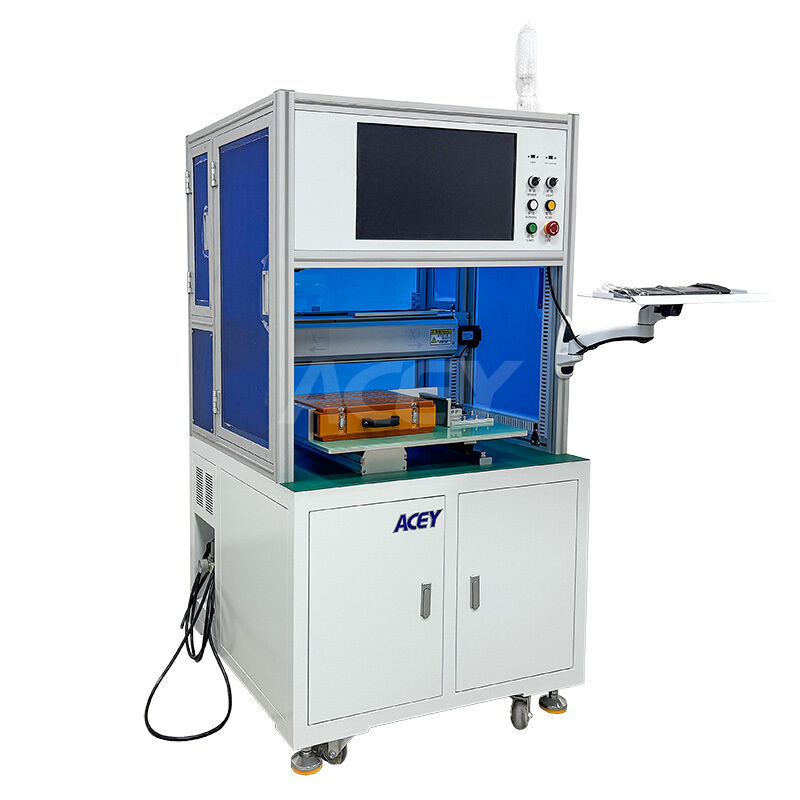

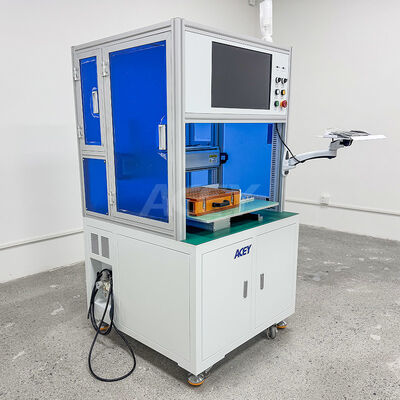

Single-sided Automatic Battery Spot Welding Machine For Lithium Battery Pack

ACEY-S200B represents the next generation of single-sided battery assembly technology. Utilizing a sophisticated PC-based intelligent control architecture, this system moves beyond the limitations of traditional PLC controllers to offer unmatched precision and operational flexibility. It is specifically engineered for high-speed manufacturing environments where rapid model changeovers and detailed production analytics are critical. By integrating high-precision servo motors with an intuitive software interface, the S200B ensures consistent weld quality for various cylindrical lithium battery packs.

• Immersive User Interface: Equipped with a 21.5-inch high-definition monitor for streamlined workflow management
• Flexible Programming Suite: Offers three effortless methods for program creation: DXF/CAD file import, automated array generation, and manual coordinate input
• Advanced Thermal Regulation: The welding head supports both air and water cooling to prevent heat-related degradation of the welding tips
• Rapid-Response Servo System: Achieves an impressive throughput of 2,500 cells per hour, with individual weld cycles taking ≤0.35 seconds
• Global Quality Components: Key mechanical and electronic parts are imported from Japan and Taiwan, ensuring a service life twice as long as standard alternatives
• Intelligent Error Mitigation: Real-time monitoring for sparks, voids, or missed spots, featuring an automatic "emergency stop" and fault-tracking log
• Seamless Process Recovery: Features breakpoint memory, allowing the machine to continue its task precisely after a power interruption or manual pause
• Precision Electrode Tuning: Includes real-time length compensation and one-touch offset calibration to maintain sub-millimeter accuracy

• Dimensions (L×W×H, actual may vary): 900 mm × 900 mm × 1600 mm
• Weight: Approx. 280 kg
• Exterior color: Computer white (customizable upon request)
• Operating temperature: -30°C to 50°C
• Humidity: ≤90%
• Power supply: 220V, 50/60Hz
• Floor load capacity: ≤200 kg/m²
• Grounding type: Direct grounding
• Installation site: Pollution-free with no strong electromagnetic interference, flat, vibration-free, and impact-free
• Noise level: ≤80 dB
