8 Channels Automatic Prismatic Battery Sorter For Battery Pack Production Line

Name: 8 Channels Automatic Prismatic Battery Sorter For Battery Pack Production Line
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-PS8S
Price: 8,482.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-PS8S
MOQ:	1 Set
Price:	USD 3630~13335/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

1 Year Warranty With Lifetime Support

After-sales Service:

24/7 Technical Support

Number Of Channels:

8 Channels

Sorting Speed:

16 Ppm

Compatible Battery:

Prismatic Cells

Weight:

477Kg

Dimensions:

L1955mm*W1624mm*H1596mm

Power Supply:

220V-50Hz/60Hz

Packaging Details:

Plywood Case

Highlight:

8 channel prismatic battery sorter

automatic battery sorting machine

battery pack production line sorter

Product Description

8 Channels Automatic Prismatic Battery Sorter For Battery Pack Production Line

High-efficiency automated solution for post-production sorting in lithium battery manufacturing

Product Overview

The ACEY-PS8S prismatic battery cell sorting machine integrates an industrial computer, PLC, high-precision servo motors, a high-accuracy internal resistance tester, and a high-speed industrial camera into its control system. This delivers both excellent accuracy and rapid processing speed.

The equipment is particularly well suited for applications involving power batteries, 3C consumer electronics batteries, and energy storage. It fulfills the exact cell grouping requirements of various new energy battery packs while complying with international safety standards. By offering intelligent automation, the system supports lithium battery manufacturing in transitioning toward Industry 4.0 and serves as a key solution for battery manufacturers looking to enhance their core competitiveness.

Equipment Parameters

Item	Description
Applicable cell type	Prismatic battery cells
Compatible dimensions	Length: 100-300 mm
Sorting levels	7 sorting bins + NG bin
Control system	PLC control system with linear motion modules
Feeding & testing	Manual loading with automatic inspection (internal resistance tester optional)
Code scanning	Integrated scanning function supporting QR codes and barcodes
Automation level	Fully automated sorting process with minimal manual intervention
MES interface	Supports MES integration for real-time recording of cell QR codes, test data, and SPC report generation
Sorting capacity	Up to 1,000 cells per hour per machine, over 3× higher efficiency than manual sorting

Equipment Specifications

Overall dimensions (L × W × H, subject to actual equipment): 1955 × 1624 × 1596 mm
Machine weight: approximately 477 kg
Exterior color: computer white (customizable upon request)
Total power consumption: ≤ 1.5 kW

Operating Environment Requirements

Ambient temperature: −30°C to 50°C
Relative humidity: below 90%
Compressed air pressure: 0.5-0.6 MPa
Power supply: AC 220 V, 50 Hz / 60 Hz
Floor load capacity: ≤ 200 kg/m²
Grounding type: direct grounding
Installation site: free from pollution and strong electromagnetic interference
Installation conditions: level surface, without vibration or mechanical shock
Operating noise level: ≤ 80 dB

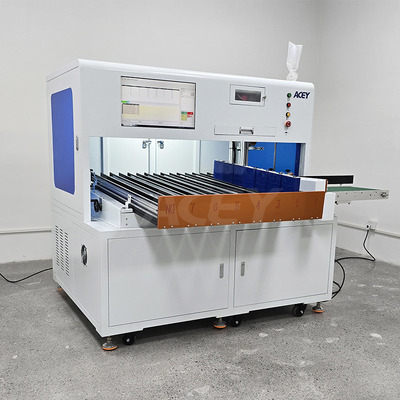

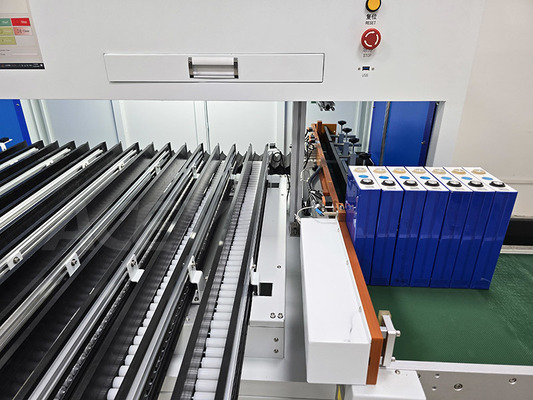

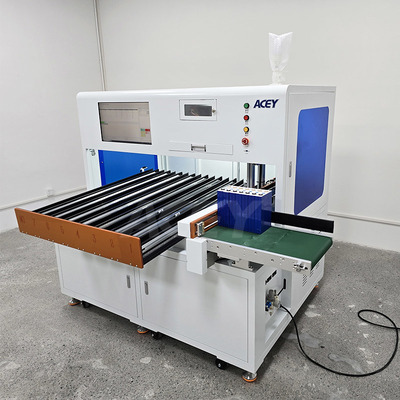

Product Display
