10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting

10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting

Product Description

ACEY-PS8S prismatic battery sorting machine is an automated solution designed for the downstream sorting stage of lithium battery production. The system combines an industrial computer, PLC control, high-precision servo drives, and a dedicated battery internal resistance tester to ensure accurate measurement and high-speed operation.

It is widely used in power battery, 3C consumer electronics, and energy storage applications, supporting precise cell matching for various new-energy battery packs while meeting relevant international safety requirements.

Equipment Parameter

• Applicable cell type: prismatic battery cells
• Compatible dimensions: length 100–300 mm; width 20–85 mm; height 100–300 mm
• Sorting levels: 9 sorting bins plus NG bin
• Control system: PLC-based control (PLC brand selectable upon request)
• Feeding and testing: manual loading with integrated testing (optional internal resistance testers from Hioki or HOPETECH; other brands available on request)
• Code scanning: integrated scanning function supporting QR codes, barcodes, and similar formats
• Fully automated sorting process to minimize manual intervention
• MES interface available for real-time recording of cell QR codes, test data, and SPC analysis report generation
• Single-machine throughput up to 1,000 cells per hour, achieving more than three times the efficiency of manual sorting

Equipment Specification

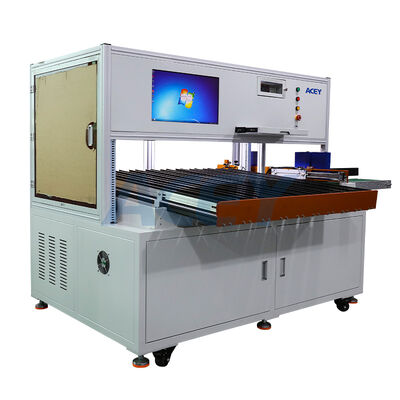

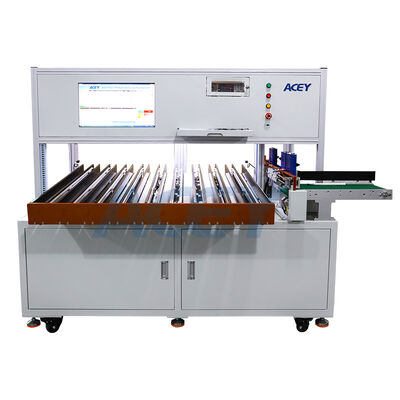

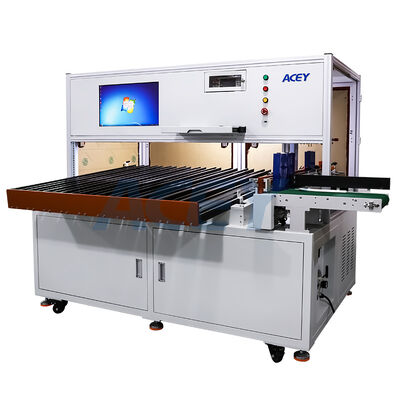

Product Display
