| Nombre De La Marca: | ACEY |
| Número De Modelo: | ACEY-DC-1 |
| MOQ: | 1 juego |
| Precio: | USD 600 /Set |
| Condiciones De Pago: | T/T, PayPal, L/C, Western Union, MoneyGram |
| Capacidad De Suministro: | 500 sistemas/mes |

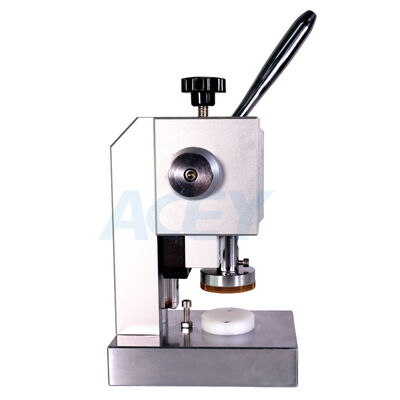

Portable Flexible Battery Material Disc Cutter Battery Electrode Punching Machine
Product Description
ACEY-DC-1 is dedicated to the punching process. It is equipped with different specifications of molds to perform punching and blanking processes on sheet materials. The design of the whole machine is small and exquisite, and it is flexible and convenient to use. It is very suitable for punching and blanking materials such as battery positive and negative sheets, separators and other materials with a thickness of 0.005-0.5mm.
Product Features
Technical Parameter
| Punching size: | optional Ф3mm～Ф24mm according to customer's specification | ||||||
| Punching pressure: | ≥300Kg | ||||||
| The stroke of the final axis: | ≥25mm | ||||||
| Flushable material: | 0.005~0.5mm thick battery material sheet | ||||||
| Punching accuracy: | ±0.1 mm | ||||||
| Overall dimensions (L* W*H) (mm): | L125×W145×H245mm | ||||||
| Weight: | 10Kg; | ||||||
| Receiving box: | anti-static, ABS material, the remaining material is discharged | ||||||
Product Display
