| Brand Name: | ACEY |
| Model Number: | ACEY-BA10060-6 |
| MOQ: | 1 Set |
| Price: | USD 1980~26200/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union |
| Supply Ability: | 200 Sets/Month |

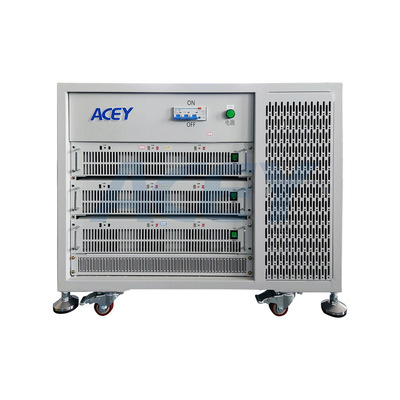

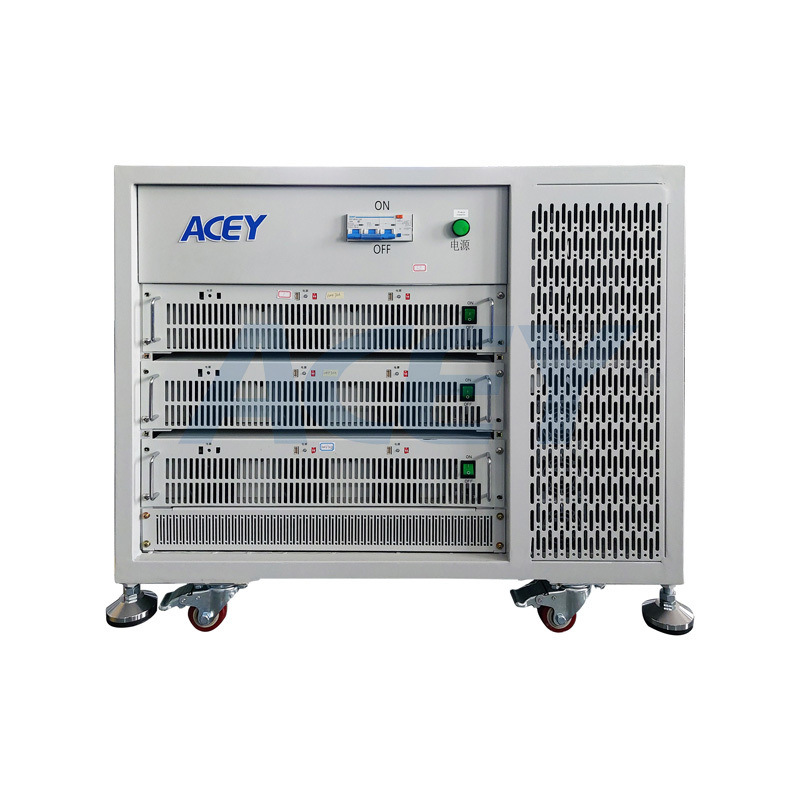

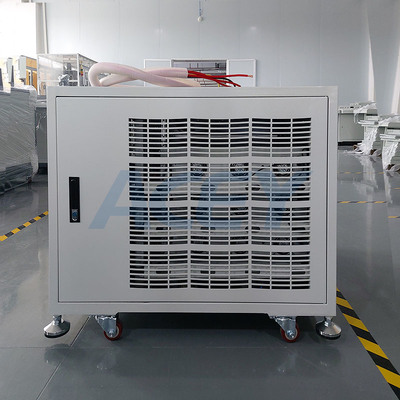

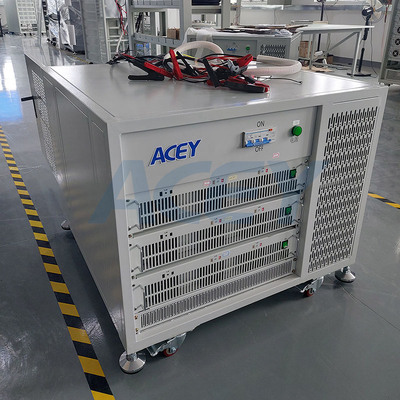

The regenerative battery pack test system is designed for a comprehensive range of battery pack aging tests and is compatible with various battery types, including ternary, lithium iron phosphate, lead-acid, nickel-metal hydride, and nickel-cadmium. It supports both same-port and sub-port battery packs, with a voltage range of 12V to 100V and adjustable charging and discharging current from 100mA to 60A.
The equipment is ideal for battery manufacturing enterprises conducting module testing during production, as well as for high-current charging and discharging detection in EV/HEV power battery systems. It is also suitable for high-current charge and discharge testing, battery performance assessment, and routine maintenance of battery modules in battery factories and charging stations.
| NO | Item | Function Requirement |
|---|---|---|
| 1 | Channel | 6 |
| 2 | Action Mode | Completely independent |
| 3 | Main channel work mode | Charging: constant current and constant voltage charging (CCCV) & CC. Discharge: constant current discharge (CD) & CP. Resting, stopping. |
| Main channel test abort condition | Time, voltage, current, capacity, etc. | |
| 4 | Voltage of main channel | Voltage range of charge & discharge: 12V–100V Accuracy: ±(0.05%RD+0.05%FS) Resolution: 1mV |
| Current of main channel | Maximum output current: Discharge & Charge 60A Minimum output current: 100mA Accuracy: ±(0.05%RD+0.05%FS) Resolution: 1mA | |
| Power | Output: Single channel continuous operation maximum power 0.6KW | |
| Auxiliary channel parameter cut-off function | The main channel step can be set to stop or switch when the auxiliary channel signal reaches certain conditions. | |
| 5 | Data display method | Loop List: cycle number, charge/discharge capacity, charge/discharge efficiency, charge/discharge energy, charge/discharge average voltage, etc. Process List: process serial number, operation mode, process time, capacity, energy, median voltage, termination voltage, termination current, etc. Detailed List: record serial number, system time, accumulated time, voltage, current, energy, power, etc. |
| 6 | Data export method | The data can be exported to EXCEL and chart files, which can provide a variety of data analysis curves such as charging and discharging efficiency, charging and discharging curves, voltage, capacity, current time characteristics, etc., and the curves can be imported into EXCEL. |
| 7 | Curve Type | X coordinate: total time, charging and discharging capacity, cycle times, etc., can be set freely. Y coordinate: total voltage, current, capacity, single body temperature, charge/discharge capacity, single body voltage, etc., can be set freely. |

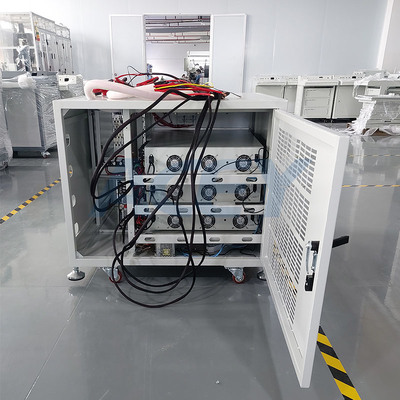

| 8 | Test channel and battery pack connection method | Alligator clamp |
| 9 | Equipment testing environment and technical requirements | Single cabinet requires 30KW 380V three-phase four-wire power configuration, ventilation and dry plant. Working environment: temperature -10℃～40℃ / humidity: 10%～90% |
It supports aging and charge-discharge testing for battery packs rated up to 100V, including LiFePO4 and ternary lithium battery packs, subject to the machine's configuration.
The machine supports a maximum voltage of 100V and charging and discharging currents of up to 60A, making it suitable for battery pack performance and cycle testing.
It recovers energy released during battery discharge and feeds it back to a compatible power system, reducing energy waste compared with conventional energy-dissipation testing.
