| Brand Name: | ACEY |
| Model Number: | ACEY-BA60100-4 |
| MOQ: | 1 Set |
| Price: | USD 4660~16600Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union |
| Supply Ability: | 200 Sets/Month |

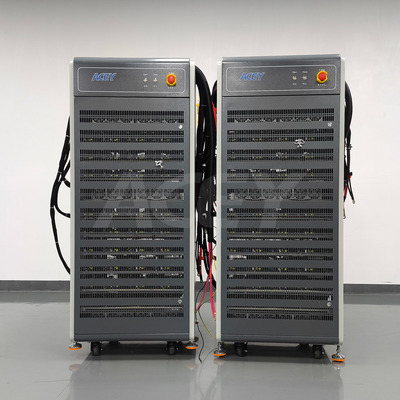

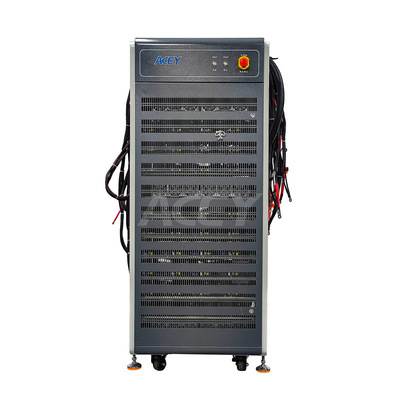

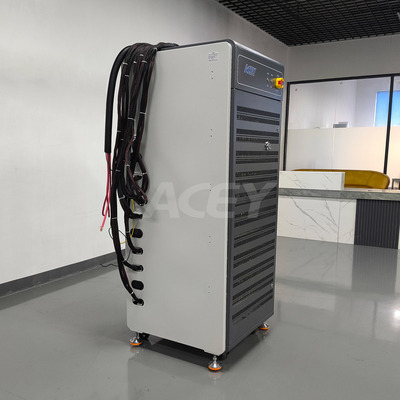

The ACEY-BA60300-16 is a high-performance regenerative battery pack charge-discharge tester designed for production testing, quality inspection, and life cycle evaluation of lithium battery packs. With a voltage range of 10V-60V and a charge/discharge current capability of 300A, the system accurately measures battery pack performance while feeding discharge energy back to the power grid, significantly reducing operating costs.
Each testing channel operates independently, enabling different battery packs to run customized testing programs simultaneously. The equipment is suitable for long-term cycling, capacity verification, performance validation, and aging tests for EV batteries, energy storage batteries, and industrial battery packs.
| Item | Specification |
|---|---|
| Channel | 6 |
| Test Abort Condition | Voltage, current, time, capacity, temperature, and custom conditions |
| Main Channel Parameters | Voltage Range: 10V ~ 60V (charge & discharge) Voltage Accuracy: ±(0.1%RD + 0.1%FS) Voltage Resolution: High resolution (system-level precision) Current Range: 100 mA ~ 300 A Current Accuracy: ±(0.1%RD + 0.1%FS) Current Resolution: High resolution (system-level precision) Power Output: High power output (dependent on system configuration) Auxiliary Channel Function: Cut-off protection and monitoring support |
| Control Program | Programmable test steps with customizable logic and multi-cycle nesting |
| Data Display Method | Real-time monitoring via PC software (voltage, current, capacity, temperature, etc.) |
| Data Export Method | Exportable to Excel and chart formats; supports analysis of efficiency, curves, and time characteristics |
| Curve Type | X-axis: time, capacity, cycles (configurable) Y-axis: voltage, current, capacity, temperature, etc. (configurable) |
| Connection Method | Alligator clamp connection to battery pack |
| Operating Environment | Power supply: 30kW, 380V, three-phase four-wire Temperature: -10℃ ~ 40℃ Humidity: 10% ~ 90% (non-condensing) |
