Automatic CCD Tester for Cylindrical Lithium Battery Electrode Detection with Conveyor System

Automatic CCD Tester for Cylindrical Lithium Battery Electrode Detection with Conveyor System

Product Description

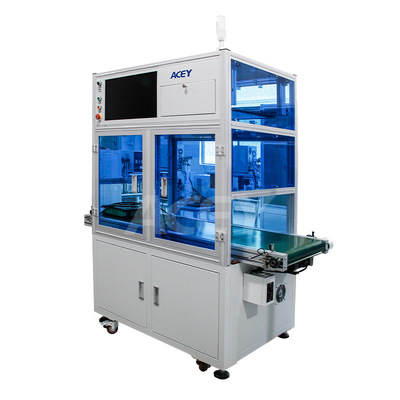

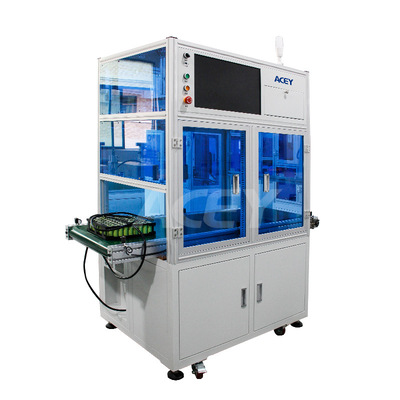

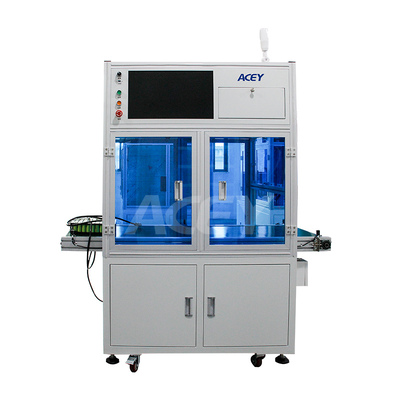

ACEY-CCD01C CCD Visual Inspection Machine is designed for automatic positive and negative electrode detection of cylindrical lithium battery cells in battery pack assembly lines. Equipped with a smart camera, industrial computer, and conveyor system, it identifies cell polarity and detects NG cells, with an inspection speed of approximately 1 second per cell.

Process Flow

The cell enters the detection area → Sampling scan → Positive and negative detection → NG automatic detection → OK

Product Features

• Automatic Polarity Detection: Detects positive and negative electrodes of cylindrical lithium battery cells.

• Conveyor System: Supports online inspection in battery pack assembly lines.

• CCD Vision System: Equipped with an industrial computer and smart camera.

• Fast Inspection: Approximately 1 second per cell.

• Positioning Accuracy: ±0.1mm repeat positioning accuracy.

• Customizable Travel: XY-axis stroke of 1200 × 500mm.

Main Technical Parameter

Product Display

FAQ

Q1: What does a CCD tester detect in cylindrical lithium battery cells?

A:  ACEY-CCD01C CCD Tester automatically detects the positive and negative electrodes of cylindrical lithium battery cells to verify polarity orientation and identify NG cells.

Q2: Can a CCD tester be used in an automatic battery pack assembly line?

A:  ACEY-CCD01C CCD Tester uses a conveyor-based inspection method and is suitable for online polarity detection in cylindrical lithium battery pack assembly lines.

Q3: What is the inspection speed and positioning accuracy of the CCD tester?

A:  ACEY-CCD01C CCD Tester has an inspection efficiency of approximately 1 second per cell and a repeat positioning accuracy of ±0.1mm.
