High-efficiency Prismatic Battery Module Stacking And Pressing Machine

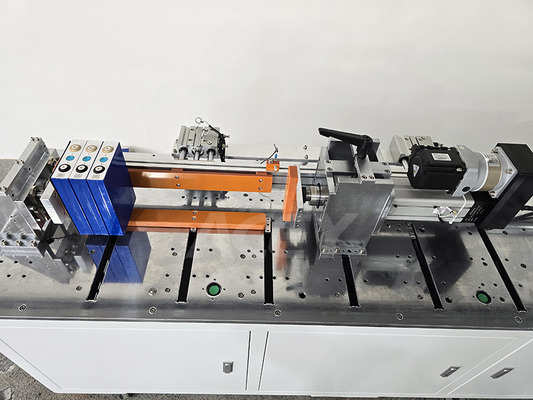

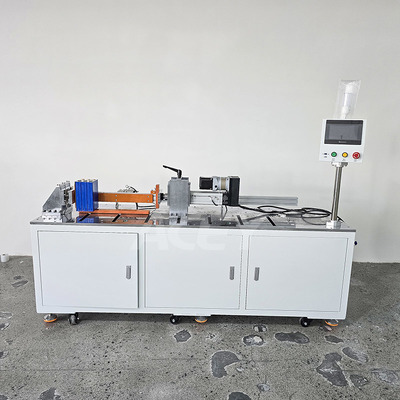

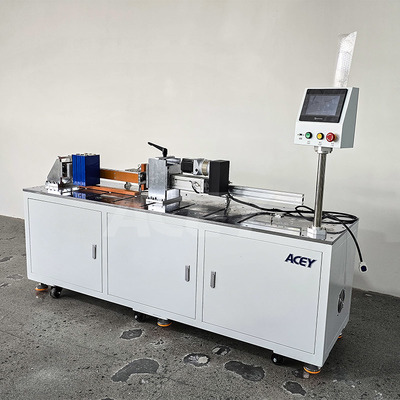

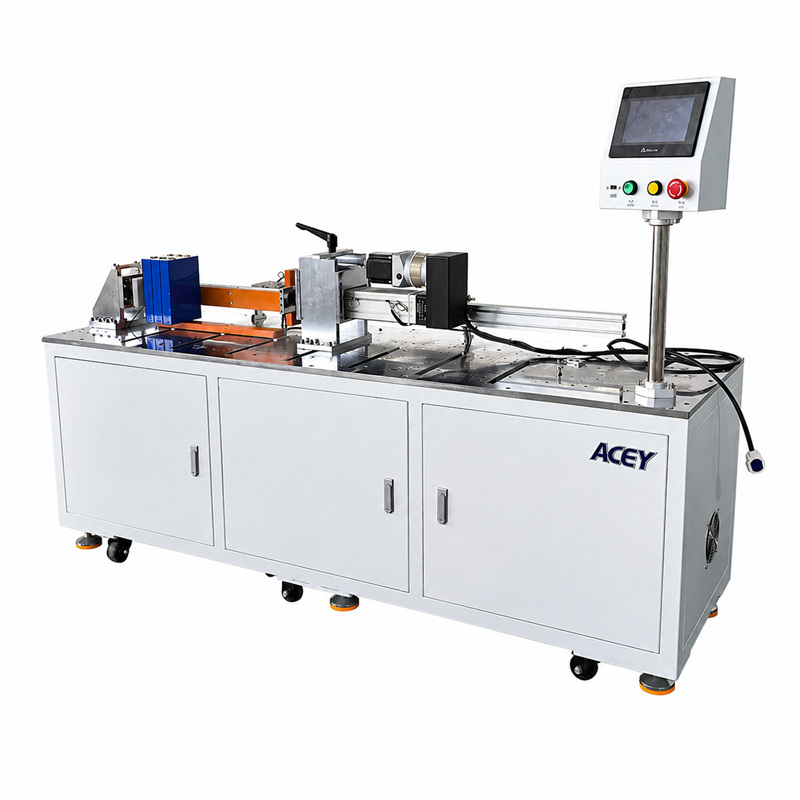

The ACEY-SP1200 Prismatic Battery Cell Stacking & Compression Machine is engineered for precise stacking, alignment, and compression of prismatic lithium battery cells during module assembly. This system is extensively utilized in energy storage and electric vehicle battery pack production lines.

Operators manually position end plates, thermal insulation plates, and individual cells onto the stacking platform in sequence. Upon completion of stacking, the system activates automatically. A PLC-controlled servo electric cylinder executes the compression process with real-time feedback from pressure sensors, automatically halting when preset force or stroke limits are achieved.

Following compression, steel band strapping is performed manually. Once fastening is complete, the cylinder returns to standby position, concluding the stacking and compression cycle.

• PLC control system ensures stable and reliable operation
• Servo electric cylinder delivers smooth and precise motion
• Real-time monitoring of force and displacement
• Dual safety protection through force and stroke limits
• Overload alarm with buzzer and warning light activation
• Two-hand start mechanism enhances operator safety
• Adjustable compression stroke for different module sizes
• High-precision pressure control with accuracy within 0.5-1 kg
