| Brand Name: | ACEY |
| Model Number: | ACEY-CCD01C |
| MOQ: | 1 Set |
| Price: | USD 7280~8490/Set (negotiable) |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

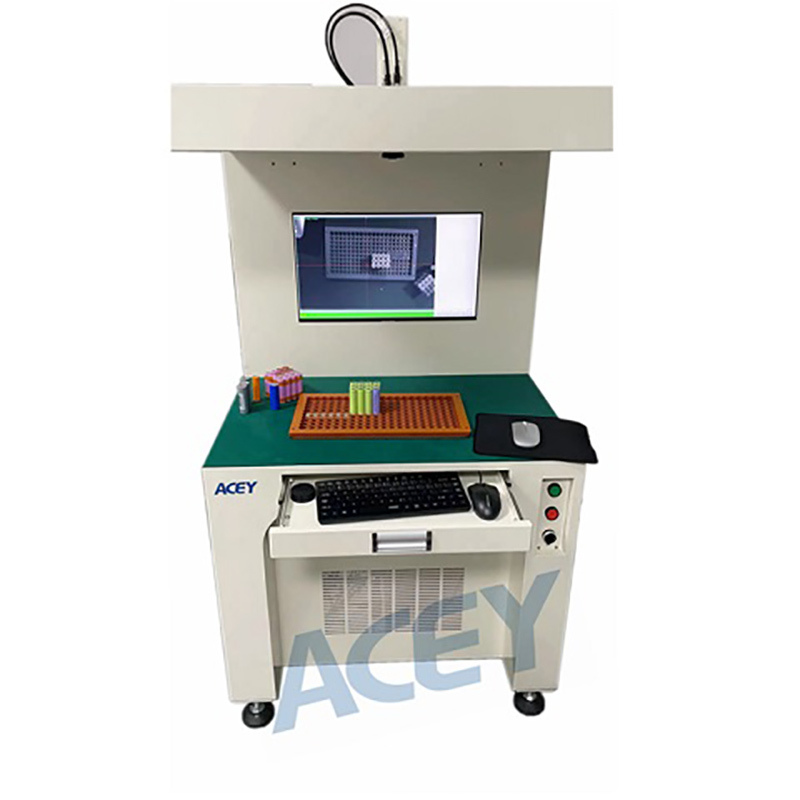

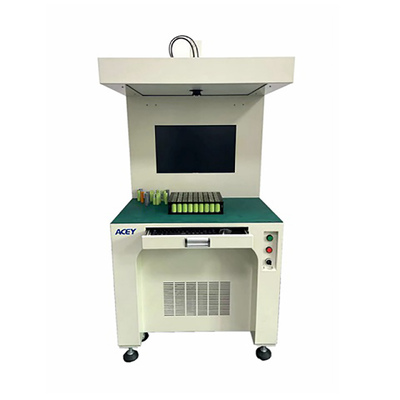

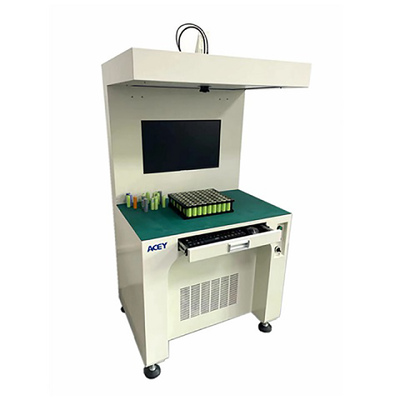

The ACEY-CCD01C Automatic CCD Vision Inspection Machine is engineered to automatically inspect the polarity and orientation of cylindrical lithium battery cells prior to spot welding and battery pack assembly. Utilizing industrial-grade CCD camera technology and intelligent image processing, the system precisely identifies positive and negative terminals to prevent reverse polarity assembly and enhance production safety.
The machine automatically captures battery images, compares them against preset standards, and delivers OK or NG results within one second. Defective batteries can be automatically marked or rejected, significantly reducing manual inspection while improving consistency and production efficiency.
| XY Axis Stroke | 1200*500 (customizable) Effective working travel: 400*300mm |
|---|---|
| Motor Transmission Speed | 300mm/S |
| Operating System | Industrial computer + smart camera |
| Detection Method | Assembly line style |
| Repeated Positioning Accuracy | ±0.1mm |
| Detection Efficiency | 1 second/PCS |
| Machine Power | 500W |
| Machine Weight | 150KG |
| Maximum Bearing Weight | 60KG |
| Input Power | Single-phase AC 220V/50Hz |
| Dimensions | L1370*W830*H1870mm |
It supports cylindrical lithium battery cells including 14500, 18650, 21700, 26650, 32700 and other customized sizes.
The system automatically detects battery polarity, terminal orientation and placement before spot welding.
Yes. NG batteries can be marked, stopped or automatically rejected according to production requirements.
Yes. The machine is designed for automatic battery pack assembly lines.
It uses an industrial CCD vision camera with intelligent image processing software.
