Automation Ultrasonic Aluminum Wire Bonding Machine for Battery Pack Assembly

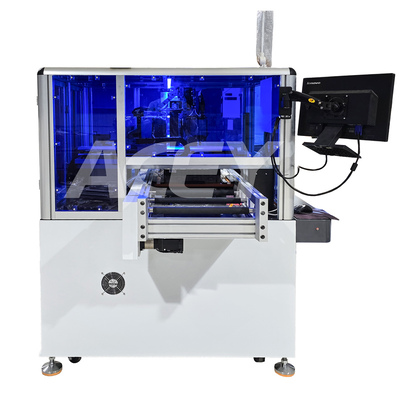

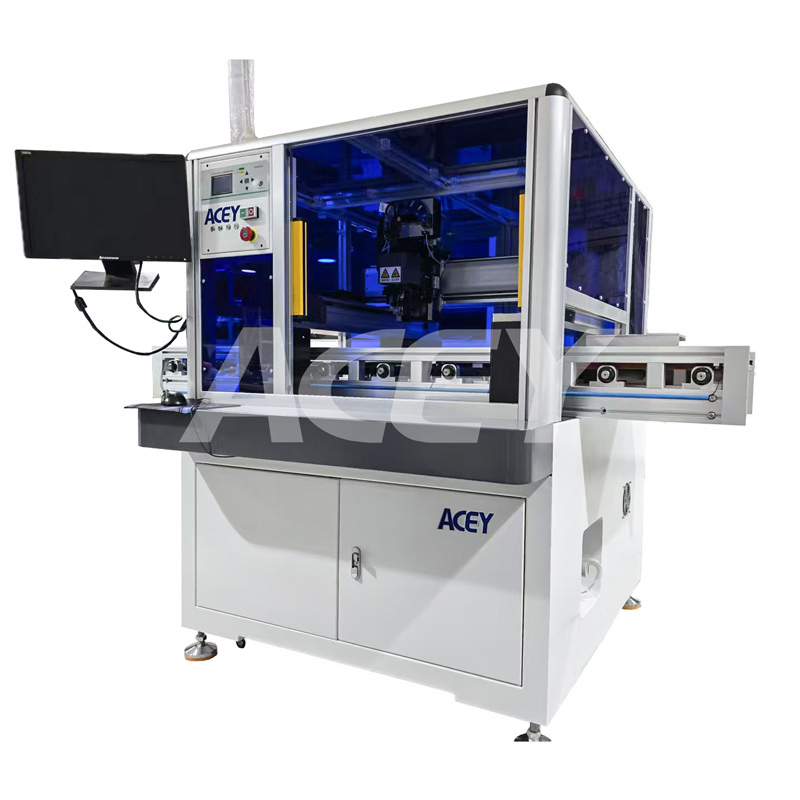

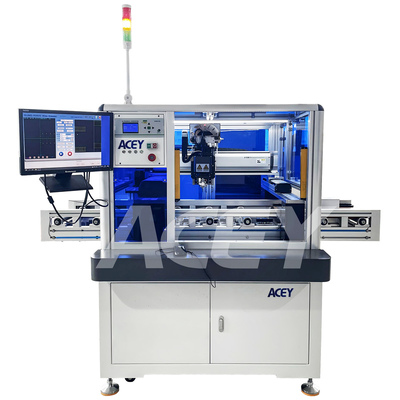

ACEY-3753A Automatic ultrasonic aluminum wire bonding machine features a rotating welding head design and is equipped with a digital fully automatic frequency tracking ultrasonic system along with digital pressure regulation. It incorporates a high-precision image recognition device and a fully closed-loop motion control system, enabling fully automated operation for coarse aluminum wire bonding.

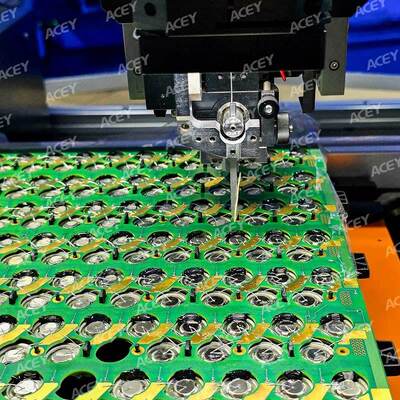

This machine is widely used for welding various cylindrical and prismatic lithium batteries, including models such as 18650, 21700, and 26800, and supports customized adaptation to suit different battery types.

• Advanced image recognition and automatic positioning technologies achieve precise and automated alignment of solder joints
• Powerful and robust digital ultrasound system ensures stable and reliable solder joint quality
• Fully automatic frequency tracking ultrasonic system combined with optimized welding head design guarantees welded joint quality
• Original digital pressure control system delivers constant pressure output, ensuring consistency across solder joints
• Precision mechanical transmission mechanism, reliable industrial computer, and proprietary software ensure accurate welding positioning
• Multiple fault alarm and shutdown functions significantly reduce defect rates and improve production output
• Computer-controlled English-language operation interface allows quick operator training and multi-machine management

• Manual loading (or via manipulator) with automatic identification, positioning, bonding, and unloading
• Specifically designed for bonding production of customer-designated battery models
• Adaptation for other product types requires modifications based on actual conditions
• Main components include frame assembly, XYZC feeding assembly, automatic feeding mechanism, wire feeding mechanism, jig positioning and pressing assembly, welding head mechanism, and console
• X axis uses imported linear motor; Y and Z modules driven by precision ball screws with ±0.02mm repeat positioning accuracy
• Control system employs industrial computer plus motion control card for servo motor operation
• Quick-clamp clamping and one-button startup for easy and safe material handling
