| Brand Name: | ACEY |
| Model Number: | ACEY-HTM800 |
| MOQ: | 1 Set |
| Price: | USD 3280~3418/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

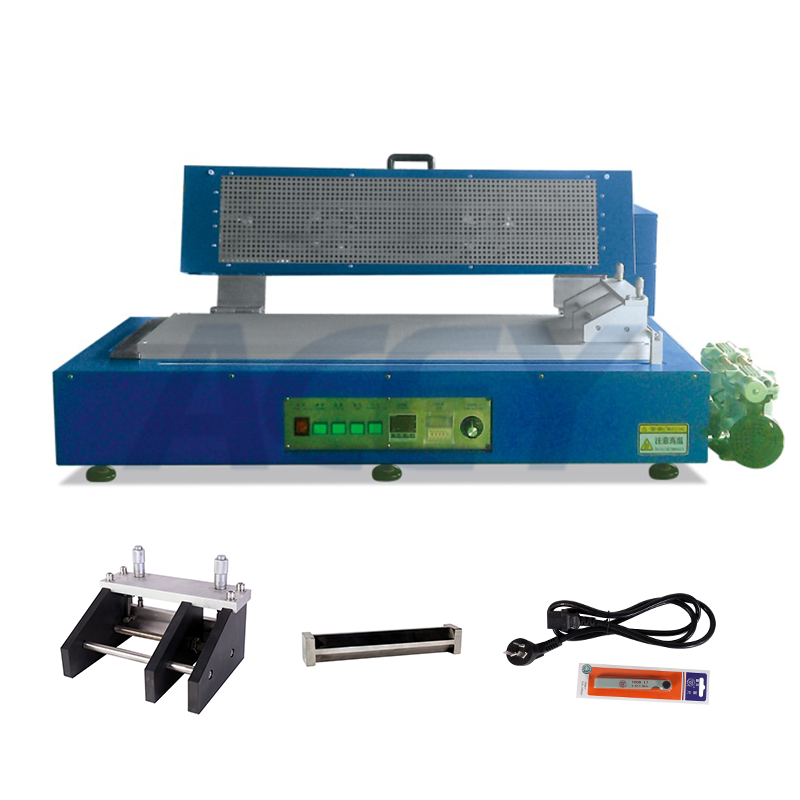

The ACEY-HTM800 is a cast coating machine with an 800mm working length, supplied with a vacuum suction cup and an oil‑free vacuum pump. The scraper mechanism enables the production of long, thick films. A proprietary automatic propulsion system allows for smooth coating application on virtually any substrate within a width of 150mm and a length of 800mm. This machine represents an ideal tool for low‑cost research and development of electrode materials used in 18650 batteries.
| Film coating speed | 0～120mm/sec |
| Vacuum plate | Aluminum plate with vacuum |
| Vacuum plate size | L900mm×W200mm×H32mm |
| Scraper adjustable range | 0～3.5mm |
| Heating drying system | Room temperature～130℃, digital display temperature controller, accuracy ± 1℃ |
| Power supply | 220V/50Hz |
| Power | 1.8KW |
| Weight | 70KG |
| Dimensions | L1000mm×W355mm×H325mm |
