High-Accuracy NDJ Display Digital Rotational Viscometer For Battery Electrode Slurry

Brand Name:	ACEY
Model Number:	NDJ-5T/8T/9T
MOQ:	1 Set
Price:	USD 680~709/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Input Power:

AC 220V / 50Hz

Display Mode:

5 Inch Color Touch Screen

Speed (r/min):

0.3/0.6/1.5/3/6/12/30/60

Repetitive Error:

±0.25% (Newtonian Liquid)

Measuring Range:

1～2,000,000

Dimensions:

300 × 300 × 450(mm)

Place Of Origin:

China

Warranty:

1 Year Warranty With Lifetime Support

After-sales Service:

24/7 Technical Support

Packaging Details:

Plywood Case

Highlight:

digital rotational viscometer for battery slurry

NDJ display viscometer with high accuracy

cylindrical cell assembly viscometer

Product Description

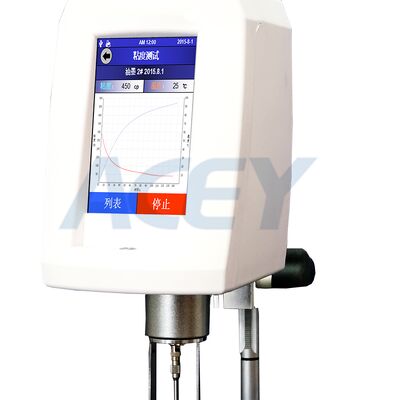

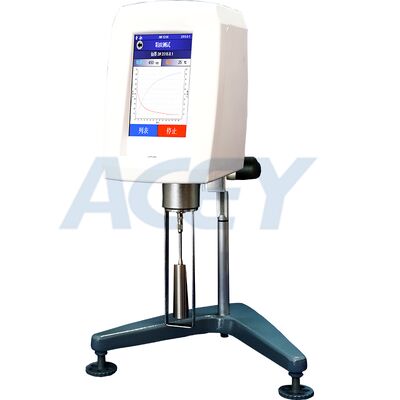

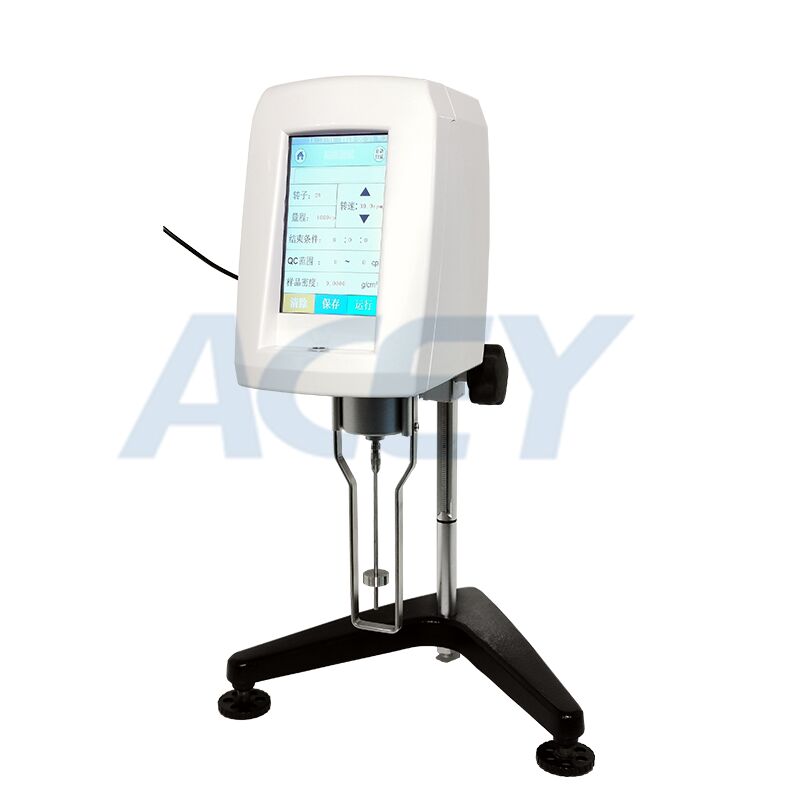

High-Accuracy NDJ Display Digital Rotational Viscometer For Battery Electrode Slurry

The portable T-series rotary viscometer integrates touchscreen technology with modern high-tech design, enabling fast, accurate, and convenient viscosity measurement for battery electrode slurry applications.

Instrument Overview

This advanced viscometer features 30 self-built test programs, allowing users to quickly and accurately obtain sample viscosity and related data. The 5-inch large color touchscreen provides comprehensive and intuitive display of various parameters and operating conditions.

Key Advantages

Multiple measurement parameters with rich display content
Convenient operation with intuitive readings
High measurement accuracy with stable speed performance
Strong anti-interference capability
Wide working voltage range

Technical Features

ARM technology with built-in Linux system for simple, clear operation
Precise viscosity measurement with computer-automated range calibration
Comprehensive display including temperature, shear rate, shear stress, and graphical measurements
Complete functionality with timing measurement, data storage, and real-time viscosity curves
Front level meter for intuitive level adjustment
Optional temperature probe, constant temperature bath, printer, and standard viscosity samples
Chinese and English operating system support

Technical Specifications

Instrument Model	NDJ-5T	NDJ-9T	NDJ-8T
Display Mode	5 inch color touch screen
Speed (r/min)	6 / 12 / 30 / 60	0.3/0.6/1.5/3/6/12/30/60	6 / 12 / 30 / 60
Measuring Range	1～100,000	1～2,000,000	1～100,000
Rotor	1#,2#,3#,4# (The 0# rotor is optional, for measuring ultra-low viscosity below 10)
Measurement Error	±0.5% (Newtonian liquid)	±0.25% (Newtonian liquid)	±0.5% (Newtonian liquid)
Repetitive Error	±0.25% (Newtonian liquid)
Working Power Supply	110V / 60Hz, 220V / 50Hz
Outline Dimension	300 * 300 * 450(mm)
