6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack

Name: 6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
Brand: Xiamen Acey New Energy Technology Co., Ltd
SKU: ACEY-LWM6000Z
Price: 29,900.00 USD
Availability: InStock

Brand Name:	ACEY
Model Number:	ACEY-LWM6000Z
MOQ:	1 Set
Price:	USD 10300~49500/Set
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

1 Year Warranty With Lifetime Support

After-sales Service:

24/7 Technical Support

Laser Output Power:

6000W

Input Power Supply:

AC380V 50/60Hz

Machine Dimension:

L1700*W1280*H2050mm

Machine Weight:

500Kg

Packaging Details:

Plywood Case

Highlight:

6000W CNC aluminum laser welder

industrial battery pack welding machine

automatic prismatic battery laser welder

Product Description

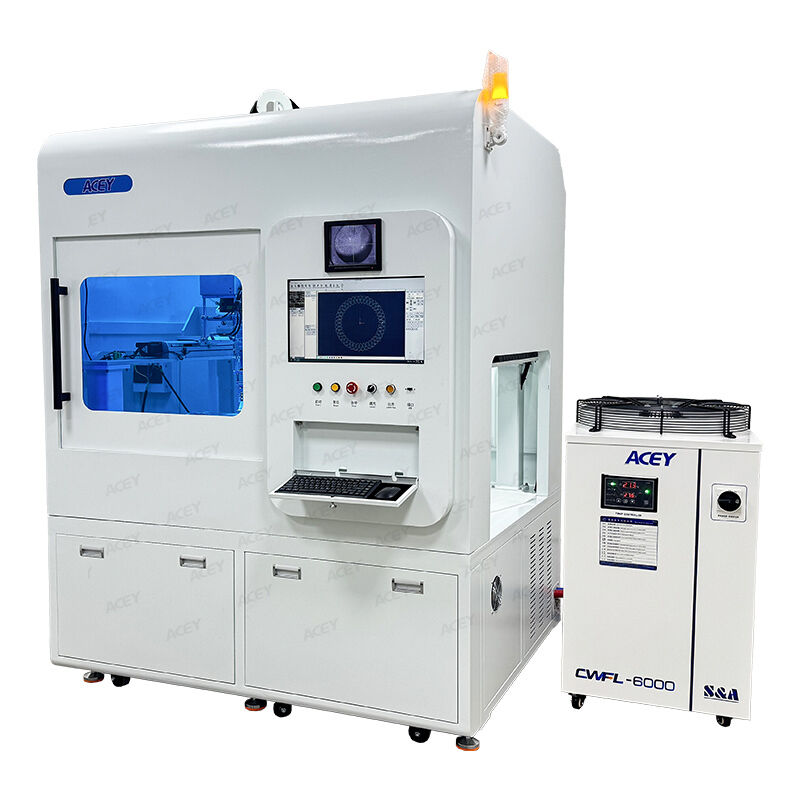

6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack

The ACEY-LWM6000Z 6000W Fiber Laser Welder is a high-performance industrial system engineered for the demanding requirements of prismatic battery pack assembly. While 6000W provides substantial power reserves, this machine is specifically optimized for the high reflectivity and thermal conductivity of aluminum alloys (Al3003, Al1060). It delivers high-speed, consistent welding for battery case sealing and busbar connections (up to 4mm), ensuring structural integrity and low electrical resistance without damaging internal cell components.

Key Features

High-Speed Sealing

For prismatic pack casing, 6000W enables extreme welding speeds, creating a "flash" weld that minimizes total heat input. This prevents electrolyte overheating while ensuring a 100% hermetic seal.

Thick Busbar Penetration

Aluminum busbars require high energy density to overcome thermal dissipation. Our 6000W system effortlessly handles 2.0mm, 3.0mm, and 4.0mm aluminum plates, providing smooth, crack-free weld beads with superior tensile strength.

Overcoming High Reflectivity

Standard lasers struggle with aluminum's reflective surface. Our fiber laser source combined with high-end optics ensures stable beam absorption, eliminating "false welding" or power fluctuations during processing.

Advanced Wobble Technology

The integrated smart-swing welding head enables precise beam oscillation, breaking the oxide layer on aluminum surfaces. This significantly reduces porosity and ensures clean, aesthetic welds without spatter.

Advanced Galvo & Gantry Integration

Equipped with a high-power galvo welding head combined with an XY gantry motion platform, allowing rapid and flexible welding of complex graphic trajectories ideal for multi-cell pack layouts.

6-Axis Motion Control & Automation Ready

Supports up to 6-axis motion control, adapting to diverse automation needs. Designed for seamless integration into fully automated production lines or as a high-efficiency standalone workstation.

Intelligent Monitoring & Easy Positioning

CCD monitoring system provides real-time monitoring of the welding process for easy debugging and quality control.

Technical Specifications

Model	ACEY-LWM1500Z	ACEY-LWM2000Z	ACEY-LWM3000Z	ACEY-LWM4000Z	ACEY-LWM6000Z
Laser Output Power	1500W	2000W	3000W	4000W	6000W
Galvanometer Power	1500W	2000W	3000W	4000W	6000W
CCD	1.3 Megapixel, Anti-Flash
Air Blow Blade	Single layer	Double layer
Cooling Machine	1.5P	2P	3P	4P	6P
X Axis	800mm	1000mm
Y Axis	600mm	800mm
Z Axis	400mm
Repeat Positioning Accuracy	±0.02mm
Fiber Cable Length	10m	15m	20m	20m	20m
Laser Wavelength	1070nm
Output Method	QBH
Cooling Method	Water cooling
Motor	400W servo motor
Working Voltage	AC220V 50/60Hz	AC380V 50/60Hz
Reference Size	LWH=145010502050mm	LWH=170012802050mm
Weight	350KG	450KG

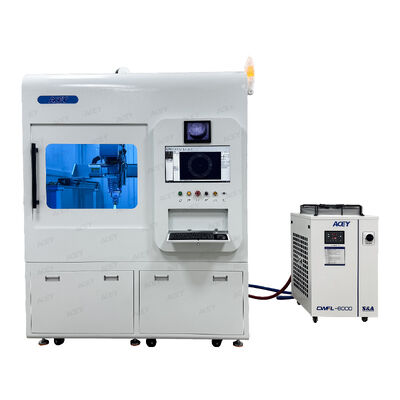

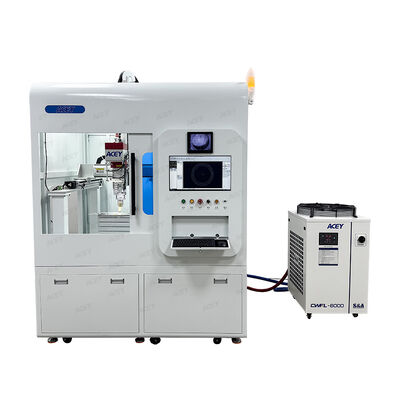

Product Gallery
