Fully Automatic ESS Lithium-ion Battery Pack Assembly Line

Fully Automatic ESS Lithium-ion Battery Pack Assembly Line

Brand Name:	ACEY
Model Number:	ACEY-APAL
MOQ:	1 Set
Price:	USD 50000~400000/Set (negotiable)
Payment Terms:	T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability:	200 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

1 Year Warranty With Lifetime Support

After-sales Service:

24/7 Technical Support

Application:

ESS / EV / Etc

Assembly Line Type:

Fully Automatic

Packaging Details:

Plywood Case

Highlight:

fully automatic battery pack assembly line

lithium-ion battery production line

ESS battery pack manufacturing equipment

Product Description

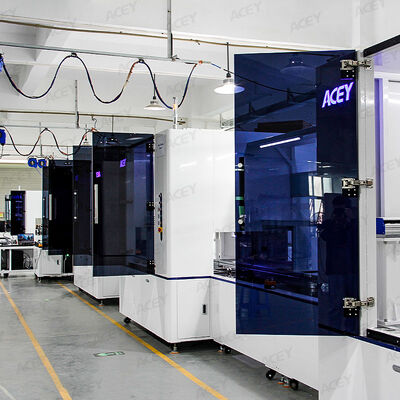

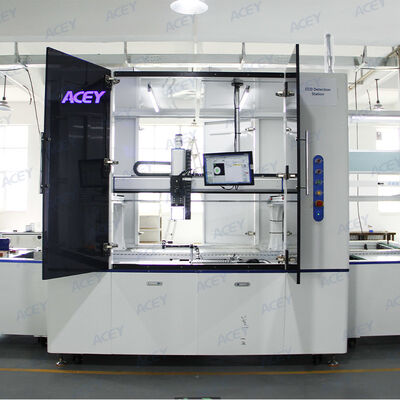

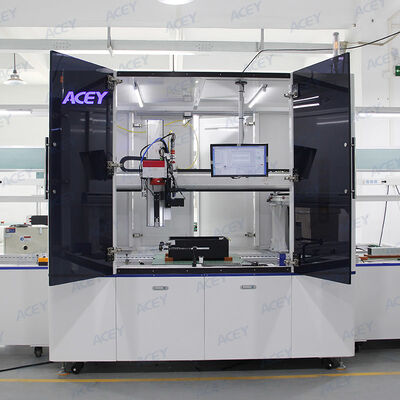

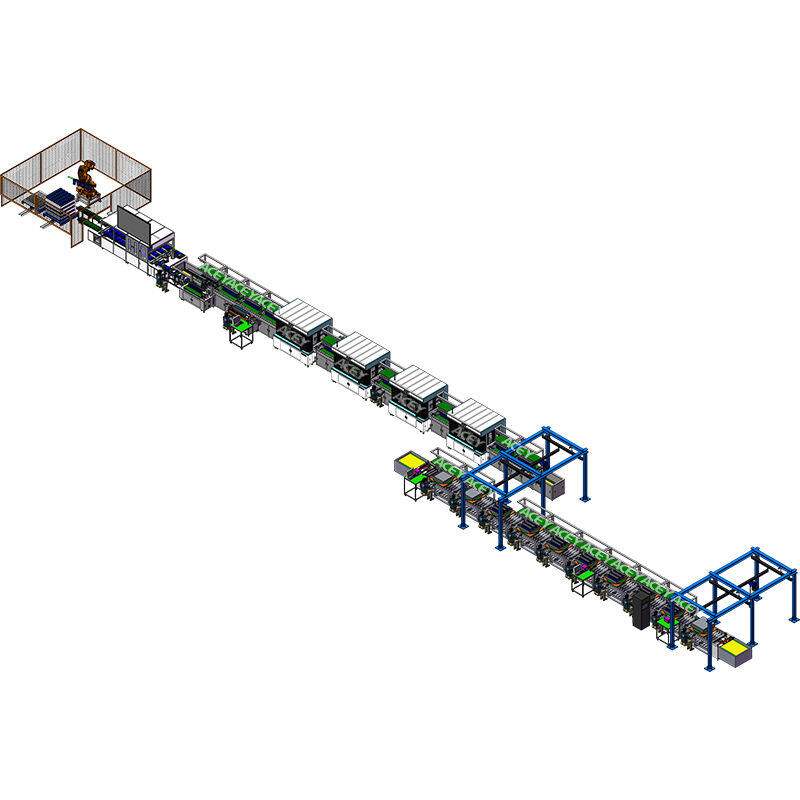

Fully Automatic ESS Lithium-ion Battery Pack Assembly Line

This advanced fully automatic assembly line is specifically engineered for the mass production of 100Ah-314Ah Prismatic Lithium-ion battery packs. It is the ideal turnkey solution for manufacturers in Energy Storage Systems (ESS), Electric Vehicles (EV), Telecommunication Base Stations, and UPS applications. The line integrates cell sorting, laser cleaning, precision stacking, automatic laser welding, and comprehensive EOL testing to ensure maximum efficiency and consistency.

Key Advantages

High Throughput & Efficiency: Cell processing speed reaches 8~12 PPM, significantly reducing labor costs while maintaining high-quality output.
Superior Compatibility: Versatile design supports a wide range of prismatic cell sizes (100Ah-314Ah), allowing for quick changeovers to meet diverse market demands.
Smart Manufacturing (MES Ready): Features integrated data collection at every station with reserved interfaces for seamless MES integration, ensuring 100% product traceability.
Precision Engineering: Utilizes high-end laser cleaning and welding technology to ensure optimal conductivity and structural integrity of busbar connections, with a First Pass Yield (FPY) of 99%.

Main Technical Specifications

Item	Technical Specification	Remarks
Product Type	100Ah - 314Ah Prismatic Lithium Battery	ESS / EV applications
Cell Processing Efficiency	8 ~ 12 PPM	Automatic station speed
Module Output Rate	27 JPH	Depends on number of operators
Equipment Uptime	≥ 95%	Under normal maintenance conditions
Total Line Power	≤ 45 kW	Energy-saving design
Air Pressure	0.5 ~ 0.6 MPa	Dry compressed air
Power Supply	220V / 380V, 50Hz	Customizable
Overall Dimensions	Approx. 42.7m * 5.4m * 2.7m	Adjustable based on workshop
Operators Required	Approx. 2 - 20 persons	Based on specific demands
