| Marchio: | ACEY |
| Numero di modello: | ACEY-MRP100L |
| MOQ: | 1 set |
| Prezzo: | USD 1150~1198/Set |
| Condizioni di pagamento: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Capacità di approvvigionamento: | 500 insiemi/mese |

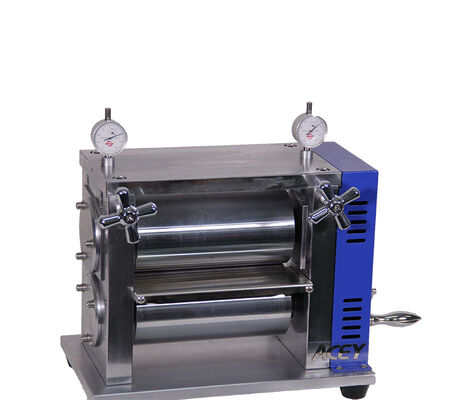

Manual Battery Aluminium Copper Electrode Roller Press Machine
Product Description
ACEY-MRP100L It is mainly suitable for manual rolling of battery materials in the laboratory. It is especially suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials . This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and it is easy to use.
Features
*The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
*Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
*High rolling precision, roller cylindricity≤±2um.
*Vertical design, convenient for feeding and rolling of strip material.
*Adopt gear meshing rotation to realize the roller pressing.
*The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.
*Small size, easy operation, flexible and quick to use.
Specification
| Roller size: | diameter Φ96mmX100mm | ||||||
| Roller cylindricity | ≤±2um. | ||||||
| Roller hardness: | HRC62 | ||||||
| Roller finish: | Ra0.4 or more | ||||||
| Rolling thickness: | 0～2mm, the gap can be adjusted | ||||||
| Roll placement: | vertical placement | ||||||
| Tablet thickness: | speed can be adjusted. | ||||||
| Operation method: | manual | ||||||
| Feeding speed: | 0～40mm/s, depends on the speed of hand crank | ||||||
| Dimensions: | L355mm*W245mm*H355mm | ||||||
| Equipment weight: | 50KG | ||||||
