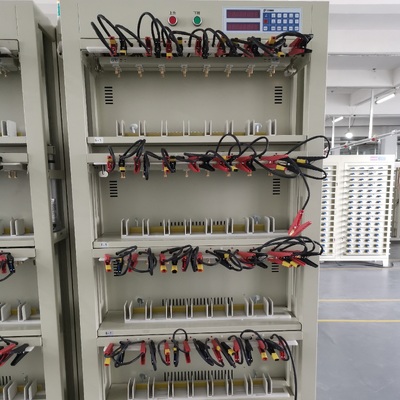

Energy-Feedback 5V 30A Prismatic lithium Ion Cell Grading Machine With Alligator Clips

Energy-Feedback 5V 30A Prismatic Blithium Ion Cell Grading Machine With Alligator Clips

Product Description

ACEY‑BCT530‑160P Lithium Ion Cell Grading Machine is a 160‑channel 5V30A lithium cell formatting, charge‑discharge testing and sorting machine equipped with electric flat‑head automatic clamping fixtures. Each channel supports independent constant‑current constant‑voltage charging and multi‑mode discharging. It adopts bidirectional AC/DC inverter energy feedback technology, delivering over 60% comprehensive power‑saving rate. With 0.05% high‑precision four‑wire measurement, the unit supports barcode scanning, multi‑dimension capacity sorting, automatic Pass‑NG judgement, multi‑format data export and optional MES docking. It is suitable for batch formatting, cycle testing and capacity grading of prismatic lithium cells with specified dimensions.

Product Highlights

1.   Independent‑channel CC‑CV charge‑discharge control for lithium cell formatting and capacity  grading
2.   Bidirectional AC/DC inverter energy feedback for high power‑saving performance
3.   Electric‑driven flat‑head automatic clamping fixture for fast cell loading
4.   Four‑wire measuring technology to guarantee high test precision
5.   Multi‑dimension sorting by capacity, open‑circuit voltage and discharge platform
6.   Barcode & QR‑code scanning to realize full cell data traceability
7.   Multi‑format data export, curve visualization and automatic Pass‑NG judgement
8.   Support TCP / 485 communication and optional MES system interconnection
9.   Comprehensive hardware‑software safety protection with power‑off breakpoint data recovery
10.   Modular hardware structure for simple maintenance

System Features

• Total 160 independent test channels; each channel can set separate charge‑discharge steps, start, stop, pause and protection parameters
• 0.05% high test accuracy, 1‑second optional data sampling cycle for stable data acquisition
• Four‑wire test interface ensures high‑precision voltage and current measurement
• Modular hardware design for convenient inspection and maintenance
• Bidirectional energy feedback function; comprehensive power‑saving rate exceeds 60% to cut factory electricity expenditure

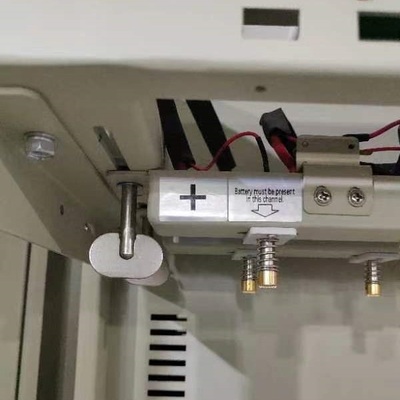

• Electric‑driven flat‑head automatic clamping fixture; crocodile clamp is available as optional selection
• Rich multi‑layer safety protection: over‑voltage, under‑voltage, over‑current, under‑current, over‑capacity, power‑off protection and data breakpoint recovery
• Powerful software: supports up to 32 process steps and 256 test cycles; realizes multi‑dimension cell sorting, automatic Pass‑NG judgement, barcode scanning, data curve display and Excel / Word / MDB format data export
• Supports 485 / TCP communication and optional MES system docking for smart factory data interconnection

Main Technical Parameter

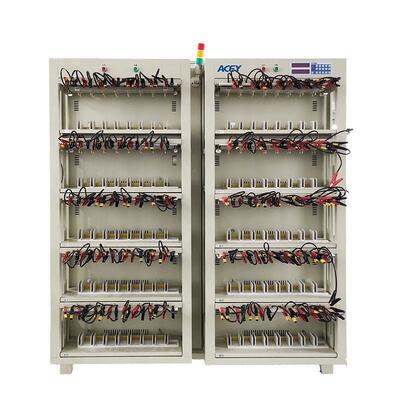

Product Display

FAQ

Q1: What is the energy‑saving advantage of this lithium cell sorting machine?

A1: ACEY‑BCT530‑160P Lithium Ion Cell Grading Machine uses bidirectional AC/DC inverter module. Discharge energy from lithium cells is fed back directly to the factory AC power grid. Its comprehensive power‑saving rate reaches more than 60%, which can greatly reduce power consumption for mass lithium‑ion cell formatting and capacity grading production.

Q2: Can each of the 160 channels run independent charge‑discharge test parameters?

A2: Yes. Every channel is equipped with independent constant‑current constant‑voltage hardware circuit. Operators can set separate process steps, start‑stop, pause and protection parameters for each channel. Channels work independently without mutual interference, and current parameters can be automatically calibrated via software.

Q3: What sorting and data traceability functions does this lithium cell sorting machine provide?

A3: ACEY‑BCT530‑160P Lithium Ion Cell Grading Machine supports cell sorting based on capacity, open‑circuit voltage, discharge platform and other parameters, as well as automatic Pass‑NG judgement after testing. It supports 1D & 2D barcode scanning, stores real‑time and historical test data, exports data in Excel, Word, MDB formats, and supports MES docking to achieve full‑process data traceability for lithium cells.
