| Brand Name: | ACEY |
| Model Number: | ACEY-BCT560-64P |
| MOQ: | 1 Set |
| Price: | USD 6600~15960/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union |
| Supply Ability: | 200 Sets/Month |

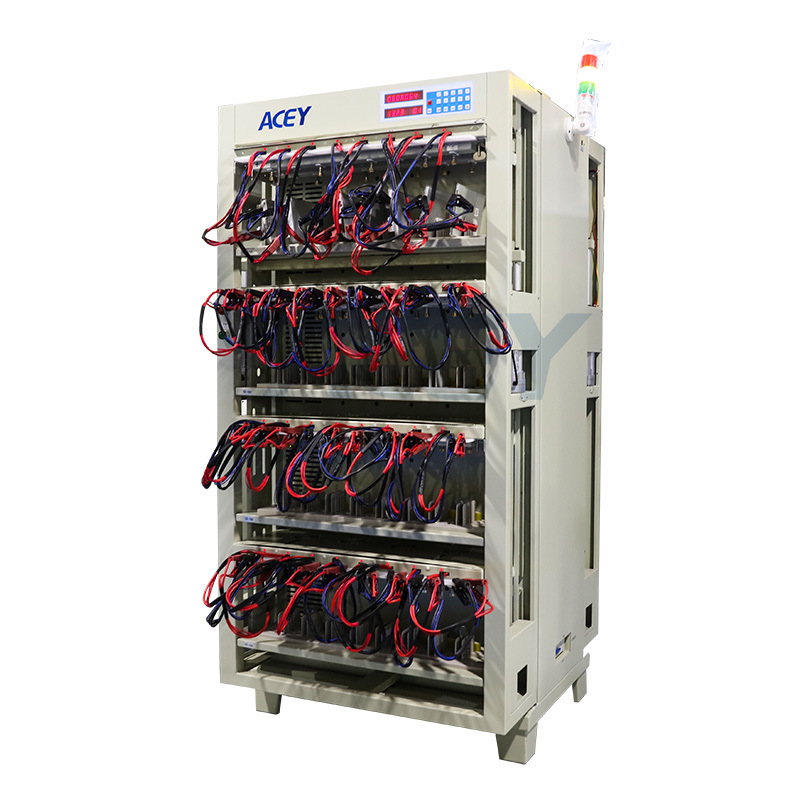

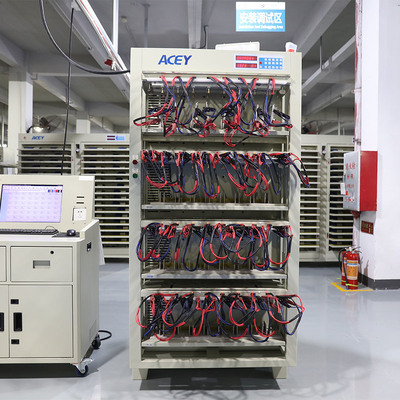

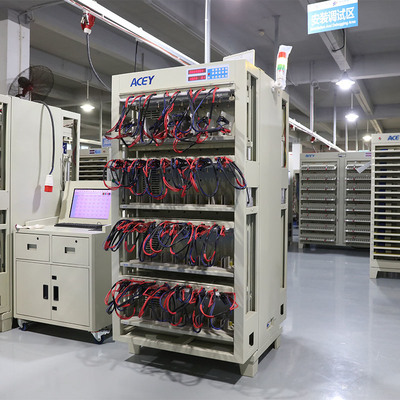

The ACEY-BCT560-64P is a high-current prismatic battery capacity tester engineered for lithium battery charge and discharge testing, capacity grading, performance evaluation, and cycle life testing. With 64 independently controlled channels and maximum charging/discharging current of 60A per channel, this system is ideal for production lines, battery laboratories, and quality control applications.
The tester supports constant-current, constant-voltage and CC/CV charging modes, as well as constant-current, constant-power and constant-resistance discharge modes. Each channel can operate independently, allowing different test programs to be assigned to individual prismatic battery cells.
| Parameter | Range |
|---|---|
| Length | 80-300 mm |
| Thickness | 15-75 mm |
| Height | 80-230 mm |
| Terminal spacing | 50-250 mm |
| Parameter | Specification |
|---|---|
| Number of channels | 64 channels |
| External dimensions | 968 × 901 × 1840 mm (customizable) |
| Case color | Standard gray/black (customizable) |
| Clamp type | Flat head clamp + Alligator clips |
| Working power supply | Three phase five wire AC380V±10%, 50Hz |
| Power consumption | ≤ 23KW |
| Work environment | Temperature -10~40°C, Relative humidity 80% |
| Heat dissipation | Natural wind in, upward exhaust |
| Voltage measurement range | DC 0~5V |
| Battery voltage range | Charge DC 0~4.5V; Discharge DC 4.5~2V |
| Voltage accuracy | ±(0.05% reading + 0.05% full), resolution 1mV |
| Current range | Charge/Discharge DC 120mA～60A |
| Current accuracy | ±(0.05% reading + 0.05% full) |
| Control mode | Computer control with scanning function |
| Communication mode | 485 port communication (57600 baud)/ TCP |
