| Brand Name: | ACEY |
| Model Number: | ACEY-D300B |
| MOQ: | 1 Set |
| Price: | USD 2160~15900/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

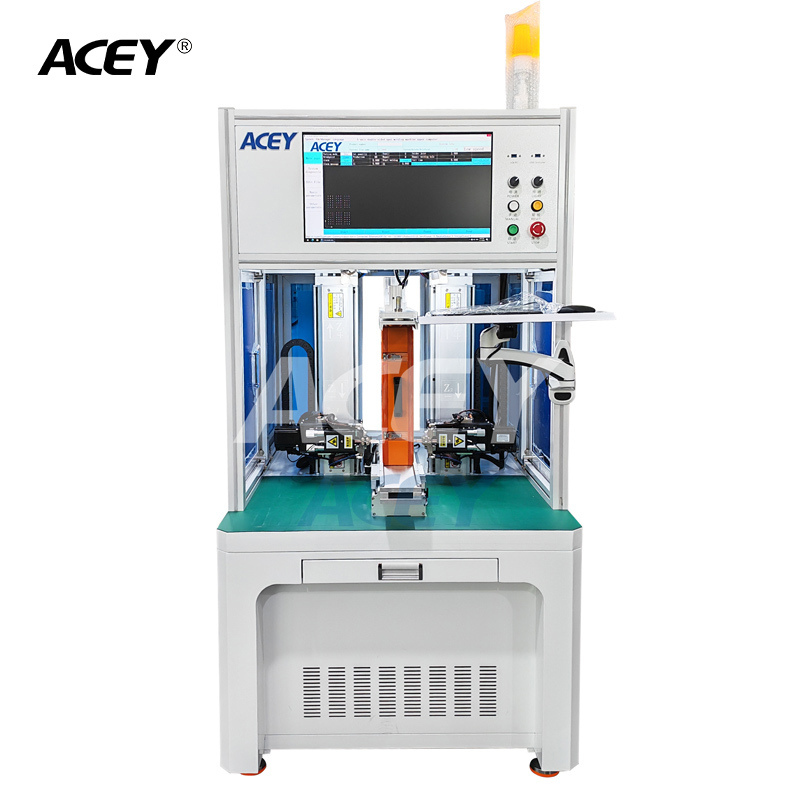

Built upon an industrial-grade modular intelligent control architecture, the ACEY-D300B automatic double-sided spot welding machine integrates an industrial PC, motion controller, high-precision servo drives, and precision linear guide modules. This configuration ensures exceptional accuracy, remarkable flexibility, and rapid responsiveness.
When compared to conventional PLC-plus-HMI systems, the machine demonstrates clear advantages in generating production reports, enabling equipment networking and online integration, facilitating rapid model changeovers, and streamlining process parameter tuning. With broad compatibility for cylindrical lithium cells across multiple formats including 14500, 18650, 21700, 26650, 32700, and 33140.
| Applicable Cell Types | Cylindrical lithium cells: 14500 / 18650 / 21700 / 26650 / 32700 / 33140 |
|---|---|
| Compatible Module Size | X: 0-500 mm / Y: 0-400 mm / Z: 50-140 mm |
| Control Method | Motion controller |
| Operation & Functions | Easy operation; weld point tracking; spatter, false weld, weak weld, and missing weld monitoring, recording, and alarm. |
| Welding Current | 10000A |
| Welding Type | Transistor |
| Cooling Method | Forced air cooling |
| Operating Temperature | -30°C to 50°C |
| Operating Humidity | ≤ 90% RH |
| Air Supply Pressure | 0.4-0.6 MPa |
| Power Supply | AC 220V, 50Hz / 60Hz |
| Floor Load Capacity | ≤ 200 kg/m² |
| Grounding Type | Direct grounding |
| Site Requirements | Clean environment, no strong electromagnetic interference |
| Installation Conditions | Flat surface, no vibration or impact |
| Noise Level | ≤ 80 dB |
| Machine Dimensions (L×W×H) | Approx. 1150 × 900 × 1720 mm (subject to actual machine) |
| Machine Weight | Approx. 360 kg |
| Machine Color | Computer white (customizable) |
| Total Power Consumption | ≤ 1.5 kW |
