| Brand Name: | ACEY |
| Model Number: | ACEY-8000T |
| MOQ: | 1 Set |
| Price: | USD 2160~4750/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

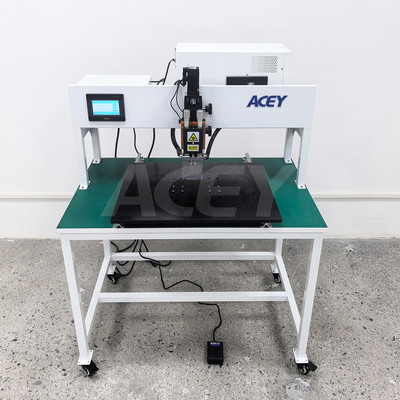

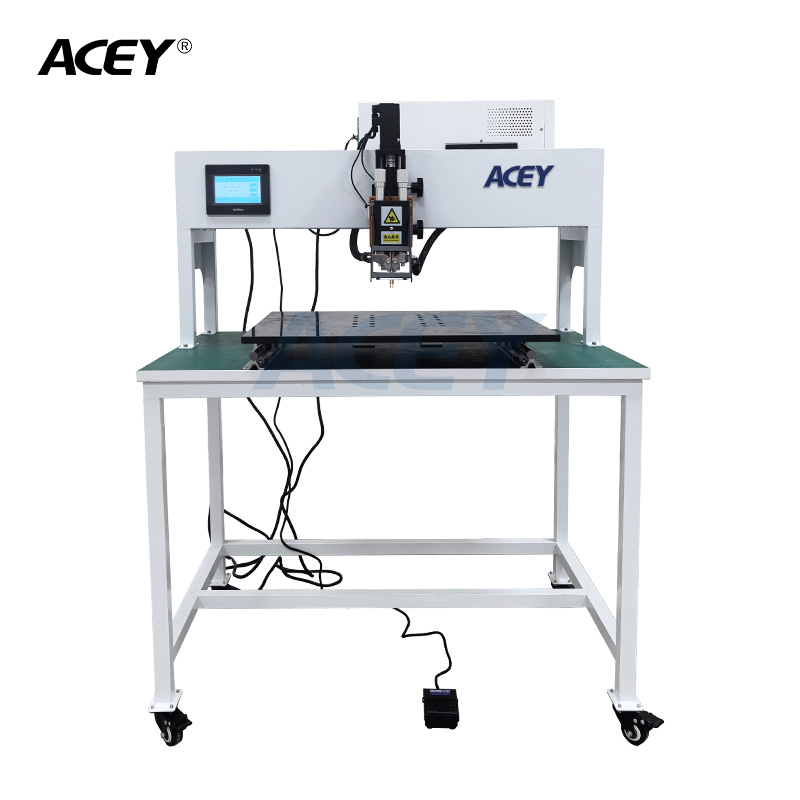

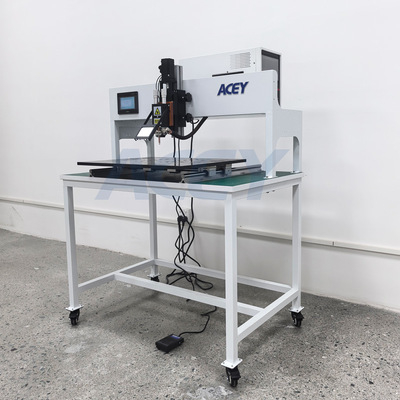

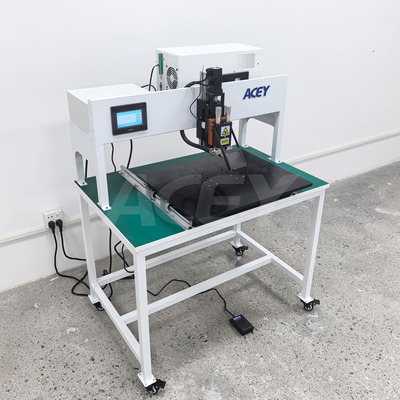

The ACEY-8000T Gantry-Type Battery Spot Welding Machine is designed for welding cylindrical and polymer battery cells to nickel-plated steel strips or pure nickel strips during battery pack assembly. It supports series and parallel configurations of various cell formats including 18650, 21700, 26650, 32650, 32700, 32140, and 33140.
This machine is widely applied in power tool batteries, energy storage battery packs, e-bike batteries, solar street light batteries, consumer lithium batteries, and various industrial applications.
| Parameter | Specification |
|---|---|
| Ambient Temperature | -30°C to 50°C |
| Relative Humidity | ≤ 90% |
| Air Supply Pressure | 0.4-0.6 MPa (pneumatic type only) |
| Power Supply | 220V or 380V, 50Hz / 60Hz |
| Floor Load Capacity | ≤ 200 kg/m² |
| Grounding Type | Direct grounding |
| Site Requirements | Clean environment, free of strong electromagnetic interference |
| Installation Conditions | Level surface, no vibration or impact |
| Noise Level | ≤ 80 dB |
| Overall Dimensions (L × W × H) | Approx. 900 × 650 × 1220 mm (subject to actual machine) |
| Machine Weight | Approx. 59 kg |
| Appearance Color | Computer white (customizable on request) |
| Parameter | Specification |
|---|---|
| Communication Interface | RS485 |
| External Touch Screen | Optional external 7-inch touch screen (DMT80480T070-18WT) |
| External Control Function | Can be controlled by external industrial computer/PLC for automated production |
| Dimensions | L430mm × W185mm × H400mm |
| Weight | 25kg |
| Working Voltage | Single phase AC220V±10% 50Hz |
| Output Voltage | 1-6V DC |
| Output Current / Maximum Short-circuit Current | 8000A |
| Cooling Method | Forced air cooling |
| Valve Power Supply | DC 24V±10% current <150mA |
| Environment Temperature | -10℃~55℃ |
| Relative Humidity | Below 80% |
