| Brand Name: | ACEY |
| Model Number: | ACEY-SP1200 |
| MOQ: | 1 Set |
| Price: | USD 7500~8300Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 200 Sets/Month |

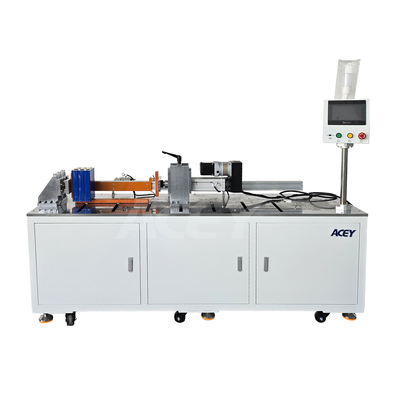

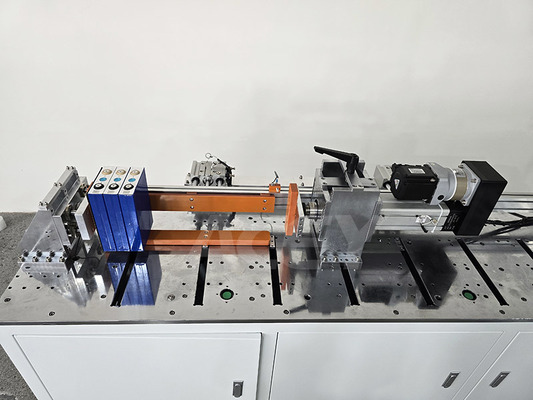

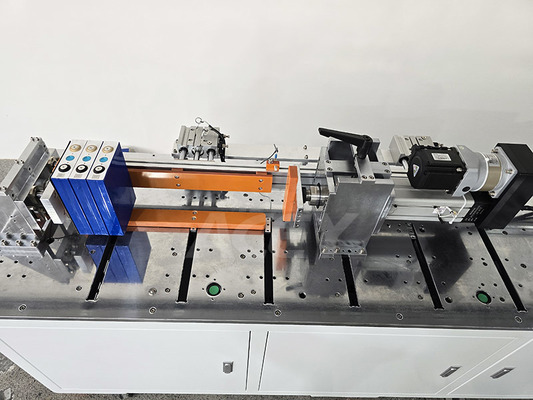

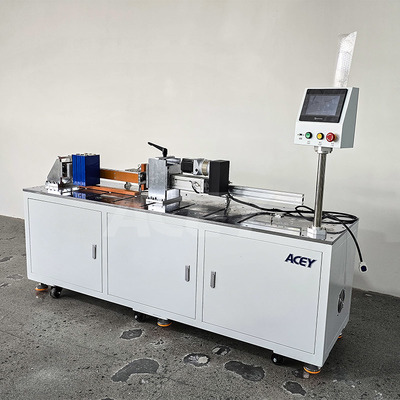

Designed specifically for prismatic lithium battery cells, the ACEY-SP1200 stacking and extruding machine performs comprehensive stacking, shape pressing, and bundling operations. The system is driven by a servo motor, screw module, and planetary reducer, with precise process control governed by an advanced pressure controller.
With an extrusion stacking thrust exceeding 500 kg, the machine maintains exceptional ease of operation while enabling real-time adjustment of stacking stroke and pressure. Triple protection features—software limits, hardware limits, and pressure limits—prevent over-extrusion and ensure high precision controllability throughout the extrusion process.
| Equipment Efficiency | 50 groups/hour (10PCS battery cells) |
|---|---|
| Equipment Grafting Rate | ≥98% |
| Extrusion Stroke | 1200mm |
| Adaptable Size Range | L: 50~250mm; W: 20~100mm; H: 100~300mm |
| Stacking Maximum Pressure | 500KG |
| Pressure Control Error | 0.1KG |
| Control System | PLC + touch screen |
| Input Power Consumption | 1KW |
| Input Power Supply | AC220V/50HZ |
| Compressed Air Source | None |
| Touch Screen | 7-inch touch screen |
| Equipment Reference Size | L*W*H=2370*500*1400mm |
| Weight | 400KG |
