Battery Pack Spot Welder
Created with Pixso.

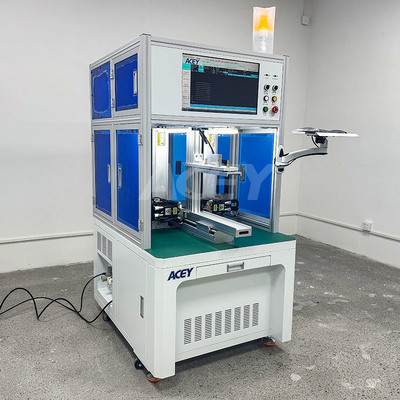

High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing

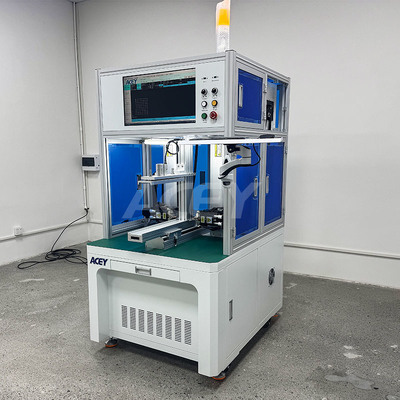

High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing

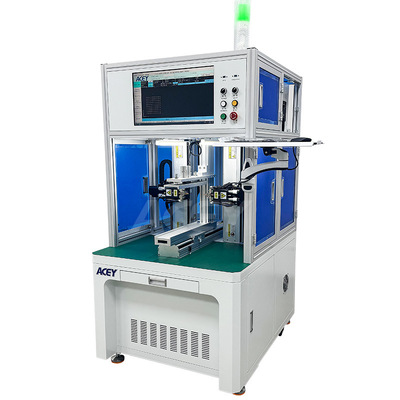

High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing

Brand Name: ACEY
Model Number: ACEY-D300B
MOQ: 1 Set
Price: USD 2160~12100/Set (negotiable)
Payment Terms: T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability: 200 Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Warranty:
1year
After-sales Service:
24/7 Technical Support
Y-axis Travel:
500 Mm
Z-axis Travel:
400 Mm
Welding Power Supply:
5000A/8000A/10000A
Machine Weight:
200 KG
Machine Dimensions:
1150mm (L) * 900mm (W) * 1850mm (H)
Packaging Details:
Plywood Case
Product Description
High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing
The ACEY-D300B is an automatic double-sided spot welding machine featuring an industrial modular control system with computer, motion controller, high-precision servo motors, and precision modules. This advanced configuration ensures exceptional accuracy, operational flexibility, and rapid performance. The system supports seamless AutoCAD welding data import with automatic electrode position deviation compensation, real-time production monitoring, and comprehensive defect detection.
Key Features
  • Oversized HD Control Hub: 21.5" touch-sensitive display provides comprehensive production metrics and system status overview
  • Smart Design Integration: Direct AutoCAD data synchronization enables complex welding path uploads without manual coding
  • Dynamic Pressure Control: Electric servo head applies soft-touch pressure to prevent cell deformation while increasing welding frequency
  • High-Volume Data Storage: Stores and recalls up to 999 unique project files for diverse battery pack geometries
  • Enhanced Durability: Premium imported core modules (Japan and Taiwan) maximize uptime and minimize maintenance
  • Adaptive Welding Modes: Supports single, double, and triple-point welding with customizable pitch settings
  • Safety & Quality Assurance: Instant alarms for welding anomalies ensure only defect-free packs leave the station
  • Zero-Damage Technology: Engineered to protect battery integrity through controlled, flexible pressure application
Technical Specifications
Specification Value
Y-axis travel 500 mm
Z-axis travel 400 mm
Maximum spot welding speed 0.35 s/point; 5000 pcs/h (servo welding head)
Maximum motor drive speed 1000 mm/s
Maximum number of battery cells loaded 432 pcs (standard 18650 lithium-ion battery cells)
Number of storable program groups 999 groups
Operating system Embedded motion control card + PC system
Transmission method Servo motor + imported precision ball screw linear guide
Equipment power supply Single-phase ~220V±10%/50Hz±10%
Equipment air pressure 0.3～0.4 Mpa
Equipment weight 200 KG
Dimensions 1150mm (L) * 900mm (W) * 1850mm (H)
Environmental Requirements
  • Ambient Temperature: -30°C to 50°C
  • Operating Humidity: ≤90% RH (non-condensing)
  • Pneumatic Supply: 0.4-0.6 MPa (Air pressure)
  • Power Supply: Single-phase 220V, 50Hz/60Hz
  • Floor Loading Capacity: ≤200 kg/m²
  • Earthing System: Direct grounding type
  • Site Environment: Must be free from pollution and strong electromagnetic interference
  • Installation Conditions: Level flooring, free from vibrations and mechanical impact
  • Noise Emission Level: ≤80 dB
Product Display
High-Speed Automatic Double-Sided Battery Spot Welding Machine ACEY-D300B
