| Brand Name: | ACEY |
| Model Number: | ACEY-HDC-1 |
| MOQ: | 1 Set |
| Price: | USD 1970~2053/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 500 Sets/Month |

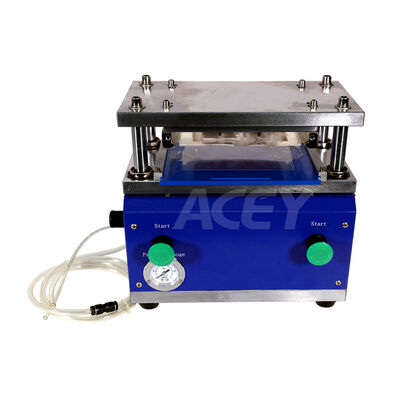

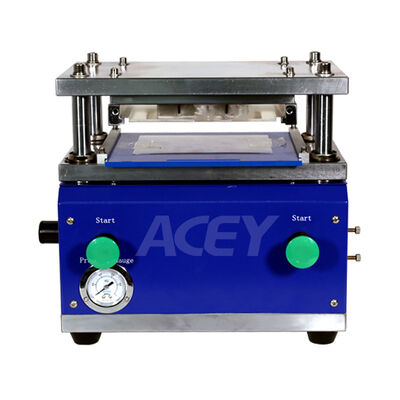

Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Product Description
ACEY-PDC-1 die cutting machine is suitable for die-cutting and forming of battery positive and negative plates. The single-piece die-cutting of the plate-type pole piece is pneumatically used, and it can be placed in a glove box for use.
Features
*Slice-type pole piece feeding, the knife template realizes die cutting, can be used in the glove box;
*It is convenient and quick to change the knife mold;
* Long tool life, normal use ≥ 30,000 times;
* There are no quality defects such as burrs, powder falling, and indentation;
*Using four guide pillar structure, sliding up and down smoothly and high precision;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Easy to operate, safe and reliable, small size;
*Vertical burr≤12μm, horizontal burr≤20μm
*Long tool life, normal use ≥ 30,000 times;
Specification
| Punching size: | L85mmxW65mm (can be customized according to customer requirements); | ||||||
| Punching accuracy: | ±0.1 mm | ||||||
| Punching pressure: | Max. 1T (0.5MPa compressed air), the recommended pressure for punching battery pole pieces is 500Kg; | ||||||
| Die cutting stroke: | 35mm; | ||||||
| Compressed air: | 0.5MPa compressed air, if put in the glove box, the gas used is the same as the glove box; | ||||||
| Dimensions: | L350mm*W230mm*H300mm; | ||||||
| Equipment weight: | 32kg | ||||||
