| Brand Name: | ACEY |
| Model Number: | ACEY-WM-P |
| MOQ: | 1 Set |
| Price: | USD 1380~1438/Set |
| Payment Terms: | T/T,PayPal,L/C,Western Union,MoneyGram |
| Supply Ability: | 500 Sets/Month |

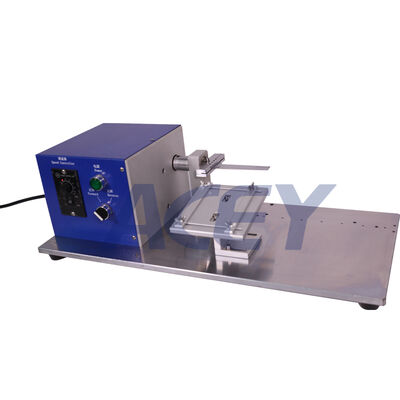

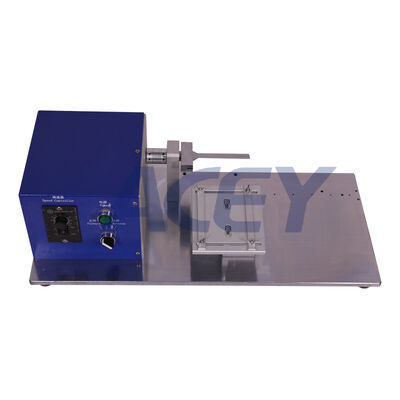

Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Description
ACEY-WM-P is suitable for winding of super capacitors, soft-packaged lithium battery pole pieces, and winding the positive and negative electrodes and separators into batteries.
Features
*The up and down, left and right, front and rear positions of the guide pole piece groove and ruler can be adjusted;
* Winding idler, to ensure the winding tightness of the battery when winding;
* Increase the winding tail bracket to improve the winding accuracy of the battery;
* Winding can be forward and reverse, winding stepless speed regulation;
*The machine is small in size, exquisite and beautiful in appearance, and easy to operate
Specification
| Power supply | 220V/50Hz; | ||||||
| Power | 25W～40W | ||||||
| Speed | 0～170 rpm adjustable | ||||||
| Applicable flat battery cell size mm | length (20～100) X width (20～80) X thickness (MAX30) according to customer selection. | ||||||
| Applicable cylindrical batteries | within Φ35*L90mm (replacement of winding flat batteries and cylindrical batteries requires replacement of winding needles) | ||||||
| winding needle | Φ3mm | ||||||
| Equipment size | L550mm*310mm*280mm; | ||||||
| Equipment weight | 25Kg | ||||||
| Structural material | high-strength chrome steel, the surface will never rust after environmental protection plating and spraying treatment. | ||||||
Product Display
